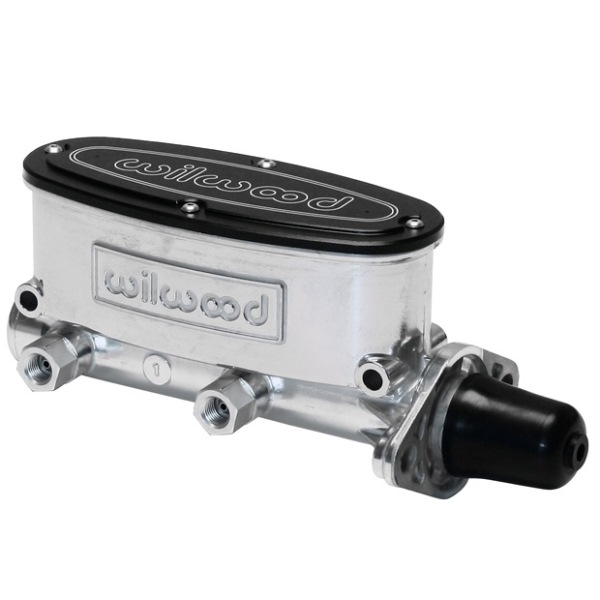

Wilwood Aluminum Tandem Master Cylinder, 1" Bore, Media Burnished SKU: 260-8555-P

Wilwood Aluminum Tandem Master Cylinder, 1" Bore, Media Burnished

Wilwood Aluminum Tandem Master Cylinder, 1" Bore, Media Burnished

Wilwood Aluminum Tandem Master Cylinder 1" Bore Media Burnished
Purchase Wilwood Aluminum Tandem Master Cylinder, 1" Bore, Media Burnished
$277.14 SKU: 260-8555-P
1 Reviews

Product Overview:

Wilwood's Tandem Aluminum Master Cylinder is available in 3 bore sizes, 7/8" , 1" and 1.125"; and 3 finishes, plain, ball burnished and black e-coat. The 1" bore master cylinder can be used in manual and power assisted applications and does not come with a pushrod. The 1.125" bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems.

They're both designed for mount flanges from 3.22" to 3.40", common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers.

Machined from high-pressure die castings, each master cylinder weighs only 3 lbs, a 75% weight savings over most cast iron OE type master cylinders.

Full description

Wilwood's Tandem Aluminum Master Cylinder is available in 3 bore sizes, 7/8" , 1" and 1.125"; and 3 finishes, plain, ball burnished and black e-coat. The 1" bore master cylinder can be used in manual and power assisted applications and does not come with a pushrod. The 1.125" bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems.

They're both designed for mount flanges from 3.22" to 3.40", common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers.

Machined from high-pressure die castings, each master cylinder weighs only 3 lbs, a 75% weight savings over most cast iron OE type master cylinders.

Wilwood's Tandem Aluminum Master Cylinder is available in 3 bore sizes, 7/8" , 1" and 1.125"; and 3 finishes, plain, ball burnished and black e-coat. The 1" bore master cylinder can be used in manual and power assisted applications and does not come with a pushrod. The 1.125" bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems.

They're both designed for mount flanges from 3.22" to 3.40", common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers.

Machined from high-pressure die castings, each master cylinder weighs only 3 lbs, a 75% weight savings over most cast iron OE type master cylinders.
pdf-file

Instruction 1

Review Wilwood Aluminum Tandem Master Cylinder, 1" Bore, Media Burnished

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


PRODUCT REVIEWS
Adamorg
Reviewed 07/03/2016
I bought this as a direct replacement for my factory stock master cylinder in my 1968 Bronco to accompany my new disc brakes. I am running this in a non-power-brake setup. There is even a bleeding kit included as well as superb instructions from Wilwood. As a added benefit, I did not have to alter the length of the pushrod on my brake pedal for this master cylinder and the finish is beautiful.
