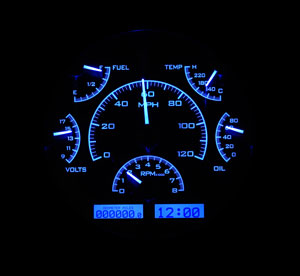

Dakota Digital Dash VHX Black Alloy/Blue 66-77 Bronco / 61-66 Pickup

Item #: 5981NET
NOTE: You will need to use your original bezel. Bezel shown is not included.

Price:

Description

The new VHX Systems fit directly into the stock instrument bezel of a 1966-77 Ford Bronco without modification.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Displays included with this instrument system:
  • Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
  • Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
  • Oil Pressure: 0-80psi analog and digitally.
  • Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
  • Voltmeter: 0-17VDC analog and digitally.
  • Fuel Level: Empty- Full analog. 0-99% digitally in message center.
      Also shown in the digital message center:
    • Odometer
    • Trip Odometer (A&B)
    • Resettable Service Odometer
    • Clock
    • Hour-meter
    • 0-60 MPH (0-100 KPH) timer
    • ¼ mile timer
    • ¼ mile speed display
    • High Speed recall
    • High RPM recall
Various Indicators can also be displayed such as:
  • Turn Signals
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • 4x4 (when equipped) displayed in message center.
  • Wait to Start (when equipped) displayed in message center.
* Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear.
* Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 (sold separately) sending unit.
* Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
* Metric conversions will cycle between MPH or KPH in the digital message center with the press of a button. Full metric analog instrument systems (KPH & Celsius) are not currently available.
* Necessary sensors included for oil pressure (1/8" NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2" NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
* Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
* Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
* Built-in illumination is activated as headlights/ parking lights are activated. The DIM-1 can be purchased from Dakota Digital to increase or decrease the brightness of the display. The DIM-1 is used in conjunction with your headlight switch.
* Fully adjustable warning points alert the user of potential vehicle problems in the digital message center
* One-time user settable odometer. This is available only within the first 100 miles of operation. Once exceeded, the mileage can be reset by Dakota Digital at a charge of $20.

Watch the Video!
Choose Dakota Digital Options

* Selection is required to add Dakota Digital to your cart. Please make a gauge cluster bezel selection. If you have a stock bezel you can use it. If you do not have a stock bezel you should choose one of the options below.
