American Autowire Severe Duty Universal Harness Kit

FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.

NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.


If you're looking for a custom, and truly customizable wiring harness for your vehicle, this is it. If you need the ultimate in weatherproof fuse panels for your trail rig, or just want to make sure your wiring harness continues working like new as long as you own your rig, this is the one that can do it. For those who either have very customized vehicles, who work on and continue to customize their car or truck, or who just want to change the way the factory originally wired it, you can do it easiest and best with this harness. Easily as serviceable and as future-proof as they get. The new Severe Duty Universal full vehicle wiring kit from American Autowire is a powerful, weatherproof electrical system designed for use in rugged environments. The main fuse box can can be mounted literally anywhere you want on most vehicles, including under the hood or in an area otherwise exposed to the elements where you would never consider mounting other fuse boxes. It's 24 circuit box uses fully sealed connectors to the external wiring that let you route each wire, or wire bundle in the cleanest or most efficient way possible. Whether you have a hot-rod you're trying to clean up the wiring on, or an old Bronco that you just need durability and the ability to route the longer wires to be more out of harm's way. It features an all new compact fully sealed 24 circuit fuse box with electronic flasher and 35 amp relay. The fuse box is protected by our new sealed manually resettable 200 amp circuit breaker for maximum reliability in harsh outdoor environments.

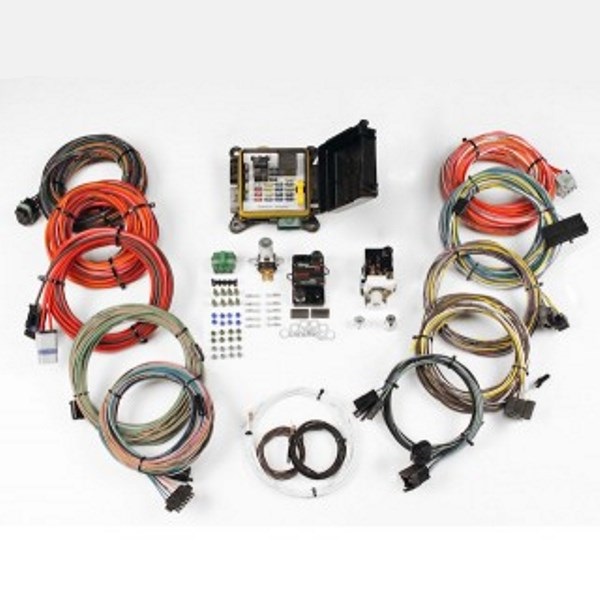

    The kit includes:
  • All new fully sealed 24 circuit fuse box with circuitry that is proprietary to American Autowire is rated at 200 amps.
  • Features 8 optional accessory circuits.
  • Electronic Flasher for use with LED turn signals.
  • New 200 amp sealed manually resettable circuit breaker offers complete system protection, as well as providing the ability to shut the power to the system off in the event that repairs are necessary.
  • Main harness come pre-terminated at one end in fully sealed connectors with over 200" of tough heat resistant GXL wire with the primary functions printed every 2" for easy installation and diagnoses.
  • Power harness comes pre-terminated at one end in fully sealed connectors with over 100" of tough heat resistant GXL wire.
  • The accessory kit includes a sealed connector that plugs into the fuse box in the optional outlet. It includes seals and terminals with 4x400" of 18, 16, 14, and 12 gauge wire in different colors for all of your additional power requirements.
  • Instrument Cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. The system will also connect into most popular aftermarket gauges such as DAKOTA DIGITAL, CLASSIC INSTRUMENTS, AUTOMETER, VDO, and others.
  • Subkits for connecting turn signals, headlights, tail lights, parking lights, brake lights, gauges, third brake light, license plate light, and basic engine functions and sensors included. All subkits are pre-terminated at one end and provide long lengths of tough heat resistant GXL wire with the function of each wire printed every 2".
  • A 30 amp headlight switch and dimmer switch are provided for your convenience. Connections for these switches come pre-terminated to make installation faster if you choose to use these switches.
  • Engine wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, transfer case warning lamp, under hood lamp, transmission kickdown, and electric speedometer (if needed).
  • Front lighting includes extra long leads. All head light, parking light, directional light, and side marker light leads, along with horn.

Watch the Video!
American Autowire Severe Duty Universal Harness Kit
Item #: 6141W

California Residents: Proposition 65 Warning


Severe Duty Universal Wiring System

Product Reviews

Write a review

American Autowire Severe Duty wire harness
Jun 24, 2017  |  By Rob Coke
Review star icon Review star icon Review star icon Review star icon Review star icon
The American Autowire Severe Duty wire harness is a complete, high quality rig!!! Thanks WildHorses4x4!!!
