Early Bronco NP435 4-Speed Manual Transmission

---

Early Bronco NP435 4-Speed Transmission Swap

For 1966-77 Ford Bronco owners looking for a rugged and proven drivetrain upgrade, the NP435 4-speed manual transmission is one of the most popular swaps for the Early Bronco. Known for its strength and legendary granny low gear, the NP435 transforms the Bronco into a serious crawler while maintaining excellent on-road durability. Whether you’re building a trail rig or simply want a transmission that can handle abuse, this heavy-duty 4-speed is a classic choice.

---

Why Choose the NP435?

The New Process NP435 was designed as a truck transmission and used widely across Ford and Dodge models from the 1960s through the early 1990s. Its widespread use means parts are easy to find, donor transmissions are relatively inexpensive, and aftermarket support remains strong today.

Key benefits of the NP435 in a Bronco swap include:

• Granny Low First Gear – With a gear ratio of 6.69:1, the NP435 provides excellent low-speed control for rock crawling and technical off-road driving.

• Strength and Durability – Built for 1/2-ton through 1-ton trucks, the NP435 was engineered to take heavy loads and punishment.

• Compact Size – While not as short as the stock 3-speed, the NP435 is relatively compact compared to other truck transmissions, making it a practical swap into the early Bronco.

• Affordable and Accessible – Found in trucks from the mid-60s to early 90s, NP435 transmissions are widely available in junkyards, swap meets, and classifieds.

---

A Workhorse by Design

Produced by New Process Gear from 1962 through 1997, the NP435 is legendary for its no-nonsense, cast-iron construction. It was the transmission of choice for farmers, contractors, and off-roaders who needed reliability above all else. In the Bronco world, this translates to a drivetrain upgrade that matches the rugged character of the truck itself.

For crawling through rocks, pulling out stumps, or creeping down steep descents, the NP435’s gearing gives you precise control. At the same time, second through fourth gears remain usable for street and highway driving, keeping the Bronco versatile.

---

The Best NP435 for Early Bronco Swaps

Not every NP435 is ideal for swapping into a classic Bronco. The preferred versions are those used in Ford trucks from 1966 through 1992. When sourcing your transmission, look for these key features:

• Small Block Ford Bellhousing Pattern – Ensures easy mating to your Bronco’s 289, 302, or 351W engine.

• Square Tailhousing Bolt Pattern – Matches up with adapter kits for Dana 20 transfer cases.

• 28-Spline Output Shaft – The correct shaft size for adapting to the stock Bronco transfer case.

Dodge versions and some later Ford variants may require additional modifications, so starting with the right transmission saves time and effort.

---

Considerations and Installation

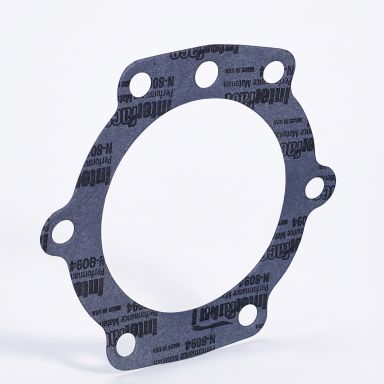

Swapping in an NP435 is not a purely bolt-in affair, but with the right parts it’s straightforward. You’ll need an adapter kit to mate the NP435 to the stock Dana 20 transfer case, along with modifications to the transmission crossmember and driveshaft lengths. The stock clutch linkage can be retained, and shifter placement ends up in a comfortable position in the Bronco’s cabin.

For many enthusiasts, the effort is well worth it. The NP435 delivers a combination of low gearing, reliability, and availability that few other transmissions can match. It’s an upgrade that allows the early Bronco to punch far above its weight both on the trail and in daily use.

---

Final Thoughts

For Bronco enthusiasts who want a transmission that can take abuse, provide control on the rocks, and stay true to the rugged spirit of the truck, the NP435 is a time-tested choice. It’s strong, relatively short, and widely available, making it a workhorse transmission that perfectly suits the 1966-77 Ford Bronco.
