Manual Fuel Tank Selector Valve | 66-77 Ford Bronco SKU: 9725

Early Bronco Manual Fuel Tank Selector Valve | 1966–77 Ford Bronco

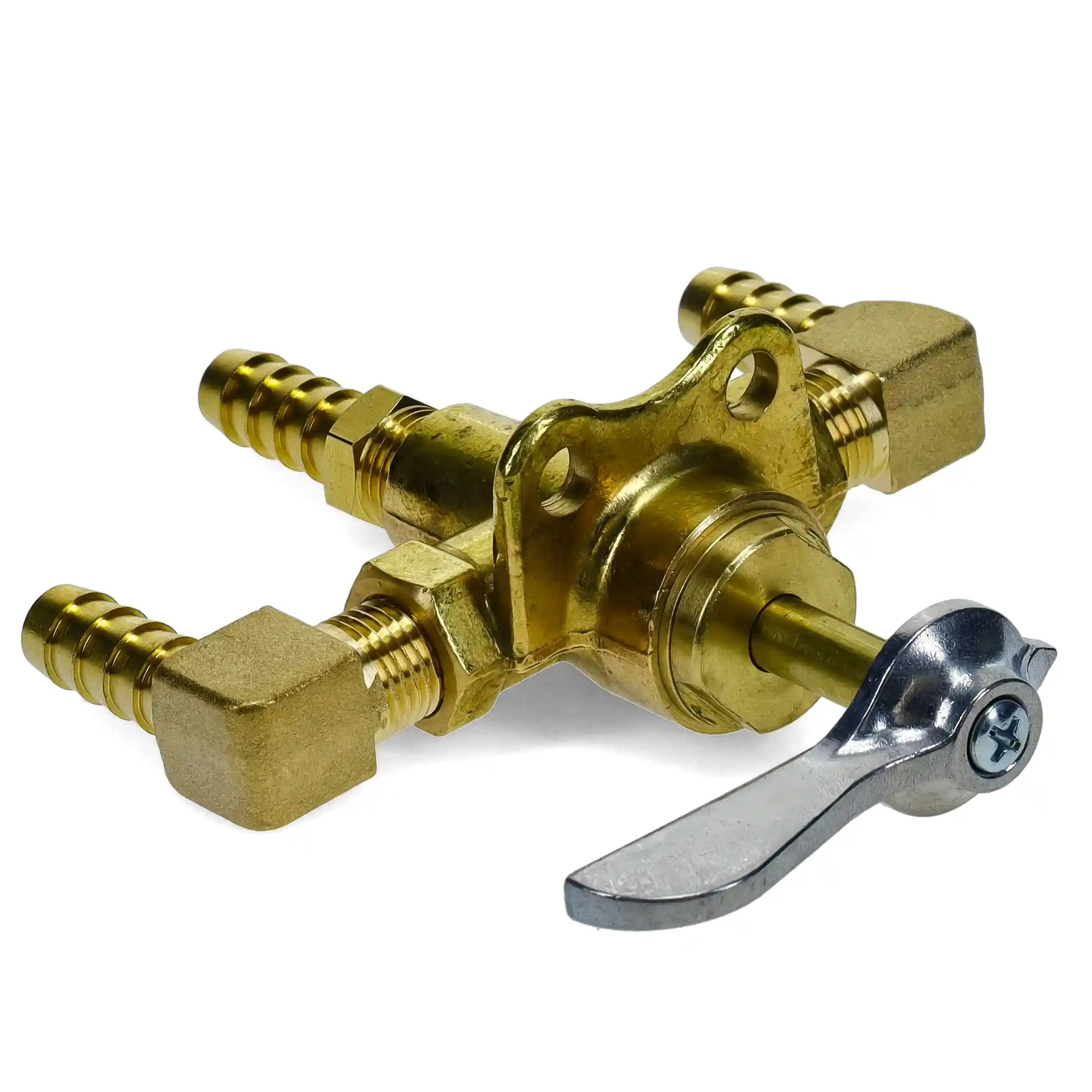

When your dual-tank setup starts acting up, it often comes down to the selector. This manual fuel tank selector valve brings your 1966–77 Ford Bronco back to simple, dependable operation. Built from solid brass and designed to mount under the driver’s seat like the original, it lets you switch between front and rear tanks with confidence—no guesswork, no gimmicks.

Pro Tip: This valve controls which tank feeds the engine—it does not control the fuel gauge. The gauge is operated by a separate dash switch, so you can check fuel levels without switching tanks.

• Direct-Fit Replacement – Mounts in the factory location under the driver’s seat

• Durable Brass Construction – Built to handle years of fuel exposure and use

• Restores Factory Function – Manually switch between front and rear tanks

• 3-Port Design – Standard feed-only configuration for most dual-tank Broncos

• Simple Installation – Hooks up to factory-style fuel lines

How the Early Bronco Fuel Selector Valve Works

Important: The small pointed end of the lever (not the long handle) indicates which tank is selected. This is one of the most common points of confusion.

• Pointer toward passenger side = main tank (factory routing)

• Pointer toward driver side = auxiliary tank (factory routing)

This valve simply directs fuel from one inlet port to the outlet. Which tank is “main” or “auxiliary” depends entirely on how your fuel lines are routed.

If your Bronco has had fuel system work over the years, the selector may appear to work backwards. In many cases, previous owners have swapped or rerouted fuel lines. Always verify hose routing if the valve position doesn’t match the expected tank.

Fuel Selector Valve Troubleshooting

• Wrong tank selected? Fuel lines may be reversed at the valve or user is trying to point the lever and not the pointer to the selected tank.

• Valve seems backwards but works otherwise? Check hose routing before assuming a faulty part.

• Fuel gauge doesn’t match tank? Gauge is controlled by the dash switch, not the valve. You need to select which tank the gauge reads from using the toggle switch on the dash.

• Not sure which tank you're on? Verify by tracing lines or monitoring fuel draw during operation

Note on Indicator Plate Orientation: The selector plate installs upside down from what most expect—this is factory-correct. It was designed this way so you can read it while leaning forward over the seat.

Historical Note: Some 1973 Ford Broncos used a 6-port selector valve (feed and return). This 3-port valve can replace those units, though it eliminates return lines. Most original return systems have already been bypassed, making this the most practical replacement.

Restore proper fuel tank switching with this brass manual selector valve, built for 66–77 Broncos with dual gas tanks. Mounts under driver seat like original.
