Proportioning Valve, 66-77 Ford Bronco SKU: 3037

Proportioning Valve, 66-77 Ford Bronco

Proportioning Valve, 66-77 Ford Bronco

Proportioning Valve
Purchase Proportioning Valve, 66-77 Ford Bronco
$74.99 SKU: 3037
Fits 66-77 Ford Bronco
4 Reviews
Choose Type:

Product Overview:

The difference between the two applications is the disc/drum valve includes a built-in metering valve for the front disc. The fitting kit (sold separately) has the adapters to allow for custom line fitting with common hard lines that can be found at local auto part stores.

Full description

The difference between the two applications is the disc/drum valve includes a built-in metering valve for the front disc. The fitting kit (sold separately) has the adapters to allow for custom line fitting with common hard lines that can be found at local auto part stores.

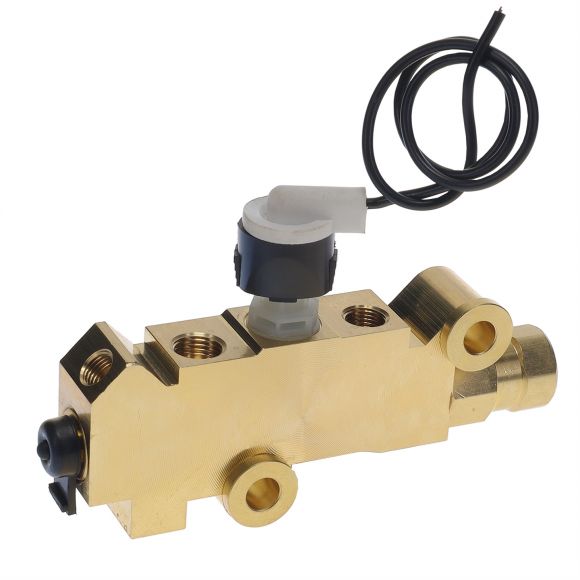

Proportioning Valve.
We have specific valves available for disc/drum or four wheel disc brakes. The difference between the two applications is the disc/drum valve includes a built-in metering valve for the front disc. The fitting kit (sold separately) has the adapters to allow for custom line fitting with common hard lines that can be found at local auto part stores.

The valve comes with mounting hardware and electric plug for wiring brake warning light. The brake warning light comes on if there is a pressure differential between the front and rear brakes. This could indicate a leaking line, caliper or wheel cylinder. Bracket shown is not included but can be purchased separately.

To save yourself some time and frustration be sure to pick up a bleeder tool when you buy the prop valve. See below.
pdf-file

Instruction 1

Review Proportioning Valve, 66-77 Ford Bronco

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


Asked by David, August 29, 2022

Q: I have 2 wires coming off my new Painless Harness for the brake warning light. How do I wire those into the single wire off the switch?

1 Answer

Answered by sales - August 30, 2022

A: You will twist or connect all 3 wires together.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Mark, September 18, 2016

Q: I'm rebuilding my 1967 Bronco brake set up and have lost my stock distribution block. Will this disk/disk proportioning valve do the trick? If so what additional fittings (if any) will i need? I have a all drum set up. Thanks

1 Answer

Answered by sales - September 19, 2016

A: Correct, you will want the disc/disc version. You will also want the #3039 fitting kit.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Randy, December 4, 2015

Q: How do you hook up the one wire coming off of the valve to the two wire plug on a Centech wiring harness?

1 Answer

Answered by sales - December 4, 2015

A: The two wires will go together into the single wire proportioning valve.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Matt, January 3, 2013

Q: Will this work on a 1970 F250 2WD with four wheel drum brakes??

Thanks, Matt

1 Answer

Answered by WH tech - January 5, 2013

A: It will work but you will need to mount the valve and plumb your lines and hoses to and from the valve.

Know the answer? Add it here.

Know the answer? Add it here.

PRODUCT REVIEWS
Steven
Reviewed 02/06/2016
Worked great with my 4 wheel disc brake setup!

STRAIT-TEQ
Reviewed 08/12/2014
Fit right in place of the stock proportioning valve. Only needed one adapter to get it hooked to the trailer brakes. Machining was of a very high quality, even on the parts you don't normally see.

harold thompson
Reviewed 04/06/2012
Love ya, you guys are great. 6 years on my project and you have been there since the beginning..............

Masrop
Reviewed 08/11/2011
Product was as advertised, extremely competetive in price. Delivery prompt and in good order... packed well and arrived without incident. Great overall experience.
