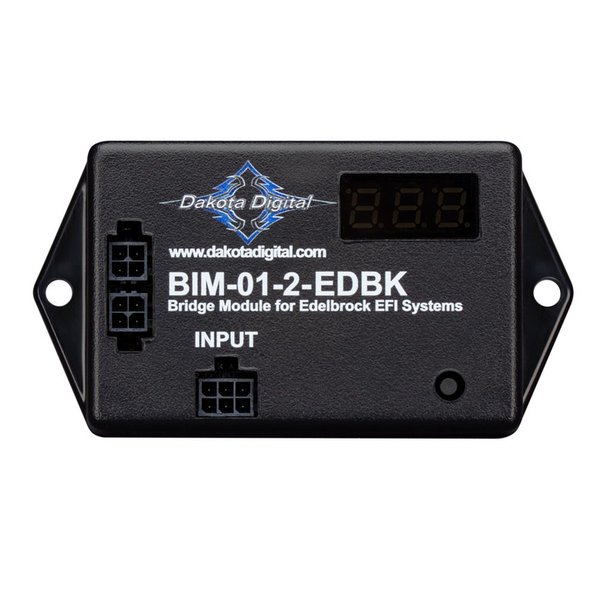

BIM-01-2-EDBK Dakota Digital Bus Interface Module for Edelbrock Engine Management SKU: BIM-01-2-EDBK

Dakota Digital Bus Interface Module for Edelbrock EFI Systems

If you're running the Edelbrock Pro-Flo 4 EFI system and want real-time data on your Dakota Digital gauge cluster, this module is the solution. The BIM-01-2-EDBK allows your digital dash to speak directly with the Pro-Flo 4’s control module, providing seamless communication of your engine vitals—all with a clean, direct plug-in connection. No more splicing, no signal lag—just reliable, accurate readings right where you want them.

This module connects directly to your Edelbrock system via the DB9 CAN plug on the main harness. No fuss, no wire guesswork—just plug and go. It’s the smartest and cleanest way to display critical engine stats on your Dakota Digital cluster.

• Direct Plug-in to Pro-Flo 4: Connects to the DB9 CAN port on Edelbrock EFI harness for instant communication.

• Vital Engine Data: Displays tachometer, water temp, intake air temp, fuel pressure, AFR, MAP, and boost (when applicable).

• Dash Integration: Sends signals directly to VHX, RTX, HDX, or VFD3 Dakota Digital instrument systems.

• Reliable Monitoring: Perfect for high-performance Broncos, trail rigs, or restomods where keeping an eye on engine vitals is non-negotiable.

• Clean Install: Eliminates the hassle of wiring multiple sensors to your gauges—your ECU already has the data.

• Sensor Accuracy: Displayed values depend on your Edelbrock ECM and matching OEM sensors—Dakota Digital cannot guarantee availability or accuracy of all channels.

• System Compatibility: Works with Dakota Digital VHX, HDX, RTX, and VFD3 instrument systems using a black plastic control box.

• Legacy Systems: Older aluminum module gauge systems are not BIM-compatible.

• 3.5mm Jack Users: If your control box uses a 3.5mm headphone jack BIM input, add Dakota part #394193 for compatibility.

Plug straight into your Edelbrock Pro-Flo 4 EFI system and display key engine stats on your Dakota Digital gauges - no custom wiring or signal delays required.
