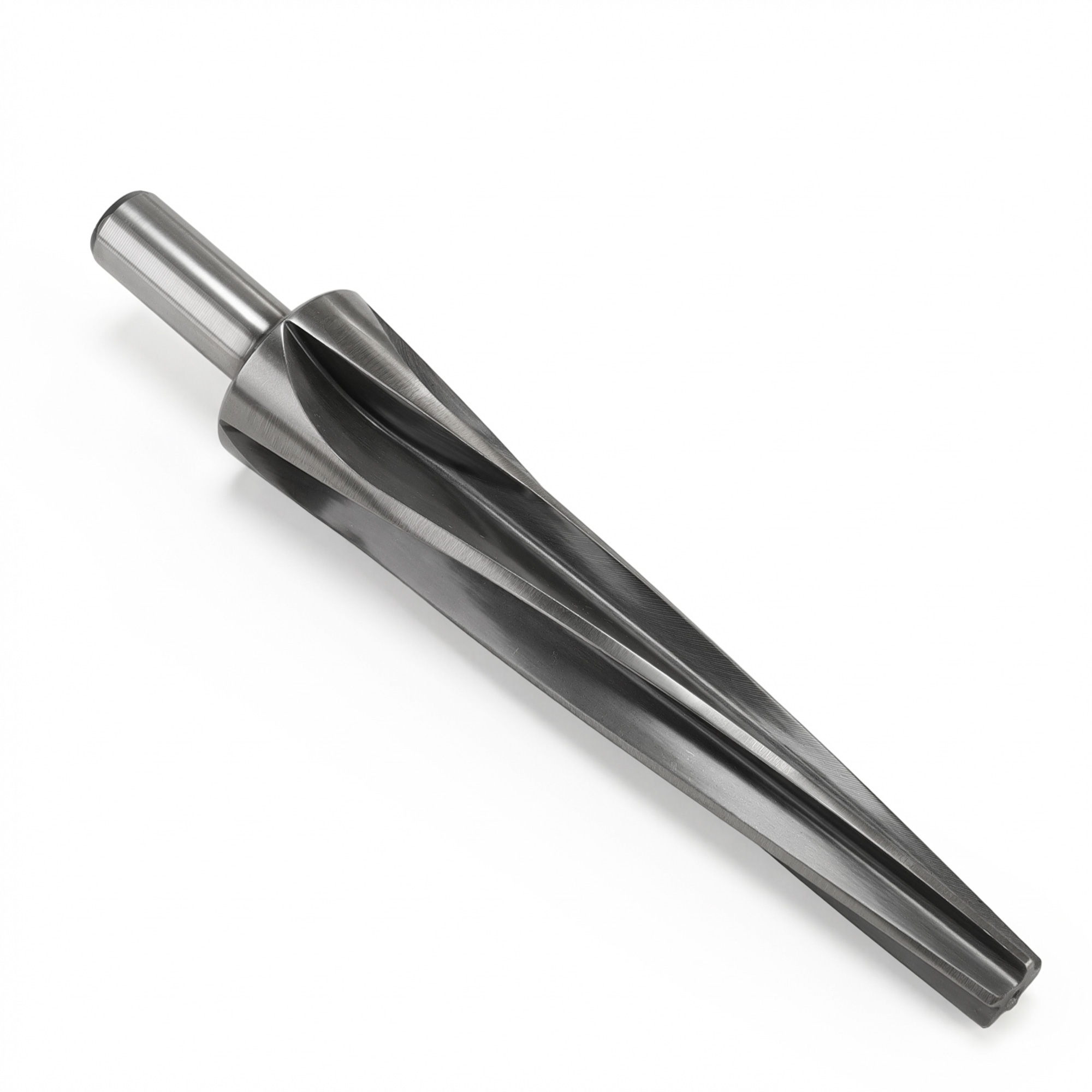

Tapered Reamer for Knuckles SKU: 2385
Tapered Reamer for Knuckles
Tapered Reamer for Knuckles
Product Overview:
This tapered reamer will allow you to ream your existing knuckles to the larger Ford tie rods or the "GM 1 ton" steering tie rods. This is also the same tool you'd need to place your tie rods on top of the steering knuckle or what's commonly called a "Tie Rod over conversion", or TRO.
•1-1/2" taper per foot or 7.125 degree included angle.
•6 Flute straight reamer design.
•Overall length is 6-1/2", flute length is 4-1/2", major diameter is .995".
•Shank diameter is 1/2" with a square on the end.
•To be used by hand with a tap wrench, in a drill press, or vertical mill with a 1/2" or larger drill chuck or collet.
Full description
This tapered reamer will allow you to ream your existing knuckles to the larger Ford tie rods or the "GM 1 ton" steering tie rods. This is also the same tool you'd need to place your tie rods on top of the steering knuckle or what's commonly called a "Tie Rod over conversion", or TRO.
•1-1/2" taper per foot or 7.125 degree included angle.
•6 Flute straight reamer design.
•Overall length is 6-1/2", flute length is 4-1/2", major diameter is .995".
•Shank diameter is 1/2" with a square on the end.
•To be used by hand with a tap wrench, in a drill press, or vertical mill with a 1/2" or larger drill chuck or collet.
•1-1/2" taper per foot or 7.125 degree included angle.
•6 Flute straight reamer design.
•Overall length is 6-1/2", flute length is 4-1/2", major diameter is .995".
•Shank diameter is 1/2" with a square on the end.
•To be used by hand with a tap wrench, in a drill press, or vertical mill with a 1/2" or larger drill chuck or collet.
This tapered reamer will allow you to ream your existing knuckles to the larger Ford tie rods or the "GM 1 ton" steering tie rods. This is also the same tool you'd need to place your tie rods on top of the steering knuckle or what's commonly called a "Tie Rod over conversion", or TRO.
•1-1/2" taper per foot or 7.125 degree included angle.
•6 Flute straight reamer design.
•Overall length is 6-1/2", flute length is 4-1/2", major diameter is .995".
•Shank diameter is 1/2" with a square on the end.
•To be used by hand with a tap wrench, in a drill press, or vertical mill with a 1/2" or larger drill chuck or collet.
•1-1/2" taper per foot or 7.125 degree included angle.
•6 Flute straight reamer design.
•Overall length is 6-1/2", flute length is 4-1/2", major diameter is .995".
•Shank diameter is 1/2" with a square on the end.
•To be used by hand with a tap wrench, in a drill press, or vertical mill with a 1/2" or larger drill chuck or collet.
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Greg Schofield, December 28, 2019
Q: Does this reamer allow me to use stock size 79 bronco tire rod ends?
⮞ 1 Answer
Answered by ☆ sales - December 30, 2019
A: Yes, this tapered reamer will allow you to enlarge the taper or your stock holes, for the larger full size tie rod ends, with early Bronco knuckles.
Asked by Miguel Rivera, September 7, 2015
Q: Is this the same reamer I should use to open the tie rod holes of a 76-77 knuckles to use the t style tie rod?
⮞ 1 Answer
Answered by ☆ sales - September 8, 2015
A: You can use the reamer to enlarge your current holes for earlier tie rods, or we have a T style available for the 76-77 #2390.
