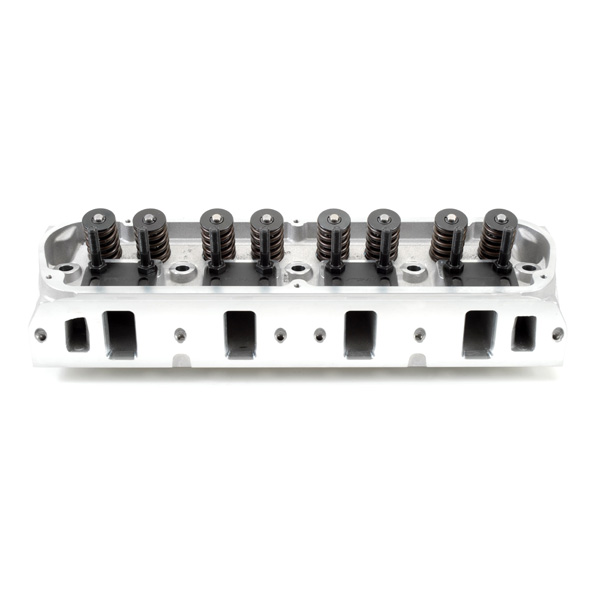

Edelbrock E-Street 289/302/351 Cylinder Heads, 1.90-in SKU: ED5023

Edelbrock E-Street Cylinder Heads | 1.90-inch Valves | Ford 289, 302, 351W

The Edelbrock E-Street Cylinder Heads #5023 are engineered for Ford 289, 302, and 351W small-block engines, offering a performance upgrade ideal for street-driven applications operating in the idle to 5,500 RPM range. Constructed from A356 aluminum and heat-treated to T-6 specifications, these heads provide increased strength and durability. The 60cc combustion chambers and 170cc intake runners are designed to improve airflow and combustion efficiency, resulting in enhanced horsepower and torque. With 1.90-inch intake and 1.60-inch exhaust valves, these heads are compatible with stock pistons, making them a convenient choice for engine rebuilds or upgrades.

• Optimized for Street Performance: Designed for engines operating from idle to 5,500 RPM, delivering improved throttle response and power for daily driving and mild performance applications.

• High-Quality Construction: Made in the USA from A356 aluminum and heat-treated to T-6 spec for superior strength and durability.

• Enhanced Airflow: Larger-than-stock intake and exhaust ports facilitate better air movement, contributing to increased engine efficiency and performance.

• Modern Combustion Chamber Design: 60cc chambers promote efficient combustion, potentially improving fuel economy and reducing emissions.

• Durable Components: Features Heli-Coil® threaded inserts in rocker stud bosses and hardened spring cups to maintain proper torque load and resist wear.

Technical Notes:

• Compatible with hydraulic flat tappet camshafts; maximum lift of .550".

• Not suitable for use with hydraulic roller camshafts.

• Recommended spark plugs: Champion RC12YC or equivalent (14mm x 3/4" reach with flat gasket seat).

• Requires hardened pushrods.

• For 289-302 engines with 7/16" head bolts, the use of Edelbrock #9680 head bolt bushing kit is necessary.

• 1.90" intake valves are ideal for use with stock pistons; 2.02" valves may require additional piston-to-valve clearance.

• Rocker arm studs and guide plates are not included with bare versions of E-Street cylinder heads.

Upgrade your Small Block Ford with the Edelbrock E-Street Cylinder Heads, delivering improved airflow and combustion efficiency for enhanced street performance.
