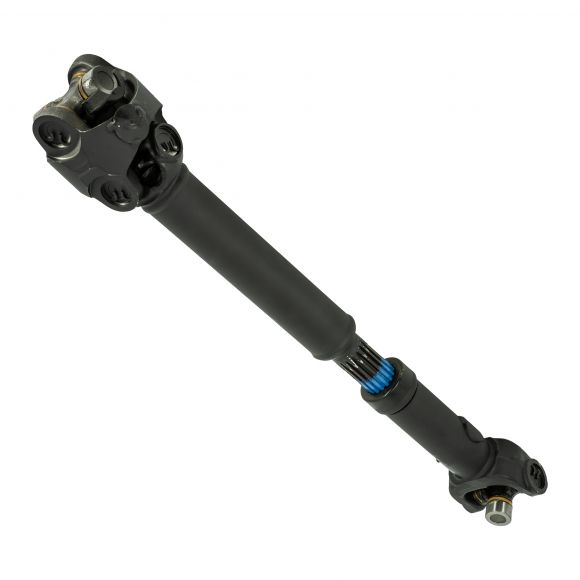

High Clearance HD Front Driveshaft, 66-77 Ford Bronco - Made in USA SKU: 8578

High Clearance HD Early Bronco Front Driveshaft - Made in USA

When it comes to off-roading, your Bronco deserves the best. Our High Clearance Heavy Duty Front Driveshafts are built with the highest quality materials, all sourced and crafted right here in the USA. Designed specifically for the 66-77 Ford Bronco, these driveshafts are engineered to handle the toughest trails, providing superior performance and durability that lesser products just can't match.

Why Choose Our High Clearance Driveshafts?

• Full-Length Spline Engagement: Our driveshafts feature full-length splines, ensuring maximum surface contact within the slip yoke. This design significantly enhances durability, especially when paired with long-travel suspensions, making it perfect for extreme off-road use.

• Premium U-Joint Construction: The 1310 series U-joints include grease fittings located in the bearing cap for easy maintenance—a thoughtful addition that’s often overlooked by the competition. These U-joints are designed to withstand the rigors of off-road adventures, offering reliability you can count on.

• Superior Clearance and Strength: Built with narrower diameter, thicker-walled DOM tubing, our driveshafts provide the extra clearance needed to navigate challenging terrain. The DOM tubing nearly doubles the yield and tensile strength compared to standard CREW tubing, making these driveshafts tough enough for any trail.

Why Our Driveshafts Stand Out:

• Custom Forged Slip Yokes: With approximately twice the strength of OE yokes, our custom-forged slip yokes are built to last. They feature a solid plug to keep contaminants out and ensure proper grease flow, extending the life of your driveshaft.

• Top-Quality CV Components: We use only the best CV components from trusted manufacturers like Spicer and Neapco. These parts are carefully selected to provide exceptional flexibility without sacrificing strength, ensuring your driveshaft can handle whatever the trail throws at it.

• Made in the USA: Our driveshafts are proudly made in America, ensuring top-notch quality and supporting American jobs.

Fitment and Installation: Our driveshafts are available in 23.5" or 24.5" running lengths, measured from center joint to center joint on the transfer case and pinion yokes with the Bronco sitting level. They can also be ordered in custom length for your specific application. If your Bronco is equipped with a Cleveland style driveshaft, a new Dana Spicer style transfer case yoke will be required.

Each driveshaft is fully assembled with U-joints and a CV joint, balanced, and ready for installation. Plus, every purchase includes a service tool for greasing the center pivot of the CV assembly, making maintenance a breeze.

Upgrade to the best with our High Clearance HD Front Driveshaft and give your Bronco the strength and clearance it needs to conquer any trail.

---

66-77 Ford Bronco Driveshaft Identification:

From 1966-70, the Ford Bronco came with a Borg Warner driveshaft also known as Cleveland style driveline. From 1971-77, Ford switched to using Dana Spicer for their early Bronco drive shafts. Both styles of driveshaft used constant velocity joints. When identifying your early Bronco's drive line, it 's important not to just go by the year of the Bronco. Many Borg Warner Cleveland-style drivelines have already been upgraded to the Dana Spicer style due to availability the past few decades. The best way to tell which driveshaft you have is to see if your driveshaft uses external snap rings. If you can see the snap rings on the outside of the bearing cap, it's a Dana Spicer-style driveshaft.

Another way to tell the difference is to measure the bolt pattern on the transfer case yoke. All of our driveshafts are Spicer style and you will need a transfer case yoke if you are converting from the old Borg Warner.

How to measure your 1966-77 Ford Bronco Driveshaft

Wild Horses has driveshafts to fit your Bronco. While a stock length driveline will still work on Broncos with a minor suspension lift, this is not the ideal setup. Even with a small lift, the drive shaft is not long enough for a proper fit. We stock driveshafts to fit from stock height to 6 inch suspension lifts. When ordering a new drive line for your classic Ford Bronco, it is best to use the working measurement to ensure you get the right driveshaft. Also known as the running length, this is the measurement from the yoke on the transfer case to the yoke on the rear end. Measure from center of bearing cap to center of bearing cap with the suspension fully loaded to normal ride height.


Note: The working measurement is not the length of the driveshaft itself, but of the distance between the mounting yokes. The running length is taken with the Bronco sitting on level ground and loaded as normal. The rear drive line usually measures between 33.5 and 36 inches. The front driveshaft typically measures from 23 to 25 inches. If your measurement falls between one of the lengths we offer, we generally recommend you order the next larger size (e.g. Your measurement is 34" so you would order a 34 1/2" rather than a 33 1/2"). Also note that an incorrect pinion angle will affect the length of driveline you need for your Bronco. Make sure the angle is correct before you measure for a new shaft.

1966-77 Ford Bronco Driveshaft Maintenance

Lack of maintenance is the number one cause of driveshaft failure. Driveshafts should be greased regularly, including the CV joint & splines. Most shafts will have a total of 5 grease fittings, so make sure you get them all. The grease fittings could be male or female style on the three u-joints and you will find the female style on the CV. You will need to use a needle attachment on a standard grease gun.

A rebuild kit will not fix a driveshaft that has worn-out splines and slip yoke. Prior to rebuilding your early Bronco driveline, inspect these parts to ensure they are in good condition.
