Ford AODE/4R70W/4R75W Auto to Dana 20 Adapter 27 Spline, 66-77 Ford Bronco SKU: 8330

Ford AODE Transmission to Dana 20 Transfer Case Adapter

Adapts Early Bronco Dana 20 Transfer Case to Ford AODE, 4R70W or 4R75W

This adapter kit is engineered to mate a Ford AODE, 4R70W, or 4R75W automatic overdrive transmission to the original Dana 20 transfer case found in a 1966–77 Ford Bronco. Whether you’re converting from 2WD or 4WD, this kit is built for electronically controlled transmissions from model years 1992–2003. At 6.00" long and made from 356 T-6 heat-treated aluminum, the adapter is built tough for real-world use and includes all the components needed for installation—right down to the hardware and seal kit. Designed specifically to retain the stock Bronco transfer case mount, this kit is a go-to for serious drivetrain upgrades.

• Application: Adapts 1992–2003 AODE / 4R70W / 4R75W transmissions to Dana 20 transfer cases.

• Bronco Fitment: Works with all 1966–77 Bronco Dana 20 transfer cases.

• Material: Precision-cast 356 T-6 heat-treated aluminum adapter housing.

• Length: 6.00" overall adapter housing length.

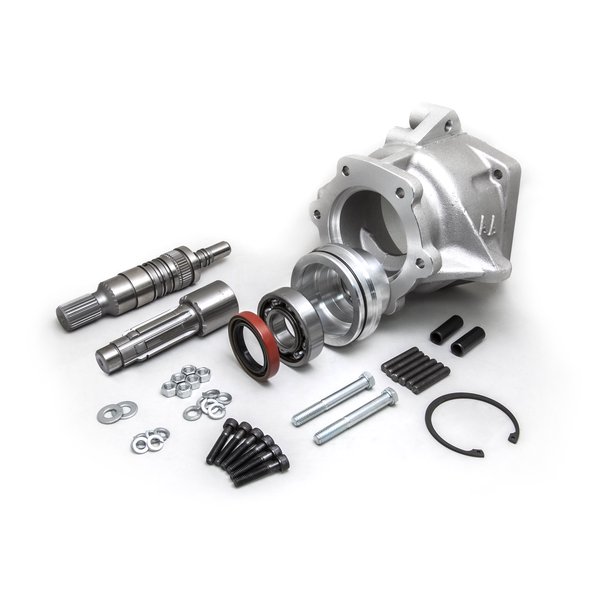

• Complete Kit: Includes adapter housing, output shaft, spud shaft, retainer, bearing, snap ring, gasket, seal, o-ring, hardware, and instructions.

• Mount Compatibility: Retains use of factory Bronco transfer case mount.

Important Technical Notes

• Shifter Note: Requires T-style transfer case shifter linkage for proper function.

• Important Fitment Check: Always compare the new output shaft with your original before installation.

Upgrade your early Bronco to an electronically-controlled Ford Automatic Overdrive Transmission - adapts AODE, 4R70W or 4R75W to a Dana 20 Bronco transfer case.
