4340 Chromoly Outer Axle, Dana 44 w/Disc Conversion, 66-77 Ford Bronco SKU: 8691

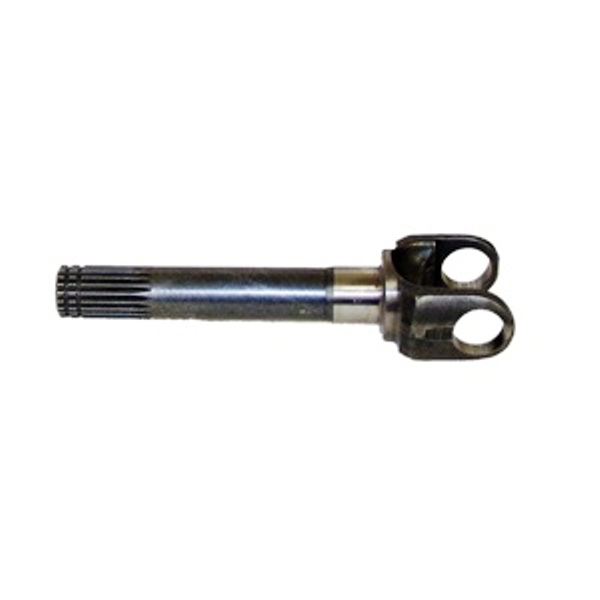

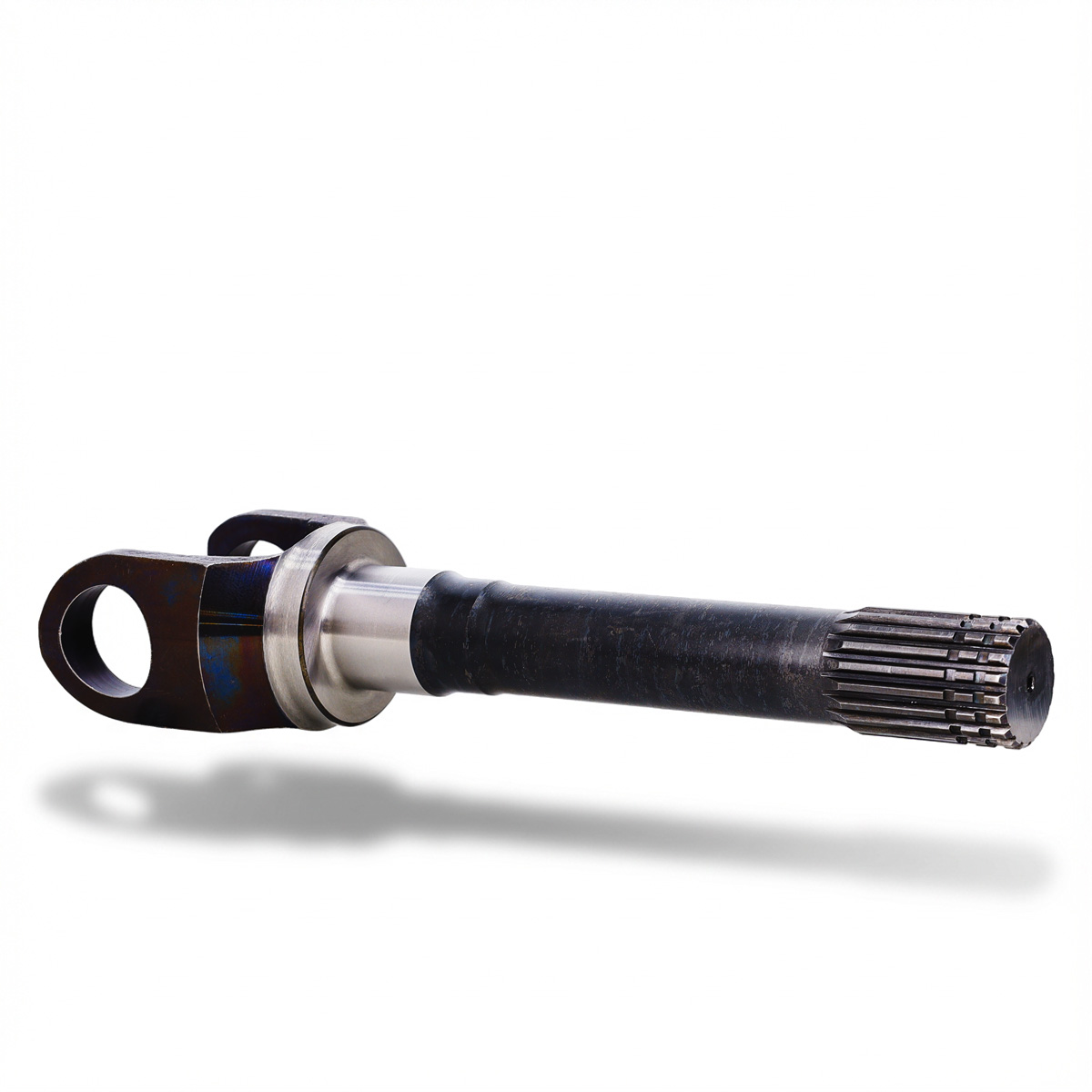

4340 Chromoly Outer Axle, Dana 44 w/Disc Conversion, 66-77 Ford Bronco
4340 Chromoly Outer Axle Dana 44 w/Disc Conversion 66-77 Bronco
Product Overview:
This 4340 ChroMo front axle is designed for GM style front disc brakes. Our 4340 chromoly axles increase strength over stock axles for use in performance applications. 4340 axles are manufactured using the latest technologies and the highest quality materials to ensure high strength and long life.
- * Made from 4340 chromoly. Provides up to 50% increased strength over stock axles.
- * Machined for full snap rings. C-clip snap rings are known to come off under high stress.
- * 1.189" O.D. U-joints. Stock Bronco U-joint caps measure 1.063", the chromoly axles use the large O.D. caps for added strength.
Full description
This 4340 ChroMo front axle is designed for GM style front disc brakes. Our 4340 chromoly axles increase strength over stock axles for use in performance applications. 4340 axles are manufactured using the latest technologies and the highest quality materials to ensure high strength and long life.
- * Made from 4340 chromoly. Provides up to 50% increased strength over stock axles.
- * Machined for full snap rings. C-clip snap rings are known to come off under high stress.
- * 1.189" O.D. U-joints. Stock Bronco U-joint caps measure 1.063", the chromoly axles use the large O.D. caps for added strength.
This 4340 ChroMo front axle is designed for GM style front disc brakes. Our 4340 chromoly axles increase strength over stock axles for use in performance applications. 4340 axles are manufactured using the latest technologies and the highest quality materials to ensure high strength and long life.
- * Made from 4340 chromoly. Provides up to 50% increased strength over stock axles.
- * Machined for full snap rings. C-clip snap rings are known to come off under high stress.
- * 1.189" O.D. U-joints. Stock Bronco U-joint caps measure 1.063", the chromoly axles use the large O.D. caps for added strength.
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Ryan Shirts, September 7, 2023
Q: Hi, I see the answer below is 9.94 length. Is my assumption correct that the 9.94 measurement is from the center of the u-joint cap to the opposite end of the shaft?
⮞ 1 Answer
Answered by ☆ sales - September 15, 2023
A: Correct, from center of u-joint to the end of the splines.
Asked by Steve, March 18, 2013
Q: What is the length of this axle shft? 9.94?? Thanks.
⮞ 1 Answer
Answered by ☆ WH tech - March 20, 2013
A: That is correct, these are for Chevy brakes and are 9.94 long. When using Ford brakes you want a 9.72 long stub shaft (#8690).
Now, you can use the Ford stub shaft with Chevy brakes but you can not use the Chevy stub with Ford brakes.
