80-93 Ford AOD 2WD Trans to Dana 20 Adapter 23 Spline, 66-77 Ford Bronco SKU: 8327
80-93 Ford AOD 2WD Trans to Dana 20 Adapter 23 Spline, 66-77 Ford Bronco
Product Overview:
Ford AODE 2WD 1980-93 to Dana 20 Adapter Use this one if you are converting a 2WD AOD transmission.

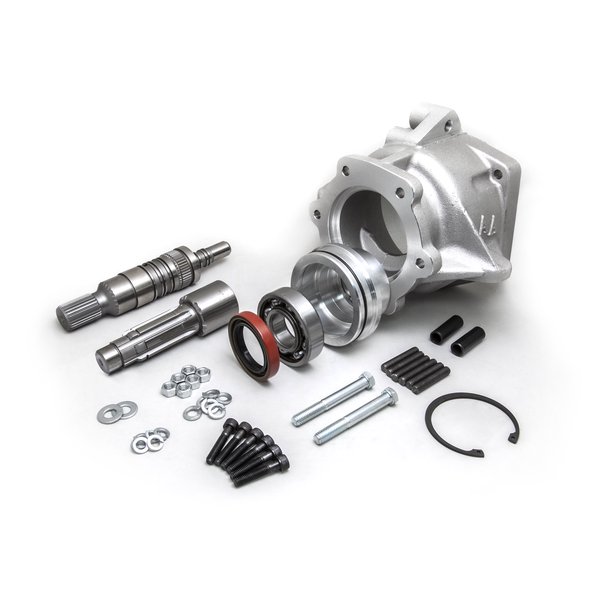

Our Ford AODE adapter to the Bronco Dana 20 is 6.00" in length. The adapter material is 356 T-6 heat treated aluminum alloy, and the adapter has a provision to retain the original early Bronco mount. The adapter kit includes an adapter housing, new output shaft, spud shaft, retainer, bearing, snap ring, gasket, seal, o-ring, fastening hardware and adapter instructions.
The adapter assembly will fit any 1966-77 Bronco Dana 20 transfer case. T-style transfer case shifter linkage is required.
Full description
Our Ford AODE adapter to the Bronco Dana 20 is 6.00" in length. The adapter material is 356 T-6 heat treated aluminum alloy, and the adapter has a provision to retain the original early Bronco mount. The adapter kit includes an adapter housing, new output shaft, spud shaft, retainer, bearing, snap ring, gasket, seal, o-ring, fastening hardware and adapter instructions.
The adapter assembly will fit any 1966-77 Bronco Dana 20 transfer case. T-style transfer case shifter linkage is required.
Our Ford AODE adapter to the Bronco Dana 20 is 6.00" in length. The adapter material is 356 T-6 heat treated aluminum alloy, and the adapter has a provision to retain the original early Bronco mount. The adapter kit includes an adapter housing, new output shaft, spud shaft, retainer, bearing, snap ring, gasket, seal, o-ring, fastening hardware and adapter instructions.
The adapter assembly will fit any 1966-77 Bronco Dana 20 transfer case. T-style transfer case shifter linkage is required.
Q&A
Have a question? Click Here to submit your question.
Asked by Russ, May 25, 2022
Q: How do you know which way the seal should go?
Answered by ☆ sales - May 26, 2022
A: The side with the seam, will go into the adapter housing. The side of the seal with writing, will face the bearing, and be the driven side.
Asked by Gary Kopadt, November 25, 2021
Q: Will this work with a t shift pattern transfercase pattern only or will it work with the J shift pattern allso
Answered by ☆ sales - November 29, 2021
A: The adapter is not specific to J or T. We recommend twin stick- t-case shifters with all trans swaps for ease of control and installation. Neither stock shifter will work without modification.
