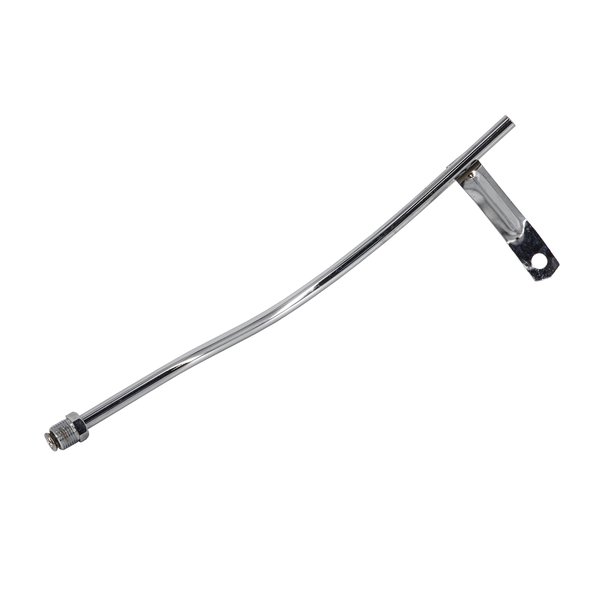

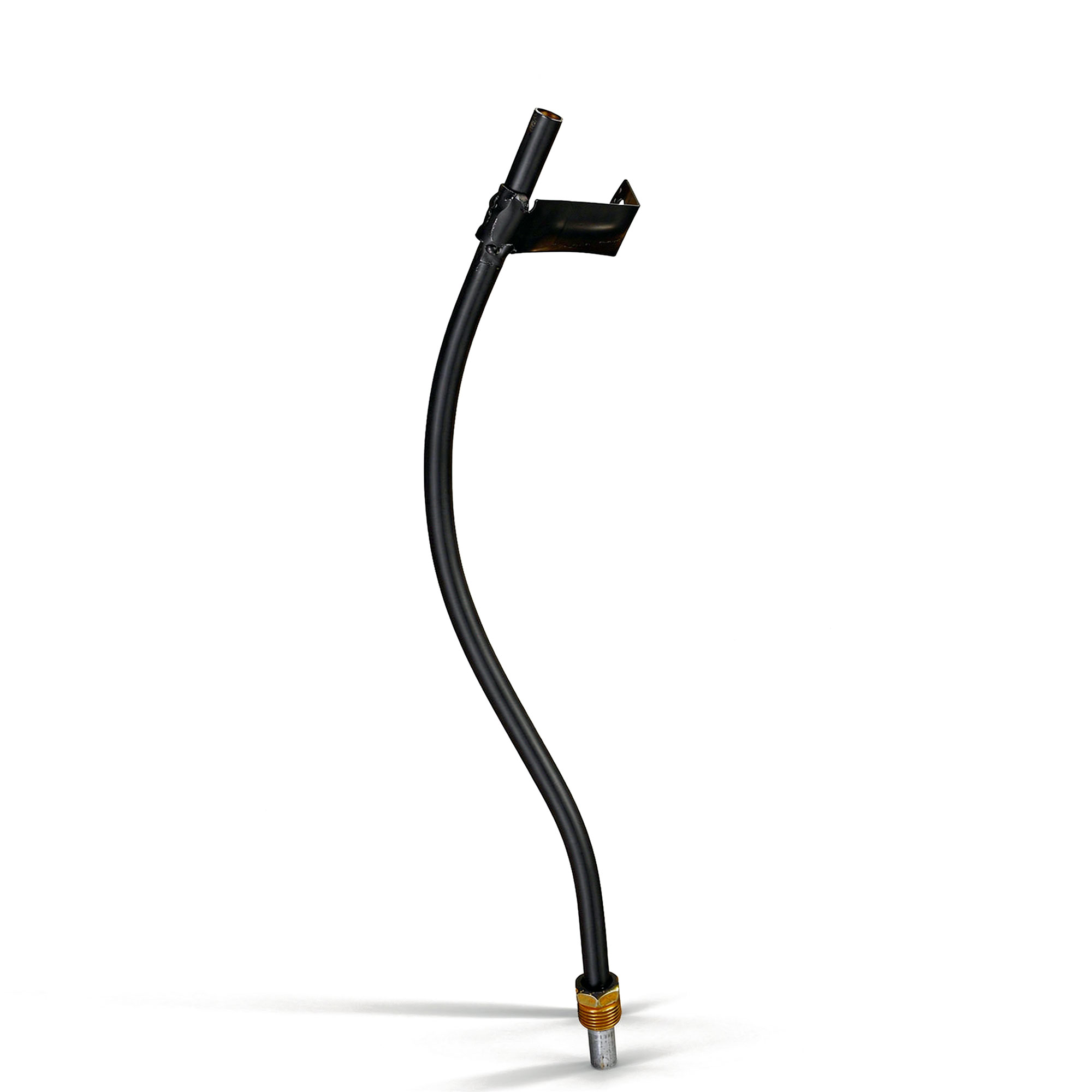

Screw-in Dip Stick Tube, Passenger Mount, 289/302, 73-77 Ford Bronco SKU: 8031

Screw-in Dip Stick Tube, Passenger Mount, 289/302, 73-77 Ford Bronco

Screw-in Dip Stick Tube Passenger Mount 289/302 73-77 Bronco

Product Overview:

Screw In Dip Stick Tube. Our dip sticks tubes are intended for use in stock Bronco oil pans with the stock dip stick. The Screw In Dip Stick Tube fits the later engines. The tube threads into the side of the pan with a tube nut.

Full description

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Kirk Hesington, December 5, 2021

Q: My 1975 Bronco has always leaked where the stock slide-in dip stick tube connects with the oil pan. To use the screw-in dip stick tube, I'll need to buy a whole new pan that has the threaded female connection, right? Or is there another way?

⮞ 1 Answer

Answered by ☆ sales - December 7, 2021

A: Correct, and the screw in ones normally leak too. Trying to seal, or re-seal what you have may be best. If it is too far gone, you do need change the whole pan. If you do buy an new pan, do anything you can to seal the area permanently before installing. Otherwise, some will plug the pan off completely, and do a timing cover style dip stick.

Asked by Bruno, October 28, 2019

Q: Hi, I am looking for a oil dipstick tube for my 1964 Ford f100, that one looks like the same, can you confirm please? Thanks

⮞ 1 Answer

Answered by ☆ sales - October 30, 2019

A: The manufacturer lists this dip stick for the Bronco only.

Asked by Dave Gray, October 2, 2019

Q: About this dipstick tube
Im looking for one that threads into my 1991 roller 302 block. It has dual sump pan but the diptube needs to thread into my block on drivers side between cyl #7 and 8.
Will this fit? I've tried a few from other vendors and none fit.

⮞ 1 Answer

Answered by ☆ sales - October 3, 2019

A: No, this is designed to screw into the oil pan, not the block. The thread size is 5/8-18 tpi.

Asked by Anonymous, January 3, 2017

Q: what is the size is the threads?

⮞ 1 Answer

Answered by ☆ sales - January 4, 2017

A: The thread size is 5/8-18.

Asked by Lee d wilson, September 8, 2013

Q: What is the length of this tube?

⮞ 1 Answer

Answered by ☆ 8578 - September 11, 2013

A: Approx. 14

NEED HELP? Talk to a BRONCO expert today! (209) 400-7200

PRODUCT REVIEWS

Dan Salzman

Reviewed 06/11/2022

It's not exactly like the original, as the tube doesn't extend past the nut into the pan, but it looks nice and it works. I had to modify it a little to work with my headers, but I'd had to bend the old one for the same reason.

Michael Craft

Reviewed 07/15/2017
