Silicone Radiator Hose Set, SBF V8, 69-77 Ford Bronco SKU: 5026

Silicone Radiator Hose Set, SBF V8, 69-77 Ford Bronco

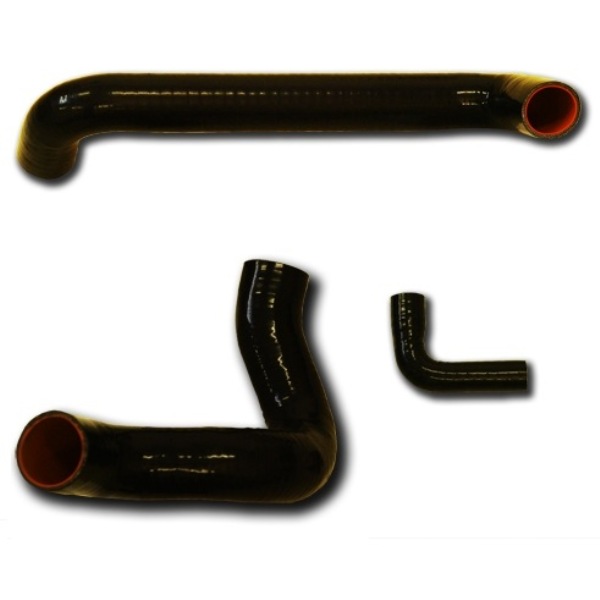

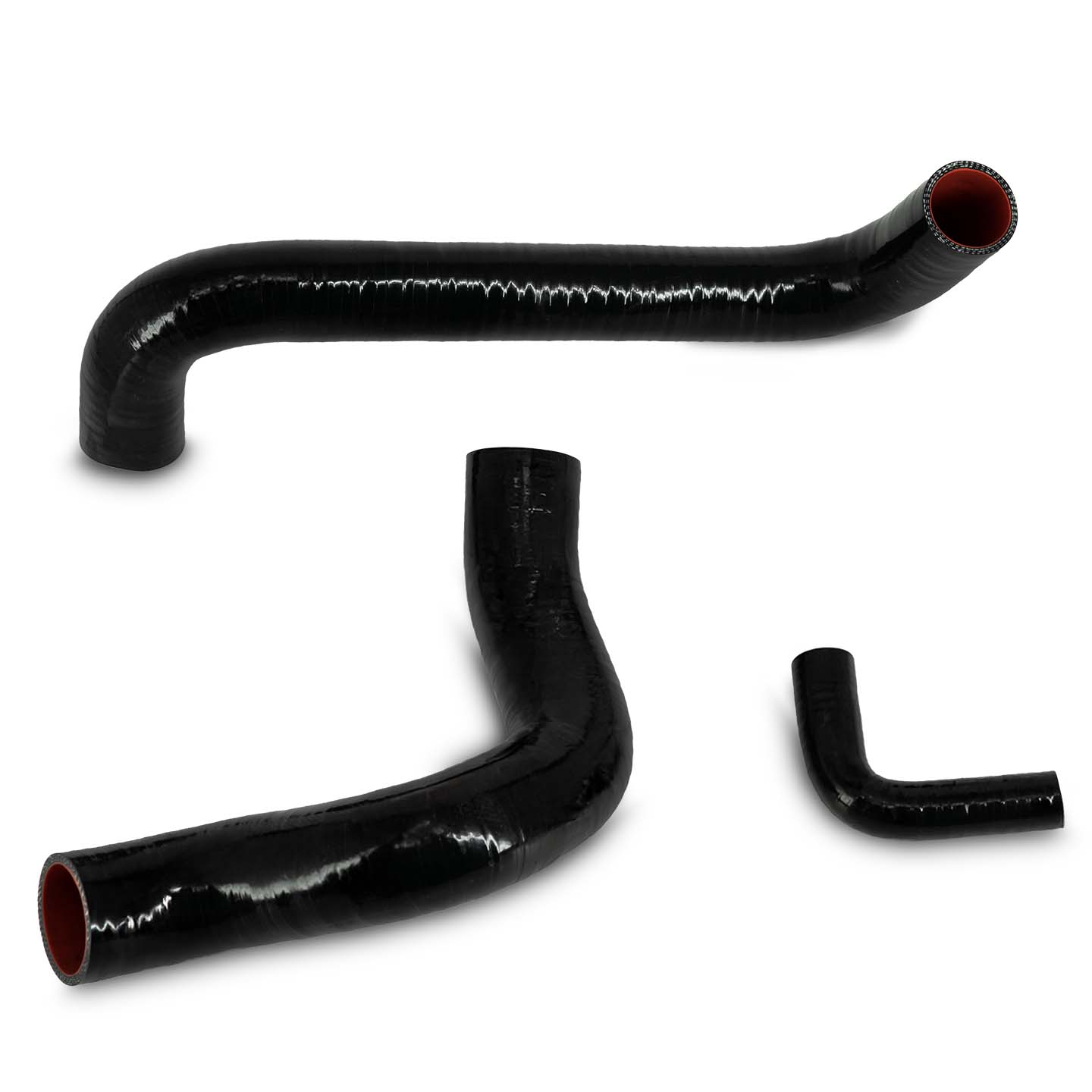

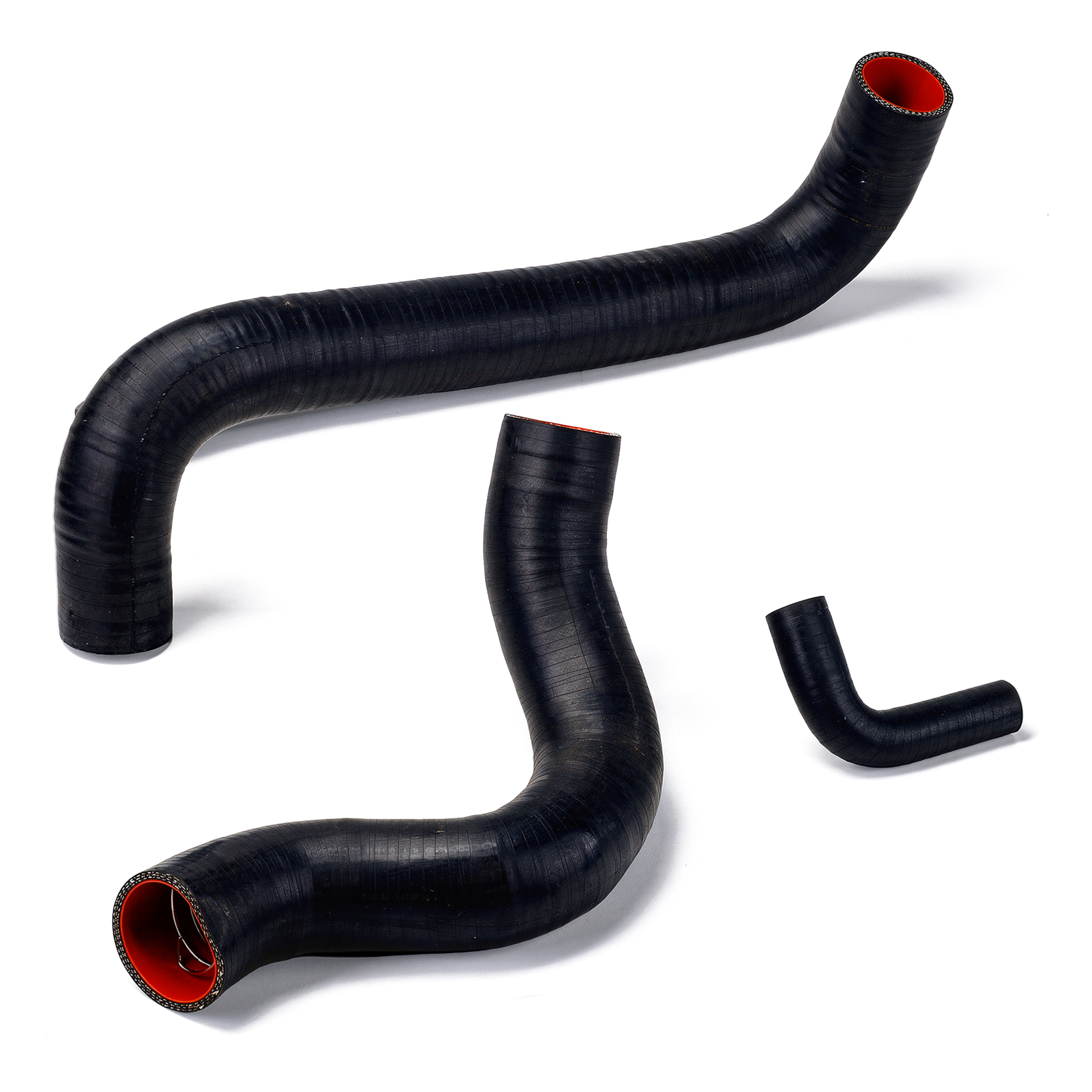

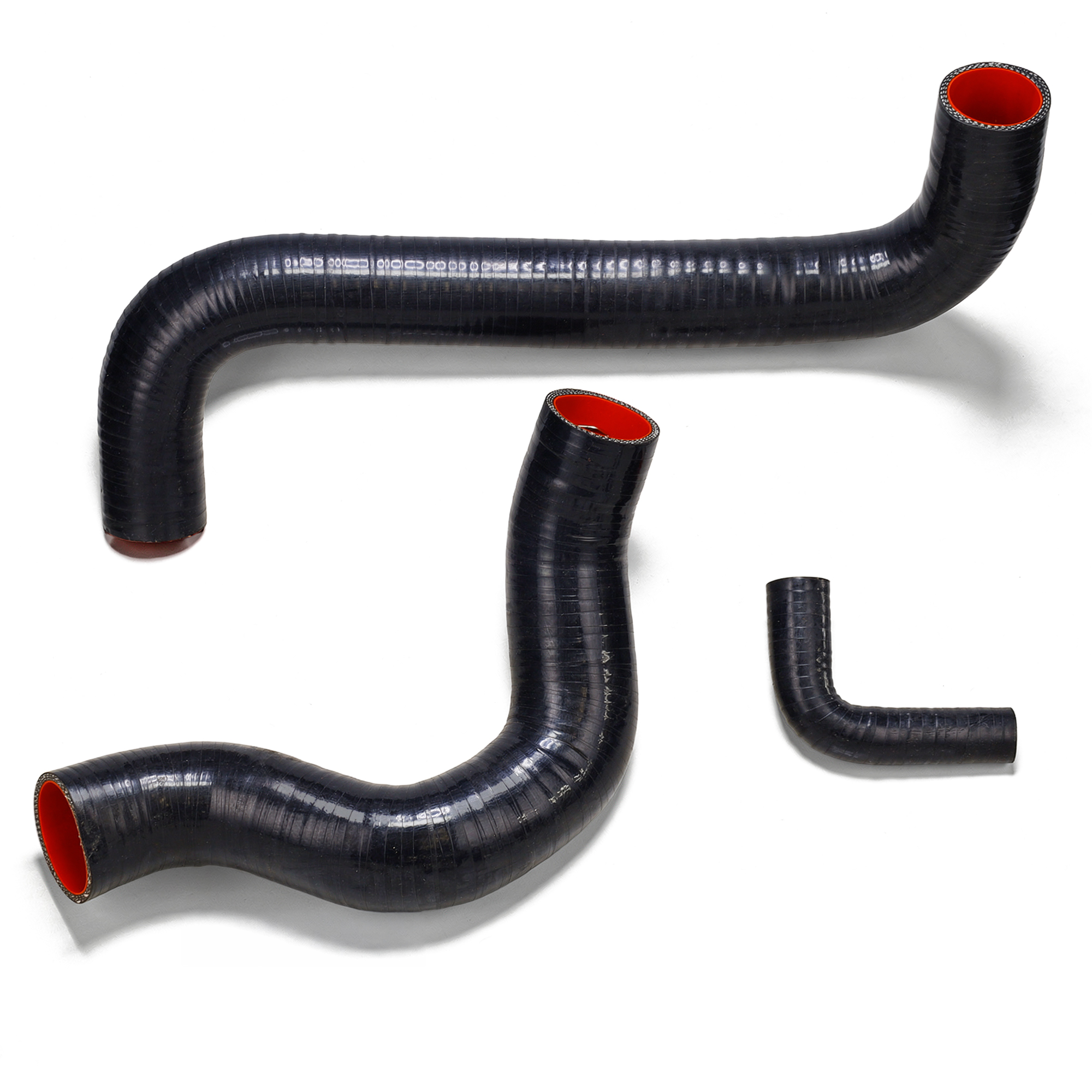

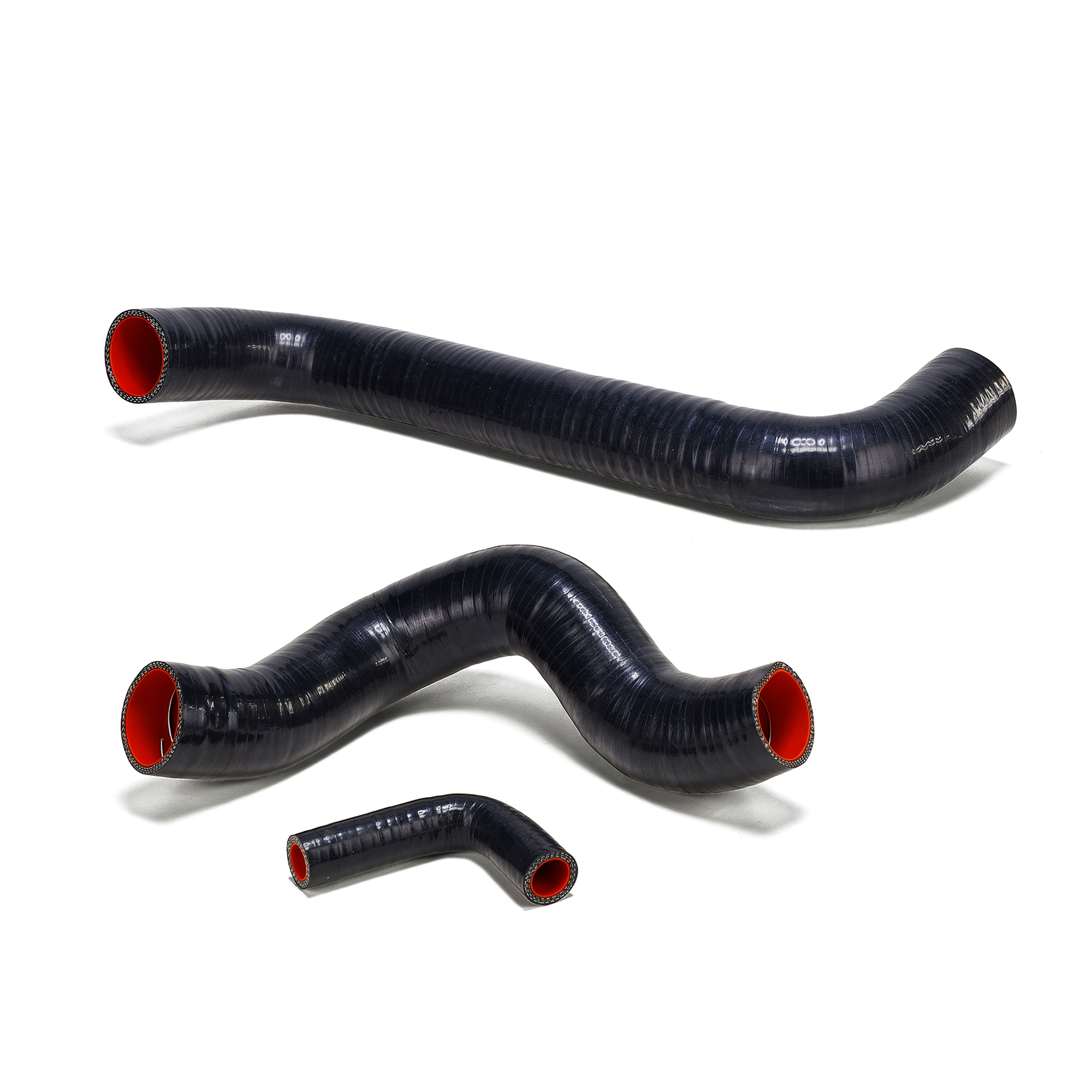

Silicone Radiator Hose Set 69-77 Bronco

Product Overview:

Our silicone radiator hose kits are made with high-grade silicone with heat-resistant nylon reinforcement that provides exceptional and efficient heat reduction and increased pressure tolerance.

Full description

Our silicone radiator hose kits are made with high-grade silicone with heat-resistant nylon reinforcement that provides exceptional and efficient heat reduction and increased pressure tolerance.

Testing is complete, we have ran the proto types in the Nightmare for some time now and can report that the silicone hose set is working great. Just to be safe we had the anti collapse wire added to the lower hose.

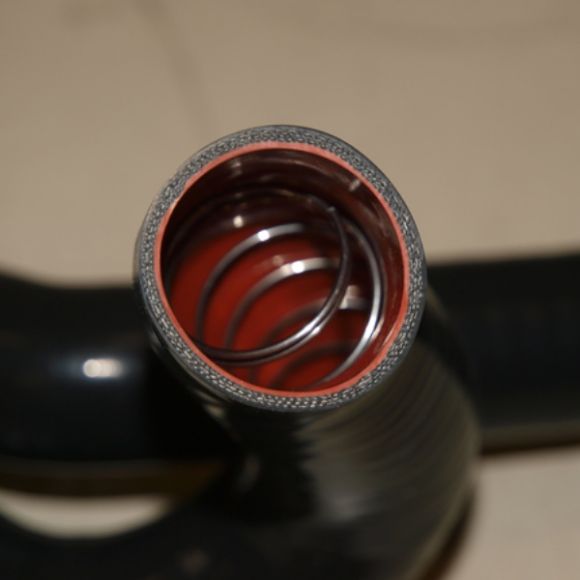

Our silicone radiator hose kits are made with high-grade silicone with heat-resistant nylon reinforcement that provides exceptional and efficient heat reduction and increased pressure tolerance. A stainless steel spring in the lower hose eliminates chance of hose collapse. Silicone last longer and has a higher burst pressure than its rubber counterpart. The silicone hose set will provide a lifetime of good looks and satisfaction.

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Zachary Vazquez, September 10, 2020

Q: Concerning clearance of the fan with the upper radiator hose. I have a 68 Bronco with a 289. Would I have any clearance issues?

⮞ 1 Answer

Answered by ☆ sales - September 11, 2020

A: We would not expect any issues. The silicone hoses are the same shape as their rubber counterparts, and designed for the early Bronco 289, 302, and 351W.

Asked by David Skeens, August 22, 2019

Q: Bought a 73 Bronco with a 302 and a Ron Davis aluminum radiator. Lower hose has a slight split/leak. Want to replace it and might as well do the upper too. Assume this silicone hose kit works with this set up but wanted to ask before I ordered.

⮞ 1 Answer

Answered by ☆ sales - August 22, 2019

A: We would expect no issue. The Silicone hoses are a great upgrade!

NEED HELP? Talk to a BRONCO expert today! (209) 400-7200

PRODUCT REVIEWS

Doug Clay

Reviewed 12/19/2017

The Silicone Radiator hose set fit perfectly. Maybe a slight trim on the thermostat bypass, but still excellent. Good quality hoses!

Michael craft

Reviewed 10/27/2017

Good kit but like a couple others had said, the upper hose needs to have a longer leg that attaches to the radiator. My set up needs about 1.5" longer. the hose should be made longer.

Dutch

Reviewed 12/08/2016

Nice product. Hoses are a perfect fit and rigid no problem with collapsing.

RaucousR6

Reviewed 05/17/2016

They seem like they are of decent quality as far as their construction but if you don't trim the upper hose it WILL make contact with the fanon a 67 with a 289 and you are out, no replacing it without buying a new set..

Sean S

Reviewed 05/08/2016

The little 90 degree thermostat bypass hose was flared at one end and didn't fit my thermostat cover but there was enough play to cut most of it off to make it work.

JSK

Reviewed 08/04/2015

Needed a small (very small) amount of trimming for the perfect fit but as always, great product from WH!

Hank

Reviewed 05/21/2013

These silicone hoses are just the thing for increased reliability. They fit well with the exception of the upper radiator hose being too short where it connects at the radiator. I'm writing this review in hopes that it prompts a design change to make that hose more like the one offered in the standard set (p/n 5023) where that leg of the hose is longer than the end connecting to the thermostat housing. My installation only leaves about 1/2" clearance between the hose and the fan assembly.....I'm not really comfortable with this. This hose set would be perfect if only that hose was longer and able to provide more clearance where required.

Glen

Reviewed 11/15/2011
