Dakota Digital RTX Dash Gauges | 78-79 Bronco & 73-79 Ford Truck

Step up your Dentside's dash game with the Dakota Digital RTX Dash Gauge Kit for 1978-79 Ford Bronco and 1973-79 Ford Truck. This direct-fit system blends the classic factory look with cutting-edge digital performance. From color-changing LED backlighting to performance readouts and customizable messages, this dash is built to handle your drivetrain swap or late-model conversion with style and ease. It drops right into your stock bezel, no guesswork required.

This gauge cluster requires reuse of the stock dash gauge bezel - not included.

Pro Tip: Pair this setup with a GPS-50-2 GPS sensor to skip the speedo calibration process and add even more data like altimeter, compass, and ambient temp.

• Classic Look, Modern Function: Designed to retain the stock appearance while offering full digital control and expanded data capabilities.

• Plug-and-Play Design: Uses your OEM instrument bezel and includes everything you need to install.

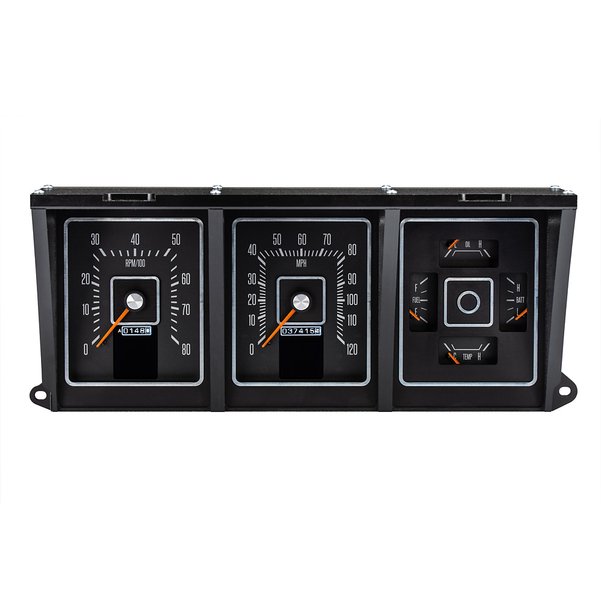

• Six Analog Gauge Displays:

  • Speedometer: 0-120 MPH (optional 0-200 km/h)

  • Tachometer: 0-8,000 RPM

  • Oil Pressure: 0-80 psi

  • Water Temp: 100-260°F (or 40-120°C)

  • Fuel Level: E to F

  • Volts: 9-17 VDC

• Dual TFT Message Centers: Configure to show odometer, trip meters, estimated range, clock, high speed recall, and more.

• Built-in Indicators: Includes turn signals, high beam, check engine, parking brake, cruise, gear position (with GSS-3000 sensor), 4x4, and user-programmable warnings.

• Full RGB Backlighting: 30+ color combinations for needles, sweeps, and display zones. Choose from 12 themes or create your own.

• Integrated Performance Meters: Track 0-60 times, 1/8 and 1/4 mile ET and speed.

• Pushbutton or App Control: Adjust settings from the included rocker switch or use your phone via Bluetooth.

• Mobile App Sync: Configure and view real-time data from your smartphone or tablet.

• Designed and Built in the USA!

Included Sensors:

• Water Temp Sensor with 10 ft harness

• Oil Pressure Sensor with 10 ft harness

• Cable-driven Speed Sensor (replaces stock cable)

• Assorted NPT and metric thread bushings

This RTX gauge kit is made for 78-79 Bronco and 73-79 Ford Truck owners who want modern precision instruments while retaining their classic rig's vintage style.
