Front Disc Brake Conversion, Dana 30/44, 66-75 Bronco SKU: 3005NETW

Christmas Sale! Front Disc Brake Conversion, Dana 30/44, 66-75 Bronco

Front Disc Brake Conversion, Dana 30/44, 66-75 Bronco

Front Disc Brake Conversion Kit Dana 30/44 66-75 Bronco
Purchase Front Disc Brake Conversion, Dana 30/44, 66-75 Bronco
$755.25 Was: $795.00 SKU: 3005NETW
Fits 66-75 Ford Bronco
28 Reviews
Add Wheel Bearings:

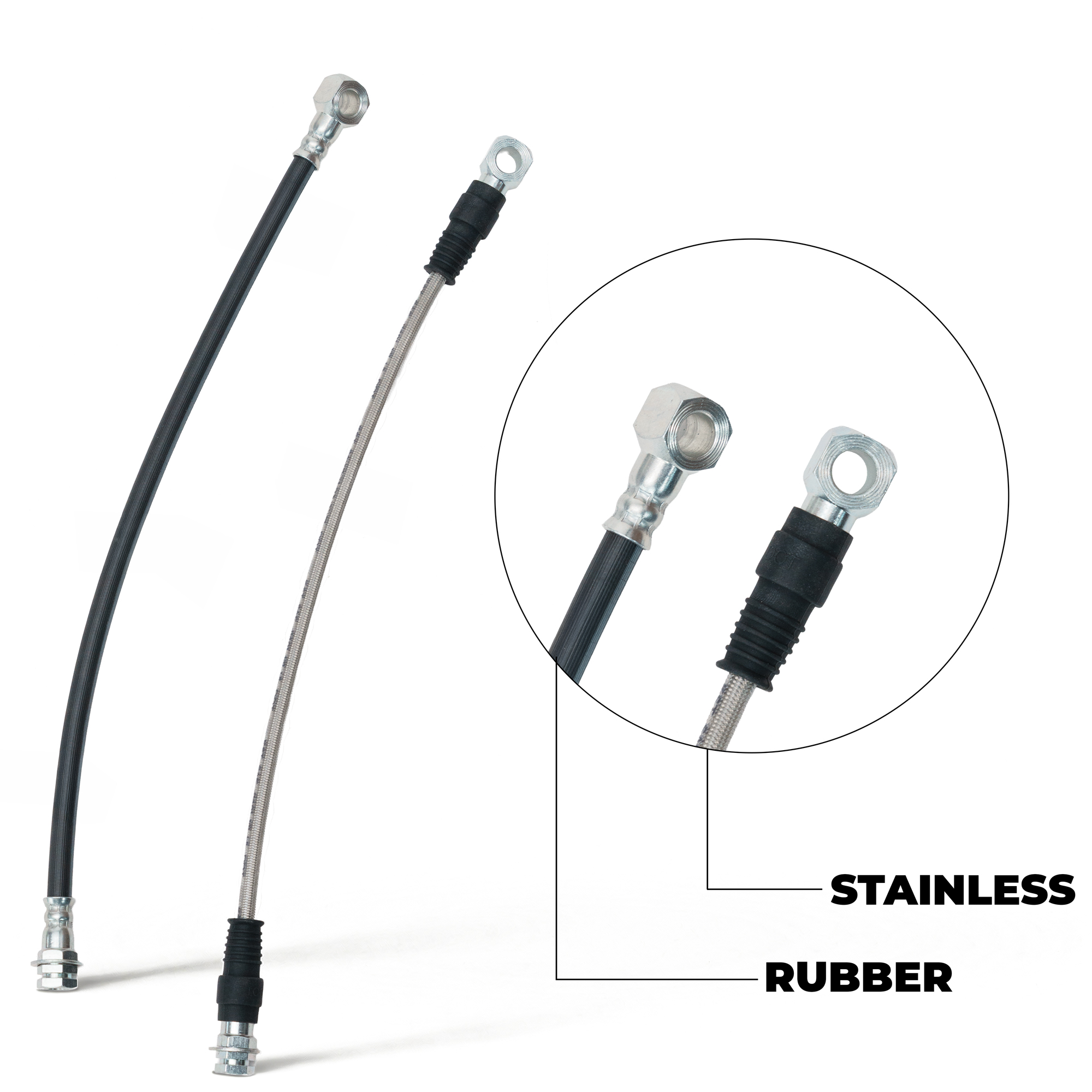

Front Brake Caliper Hoses:

Product Overview:

Add some WHOA to your Bronco's get up and go with the WILD HORSES front disc brake kit. It will work on the Dana 30 or the Dana 44 so if you upgrade to a 44 in the future, your brakes will work on the new front end giving you noticeably improved braking characteristics over the stock four wheel drum set up. All new parts.

Full description

Add some WHOA to your Bronco's get up and go with the WILD HORSES front disc brake kit. It will work on the Dana 30 or the Dana 44 so if you upgrade to a 44 in the future, your brakes will work on the new front end giving you noticeably improved braking characteristics over the stock four wheel drum set up. All new parts.

Early Bronco Front Disc Brake Conversion Kit

Fits Dana 30 or Dana 44 Front End

Add some serious stopping power to your Bronco. The WILD HORSES Early Bronco Front Disc Brake Conversion Kit is designed to work with both the stock Dana 30 and Dana 44 drum brake knuckles (6-bolt). This means you can install the brakes on your Dana 30 and easily transfer them to a Dana 44 if you upgrade in the future. Experience significantly improved braking performance over the stock four-wheel drum setup with this comprehensive kit.

66-75 Ford Bronco Front Disc Brake Kit Features:

  • Versatile Compatibility: Fits both factory Dana 30 and Dana 44 drum brake front ends, allowing for future upgrades without additional brake modifications.

  • All-New Components: Our kits use all new parts—nothing used or rebuilt—and there are no added core charges.

  • Improved Braking: Noticeably better braking characteristics compared to the stock drum brakes.

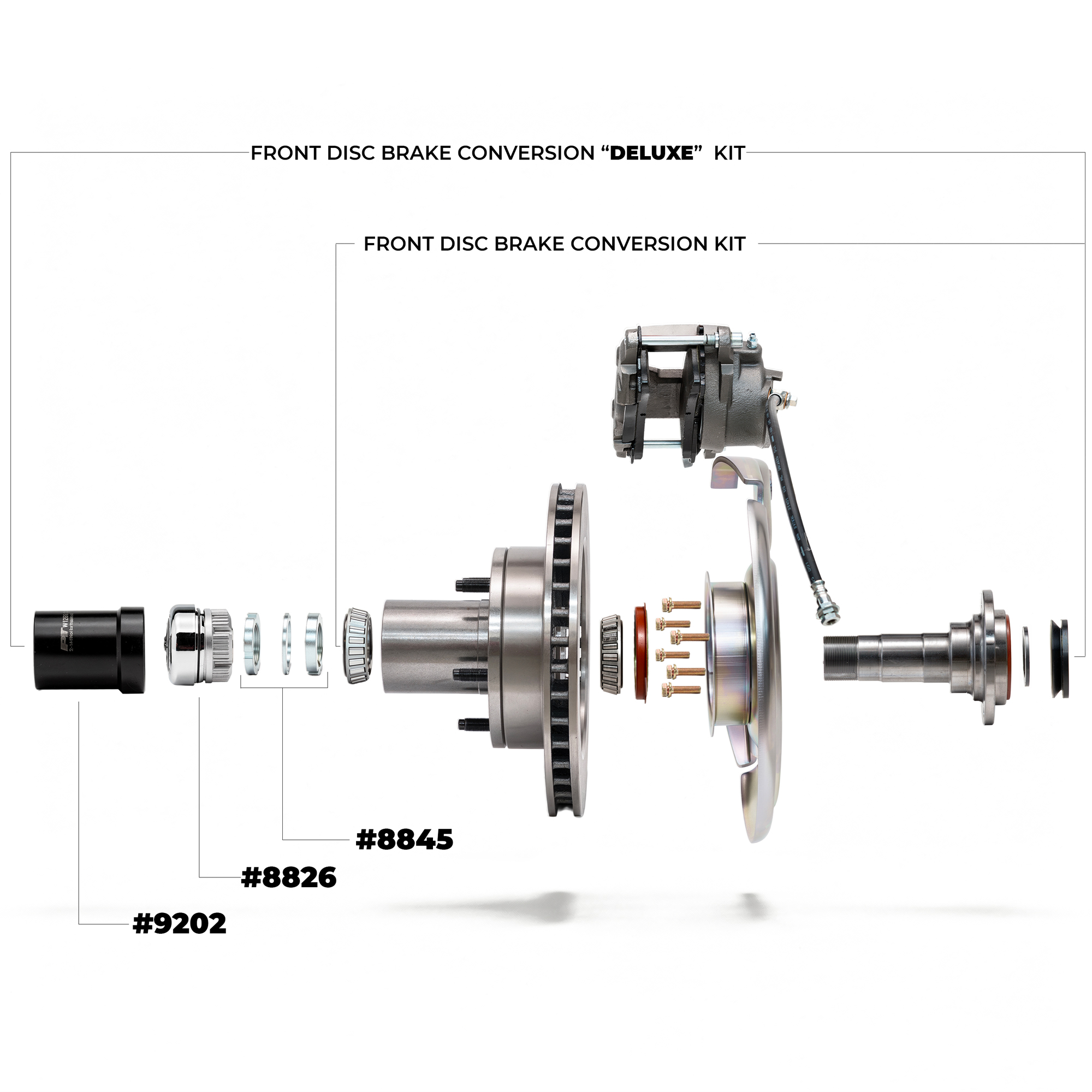

Early Bronco Front Disc Brake Kit Options:

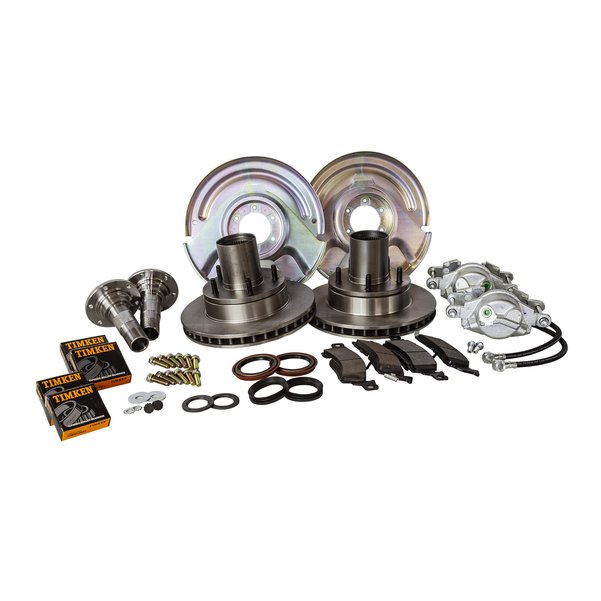

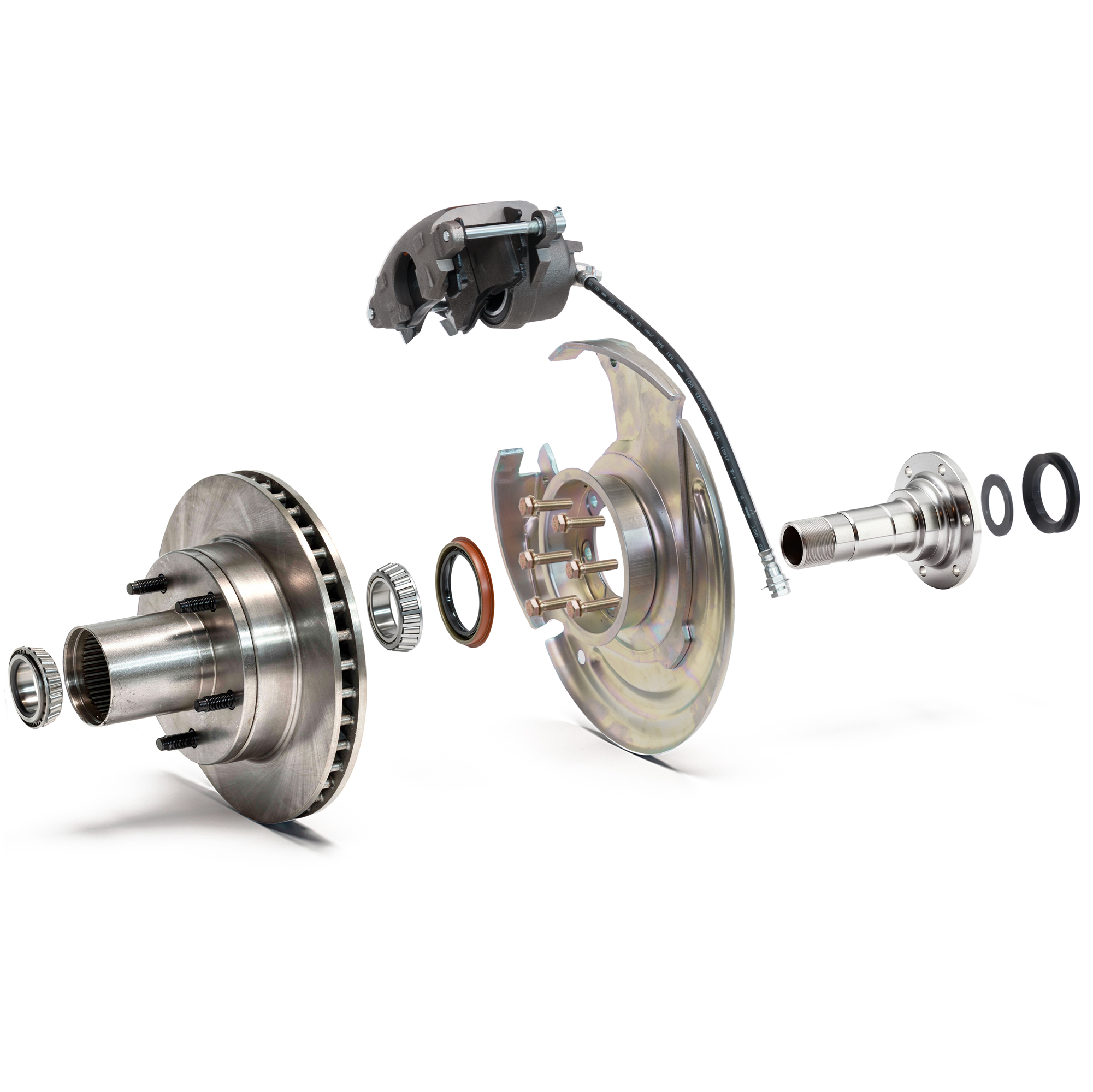

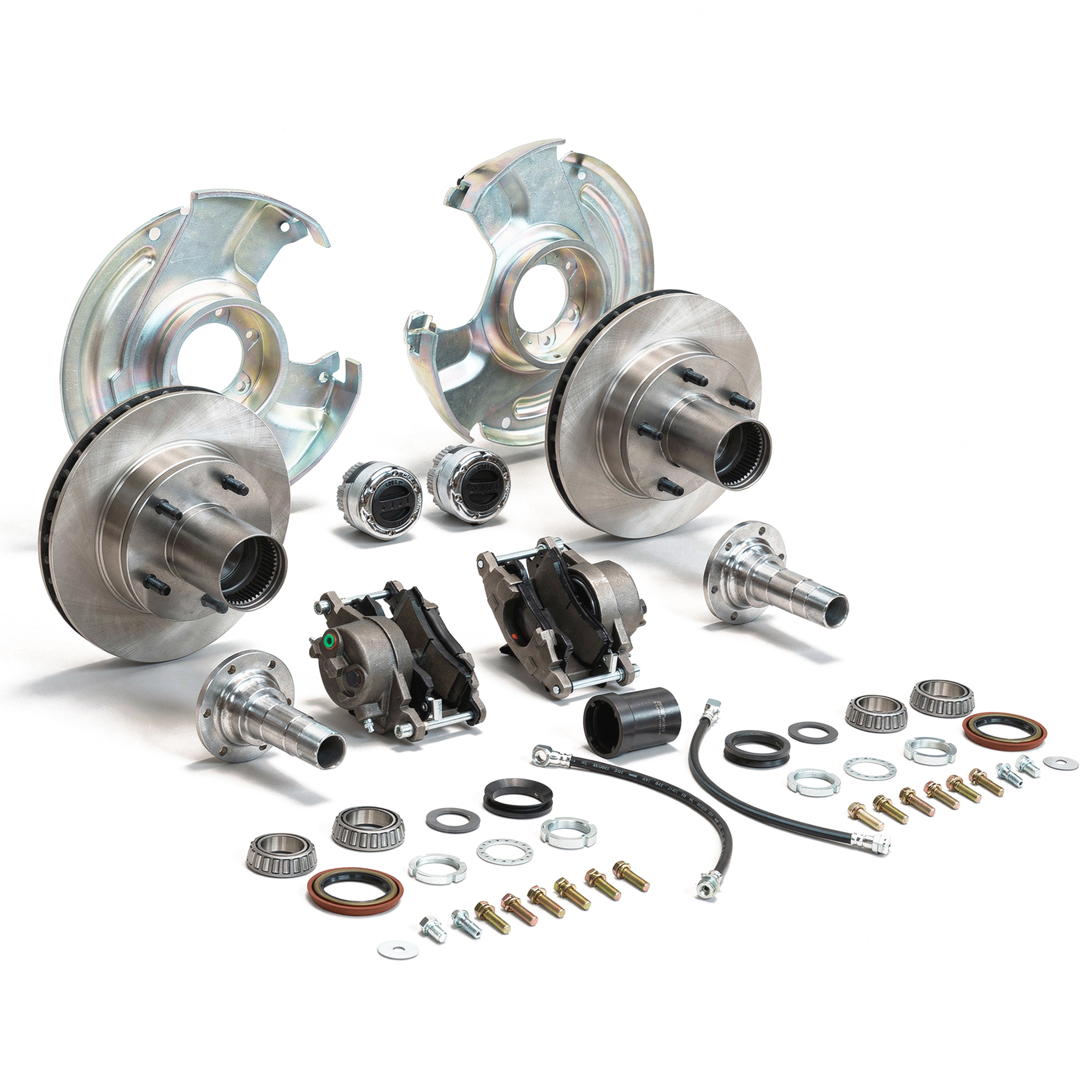

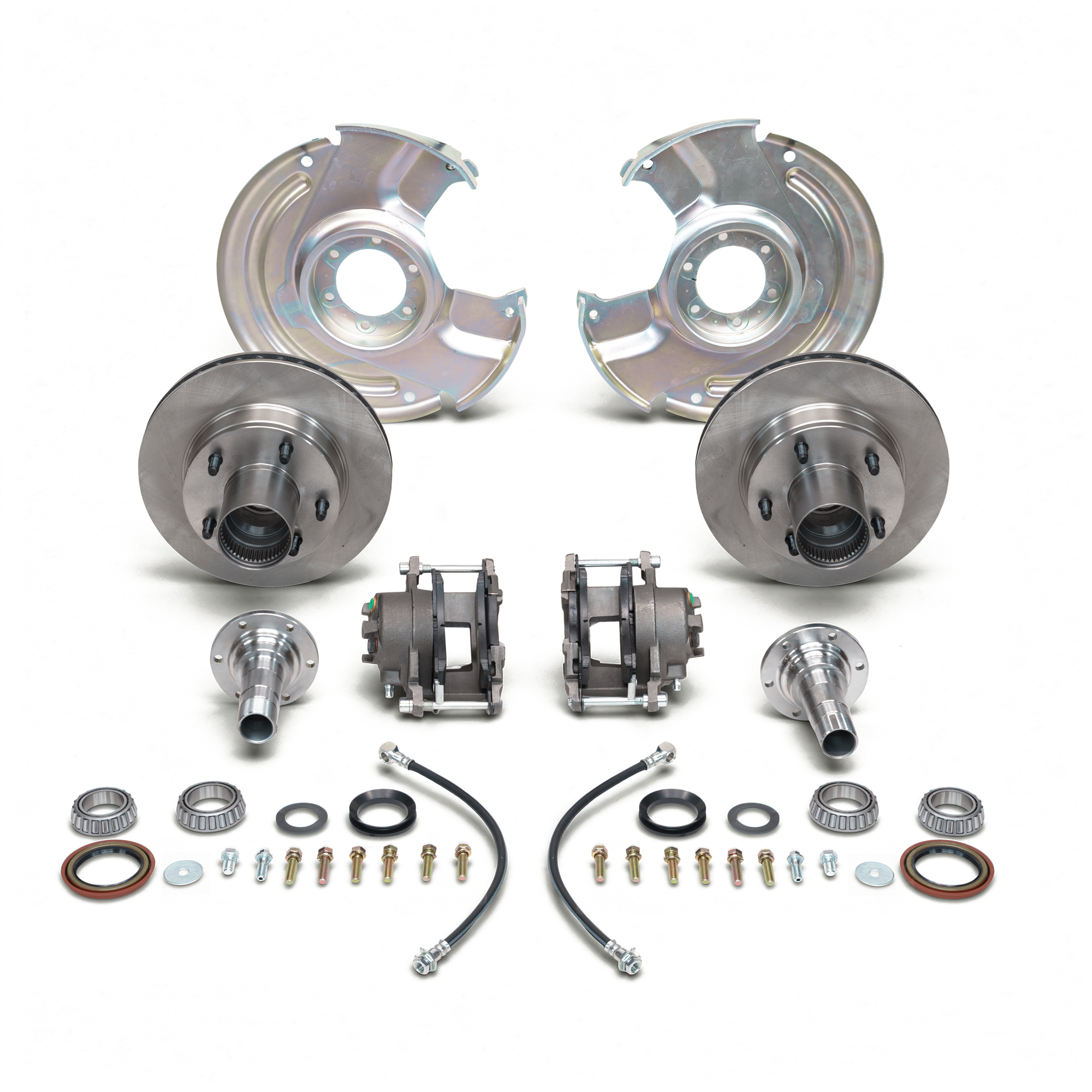

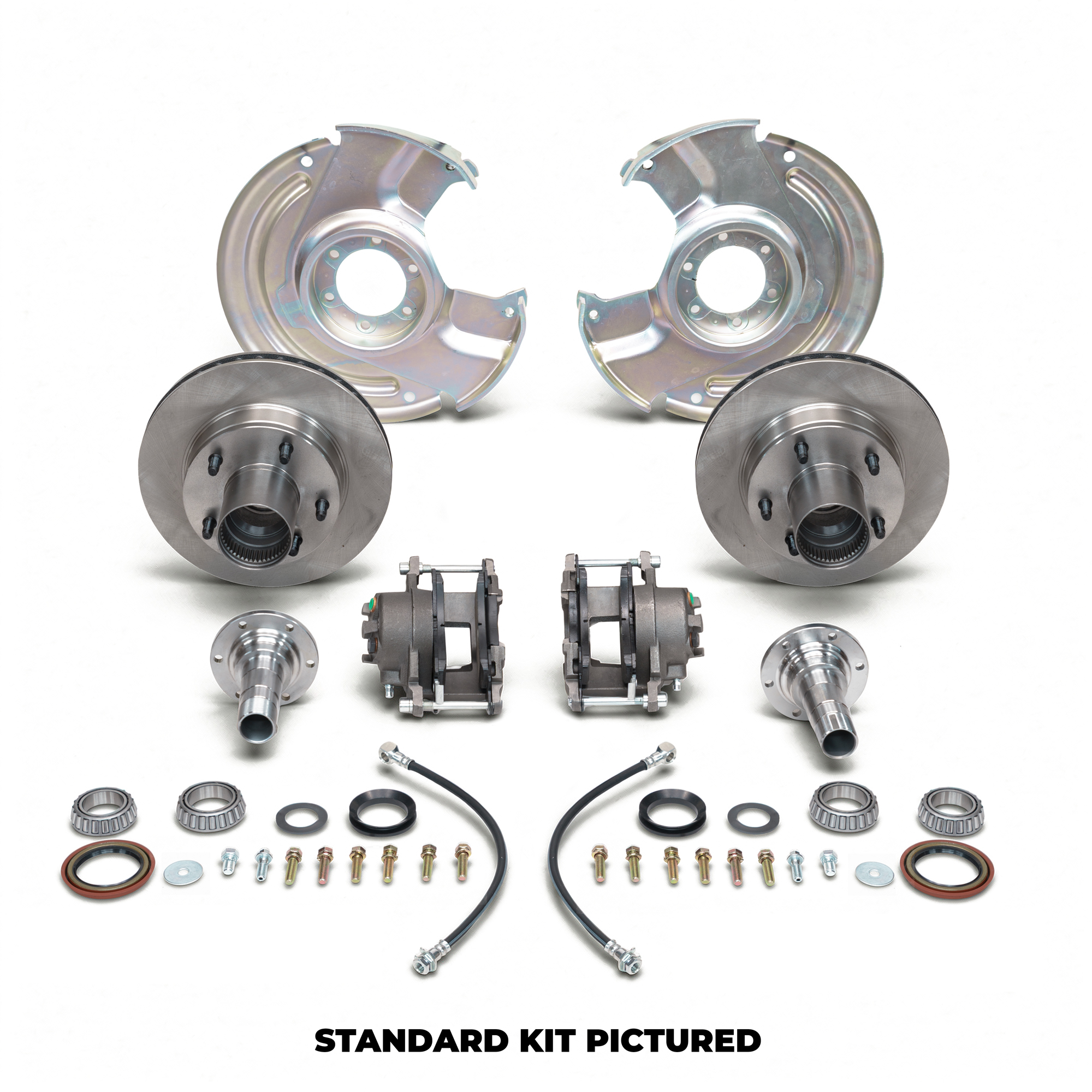

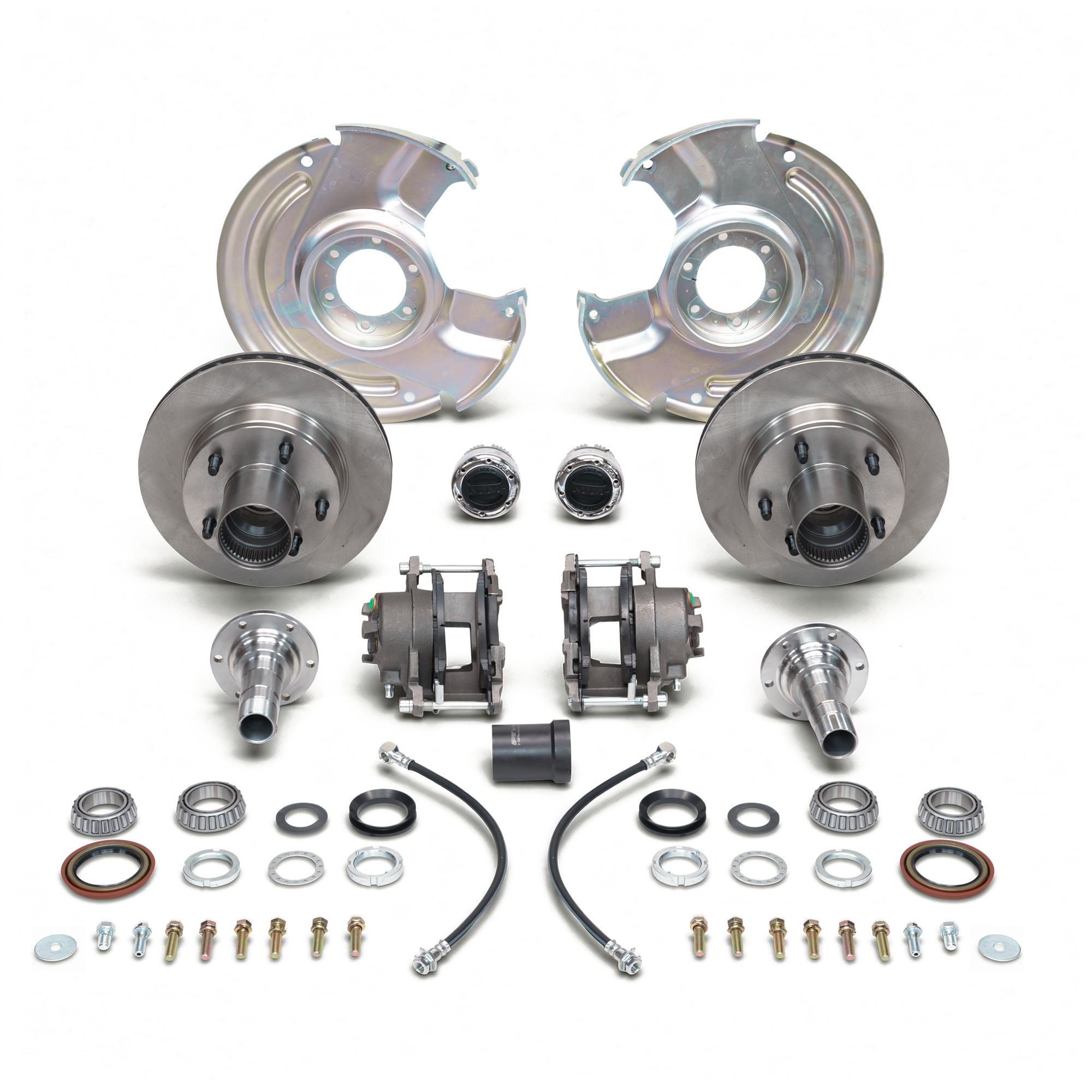

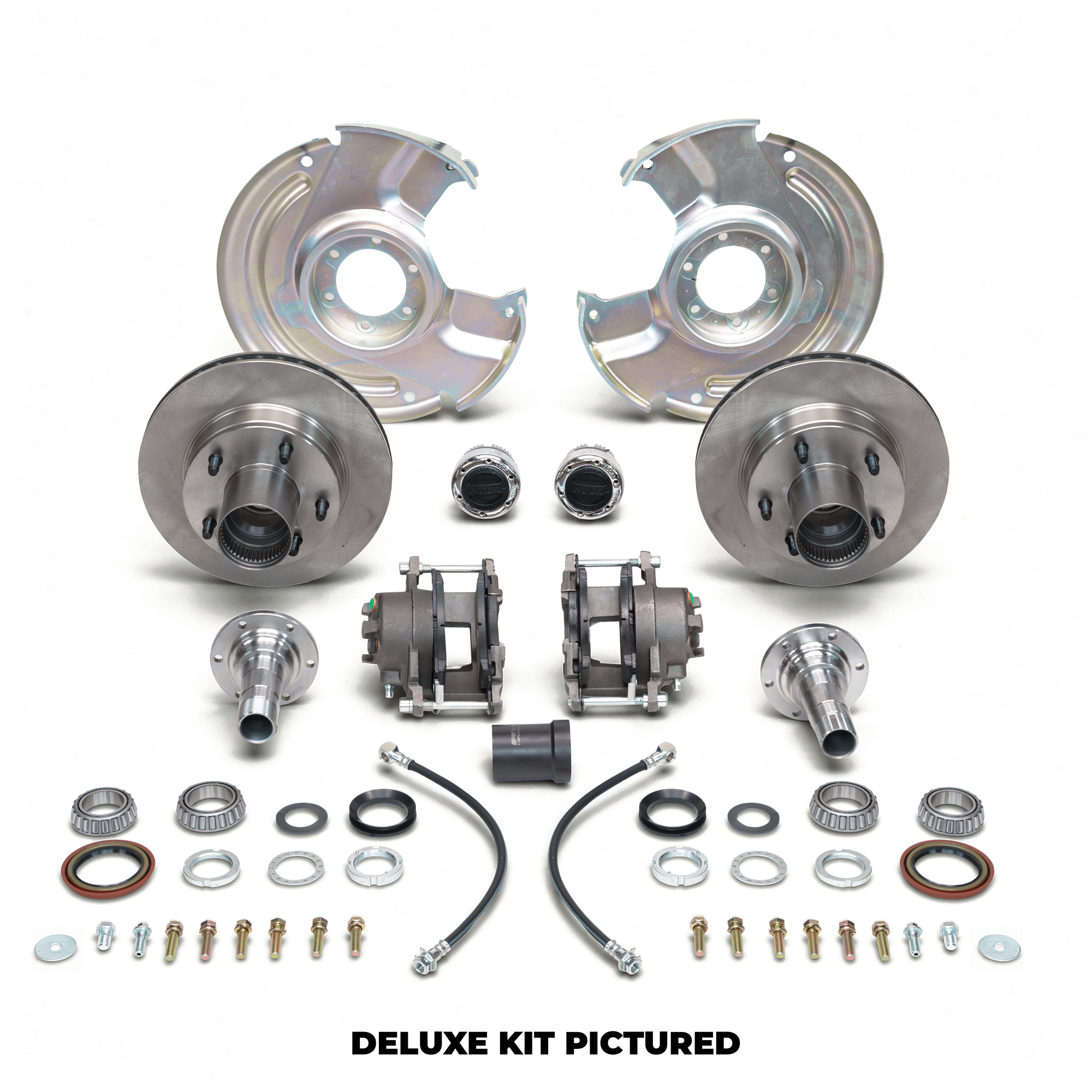

  1. Standard Disc Brake Kit Includes:

    • Caliper Brackets
    • Calipers
    • Brake Pads
    • Spindles
    • Assembled Hub and Rotors with Bearing Races Installed
    • Brake Hoses
    • Hardware
    • Installation Instructions
  2. Standard Disc Brake Kit with Bearings:

    • Includes everything in the Standard Disc Brake Kit plus wheel bearings.

Why Choose Our 66-75 Bronco Disc Brake Conversion Kit?

  • Ease of Installation: Detailed instructions and all necessary hardware included for a straightforward installation.

  • No Core Charges: Enjoy the convenience and assurance of all-new parts without the hassle of core charges.

  • Reuse Existing Bearings: Use your current wheel bearings if they are in good condition, though we recommend replacing them during the disc brake install unless they have been recently replaced.

Additional Considerations:

  • Replacement Locking Hubs: The stock locking hubs may not always be usable, so consider upgrading your locking hubs for optimal performance.


Upgrade your 66-77 Ford Bronco with the WILD HORSES Front Disc Brake Conversion Kit. Order now and enjoy enhanced braking performance with all-new components designed for durability and reliability!

pdf-file

Instruction 1

Review Front Disc Brake Conversion, Dana 30/44, 66-75 Bronco

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Anonymous, December 4, 2023

Q: I have a stock1966 Bronco with a 289. Do I need a proportioning valve for front disk conversion?

1 Answer

Answered by sales - December 15, 2023

A: We would recommend a disc/drum or adjustable proportioning valve. It is not required, but does help with the front to rear brake bias.


Asked by Anonymous, October 29, 2023

Q: What brand is the brake pads?

1 Answer

Answered by sales - November 1, 2023

A: Unfortunately the manufacturer is not labeled on the pads.


Asked by Chris Pedersen, August 13, 2022

Q: what bolt pattern does the hub have, im planning to get new wheels and tires, i need to know what to buy.

1 Answer

Answered by sales - August 15, 2022

A: The hubs have a 5 x 5.5 bolt pattern.


Asked by Greg, January 4, 2022

Q: I have a set of Western Turbine 15 wheels, will these clear the calipers on the conversion kit?

1 Answer

Answered by sales - January 5, 2022

A: Usually yes. We are not immediately aware of any issue. We expect no trouble, but do not see, and have not seen or fit every wheel, so we are surprised from time to time.


Asked by Anonymous, May 15, 2021

Q: Is the caliper bracket and the rock guard one piece?

1 Answer

Answered by sales - May 19, 2021

A: Yes. The caliper mount and plate are a 1 piece design.


Asked by Jacob, April 27, 2021

Q: I have a 1968 F100 4x4 front Dana 44, but the knuckles are the same as the Bronco Dana 30. Will this kit work for my application?

1 Answer

Answered by sales - April 27, 2021

A: We are not aware of any issues. We would upgrade your locking hubs if you have not already, to simplify the installation. Like #8826.


Asked by Andrew, March 28, 2021

Q: do not see spindle bearing in the picture, will the spindle bushings fit these spindles?

1 Answer

Answered by sales - March 29, 2021

A: The spindles come with the spindle bearings installed. The spindle bushings would be compatible as well, but extra.


Asked by Anonymous, March 7, 2021

Q: I'm running the 3005netw on a 71 Bronco. scraping noise developed on drivers side when applying brakes yesterday. Pulled wheel and found that both caliper pins ( long pin with threads near hex nut that run from one side of caliper to other) were missing. Is it possible to purchase these individually? Thanks!

1 Answer

Answered by sales - March 8, 2021

A: We do not keep them, but they should be easy to find locally. Possibly the HELP section. It is a GM caliper pin, like ~Dorman Brake Caliper Bolt/Guide Pin 13897, or similar.


Asked by Jason, February 28, 2021

Q: Do you know if this kit will fit under 15 inch aluminum wheels? I see they should fit steel, but no mention of aluminum. Thank you.

1 Answer

Answered by sales - March 1, 2021

A: Normally aluminum wheels will have more clearance than the stock steel wheels. Should not be a problem.


Asked by john, March 3, 2020

Q: If I go with the front disk brake kit now and add the power brake booster later, does it involve any extra work by not doing it at the same time?

1 Answer

Answered by sales - March 3, 2020

A: You will need to bleed the brakes again. We see incremental upgrades all the time, especially front discs first, and power brakes down the road.


Asked by Caleb, February 18, 2020

Q: Will this kit fit under the original 15 Ford rims?

1 Answer

Answered by sales - February 18, 2020

A: Yes, normally there is no issue with this kit and the stock 15 wheels.


Asked by Mike, February 10, 2020

Q: How long are the lugs on these rotors?

1 Answer

Answered by sales - February 10, 2020

A: There is approximately 1 of usable thread.


Asked by Nick, April 25, 2019

Q: Do any of the kits allow using original lockout hubs for front disc brake conversion? Trying to keep the original look.

1 Answer

Answered by sales - April 25, 2019

A: If you have original axles, with a tapped hole in the end, you can run the stock locking hubs with the bolts and washers included in this kit. Otherwise, the Wilwood kits re-use the stock drum hubs and spindles, so you could use the stock locking hubs with those as well.


Asked by joey, June 16, 2016

Q: I have a 1975 f100 4x4 with a DANA 44 drum brake, open knuckle high pinion . Will this kit work for my application?

1 Answer

Answered by sales - June 20, 2016

A: Our kit uses a 6 bolt spindle like the Bronco Dana 30 and Dana 44. As long as your F100 uses the Dana 6 bolt spindle, everything else should bolt up just fine.


Asked by Dan, January 8, 2016

Q: Why supply new spindles? I'm guessing they have smaller O.D. to fit inside the caliper bracket. If that's the case, can I machine my stock 6 bolt spindles to fit?

1 Answer

Answered by sales - January 8, 2016

A: The new GM spindle is used to put the rotor in the correct position for the calipers to work properly.


Asked by Kade, October 4, 2015

Q: When I order replacement pads and or rotors do I order them for the 76-79 bronco?

1 Answer

Answered by sales - October 5, 2015

A: The hub and rotor assemblies will be for a 76-79 Bronco. The pads are a 52 style like is used in a 75 era Blazer.


Asked by Gene, September 10, 2013

Q: I have a 66 bronco. Will my locking hubs work with this kit or do i need the warn kit?

1 Answer

Answered by 8578 - September 10, 2013

A: You will need the Warn kit.


Asked by David, April 14, 2013

Q: One of your competitors states that I need to machine my Dana 30 outer axle shaft for the kit to work. With your kit do I need to do any machining.
Thanks

1 Answer

Answered by WH tech - April 14, 2013

A: We've used the same style kit for over twenty years. No machining necessary.


PRODUCT REVIEWS
Bill
Reviewed 01/06/2023
Kit fit perfectly on my 73 ford f100 4x4. Instructions were great and very detailed. Only a slight modification had to be made which anyone could do. Everything that I needed was there and nothing was missing. Truck stops a whole lot better now. Would 100% recommend!

Review Answer Store Owner Icon
Wayne Hutchings
Reviewed 06/21/2022
I was looking for the stock brake kit since the PO had converted my 1973 to a 76-77 disc system. This kit is for "conversion" to the GM style and not conversion from drums to discs. Otherwise, the kit looked great and had all the necessary parts. I was out the high dollars for the return shipping.
Note From WILD HORSES: We are super bummed when this happens and ask everyone to make sure you understand all the info provided with our part descriptions. If you see something you think would be useful for us to add to the description please let us know [email protected] . We do offer the FORD based front disc brake kit that works for the stock 76-77 5 bolt knuckles #3001. For anyone reading this review if you need to and you are not sure of what you have we can help you identify it. Give us a call 209-400-7200

David
Reviewed 07/10/2022
Front disc brake assembly arrived very fast. Was packaged in very sturdy boxes and brake kit was complete and undamaged. Parts are high quality and fit excellent! Would recommend to anyone who wants to upgrade early Bronco to front disc brakes!

Tony Narduzzi
Reviewed 10/25/2019
My front axle was converted to disc brakes more than a decade ago. The time came to replace the brakes and bearings; I figured it was also a good time to replace the hoses, dust shields, spindles, hubs, etc. Rather than piece it all together separately, this kit seemed like the best way forward. I am happy with my decision to buy the entire kit; it may not have been necessary but it sure made the job easy to finish. Thanks for offering a complete kit like this. I am giving only 4 stars because one of the dust shields arrived severely bent; something that probably could have been noticed prior to shipping. However, Wild Horses made it right and shipped a replacement out to me quickly, with a return label for the bent one.

Darren S Simmons
Reviewed 07/11/2019
Ordered the front super deluxe Disc brakes kit comes with everything you need and I was able to retain my stock locking hubs straight forward and easy installation thanks Wild Horses ... and yes I would love to win a T-SHIRT....lol

morgan mccomas
Reviewed 02/14/2019
nice kit

Steve Schmid
Reviewed 02/12/2019
This is one of the best disc brake conversion kits for the Bronco front brakes yet! I have done several conversions and this one is the top choice. Comes complete with everything needed and is easy to install, provided you have some fair mechanical skills. I was able to use the factory aluminum wheels that cam on the Bronco, other s sell kits where this is not the case. Well done Wild Horses 4X4.

Joe
Reviewed 02/14/2018
This kit is the single best upgrade I have done on my Bronco. It makes daily driving much easier and safer. I would strongly recommend this kit to anyone looking to upgrade their front end in any way. WH makes this kit even easier to install with their strong customer support (I emailed Paul on a Saturday morning and he called me immediately to help me resolve some questions). I could not be happier!

Dutch
Reviewed 12/08/2016
Great product. Bolts right in and easy to install. I would recommend this kit to anyone.

T Brainard
Reviewed 11/06/2016
Clear and detailed instructions, simple installation !!!

DDean
Reviewed 03/15/2016
Good products

Guy Schullerts
Reviewed 10/18/2015
kit had everything I needed, bearings, seals, hoses, it was perfect! The one thing I would say it needs is more pics(as everyone else stated).

Steven
Reviewed 12/23/2014
Great kit! Everything needed is there. Don't forget to order new brake hoses from master to prop valve.

Darius
Reviewed 02/04/2020
I replaced my old drum brakes with the front disc brake conversion kit with the new wheel bearings. The kit came with everything in two boxes, one for one side and one for the other. Everything was there along with instructions and the shipping cost was not cheap, but it was much more reasonable than another Bronco house who wanted an insane amount to ship it to me in Arizona. The install went great and I am happy with it. I do not have a brake booster on it yet but was told by others that by putting one on will really make a big difference as well. I hope Wild Horses sells this as I have not checked yet.

ScottZ
Reviewed 09/22/2014
Really great product. Best upgrade to my 72 ive made so far.

nick
Reviewed 09/16/2014
Awesome. It worked great. Highly recommend this kit.

Smiddy
Reviewed 02/05/2014
I have a 69 with the d30 upfront. Everything fit great and had no issues. Bronco stops far better now and straight. I have rear drums and a booster. I also purchased the prop-valve bracket. It put it in the perfect location.

JRAllen
Reviewed 06/22/2013
The kit was awesome - everything I needed was included. Installation was straight forward and simple. Could not be more satisfied!

PE racing
Reviewed 04/27/2012
Really enjoy the stopping power of having front disk brakes. Kit was easy to install, however It would be nice to have more pictures with instructions. Kit is complete but you may want to consider replacing outer axle seals and U joints while you are in there. Better to buy ahead of time so your not running around looking for parts.

greg j
Reviewed 09/30/2011
This kit is amazing. I had never even taken a locking hub off before this. After some initial hick-ups because of inexperience, this thing went on like clockwork. To the rookies like me, just take your time and after one wheel the other side will go on in an hour or less. Doesn't even feel like im driving a bronco anymore!

Marc Baeulieu
Reviewed 09/26/2011
I thought the Kit was very inclusive and the only thing extra I needed was the wheel bearing Grease. I have a little trouble with my ordering information but Wild Horse's Great customer service cleared it up promptly by giving me a call and sending an Email. I got everything very quickly and Installation was a breeze with the Instructions.

BillyJ
Reviewed 08/31/2011
Very Good Quality

prosys1
Reviewed 08/02/2011
So far it's been very straight forward. Only 1 phone call to WH, and it was answered right away. Quality of the parts are very good and I should know since I'm a machinist.

71BRONCO71
Reviewed 06/01/2011
This kit has everything needed to simply bolt on and go. No need to look up multiple part numbers or search junkyards. This kit can be added to your Bronco in a weekend in the garage.

Just for Fun
Reviewed 10/11/2010
Very nice kit - quality parts. It would be nice to have improved instuctions with some photos showing steps and completion. The customer service was, as always, great. I also added the Power Booster and Bracket - another great product. Unbelievable difference in the stopping power. I highly recommend upgrading.
