Power Brake Kit w/Wilwood Black Tandem Master Cylinder, 66-77 Ford Bronco SKU: 3071

Power Brake Kit  w/Wilwood Black Tandem Master Cylinder, 66-77 Ford Bronco

Power Brake Kit w/Wilwood Black Tandem Master Cylinder, 66-77 Ford Bronco

Power Brake Kit w/Wilwood Black Tandem Master Cylinder 66-77 Bronco
Purchase Power Brake Kit w/Wilwood Black Tandem Master Cylinder, 66-77 Ford Bronco
$562.99 SKU: 3071
Fits 66-77 Ford Bronco
0 Reviews

Product Overview:

This kit will help ease your pain. With the WH kit there is no need to modify the inner fender. The brand new, dual diaphragm booster fits right in place.

Full description

This kit will help ease your pain. With the WH kit there is no need to modify the inner fender. The brand new, dual diaphragm booster fits right in place.

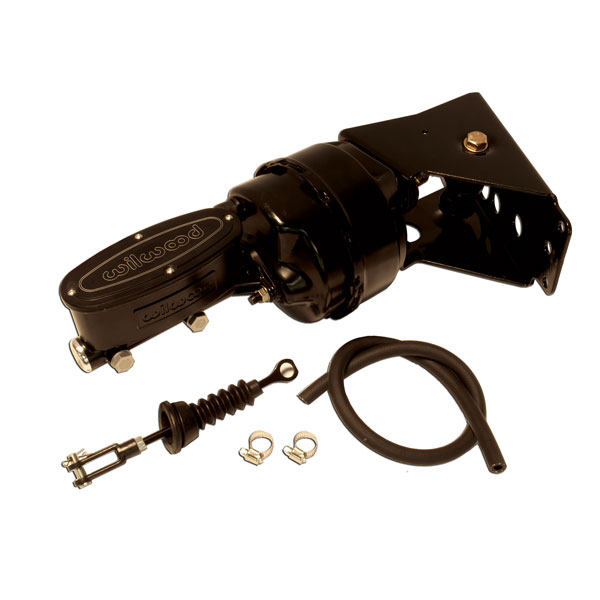

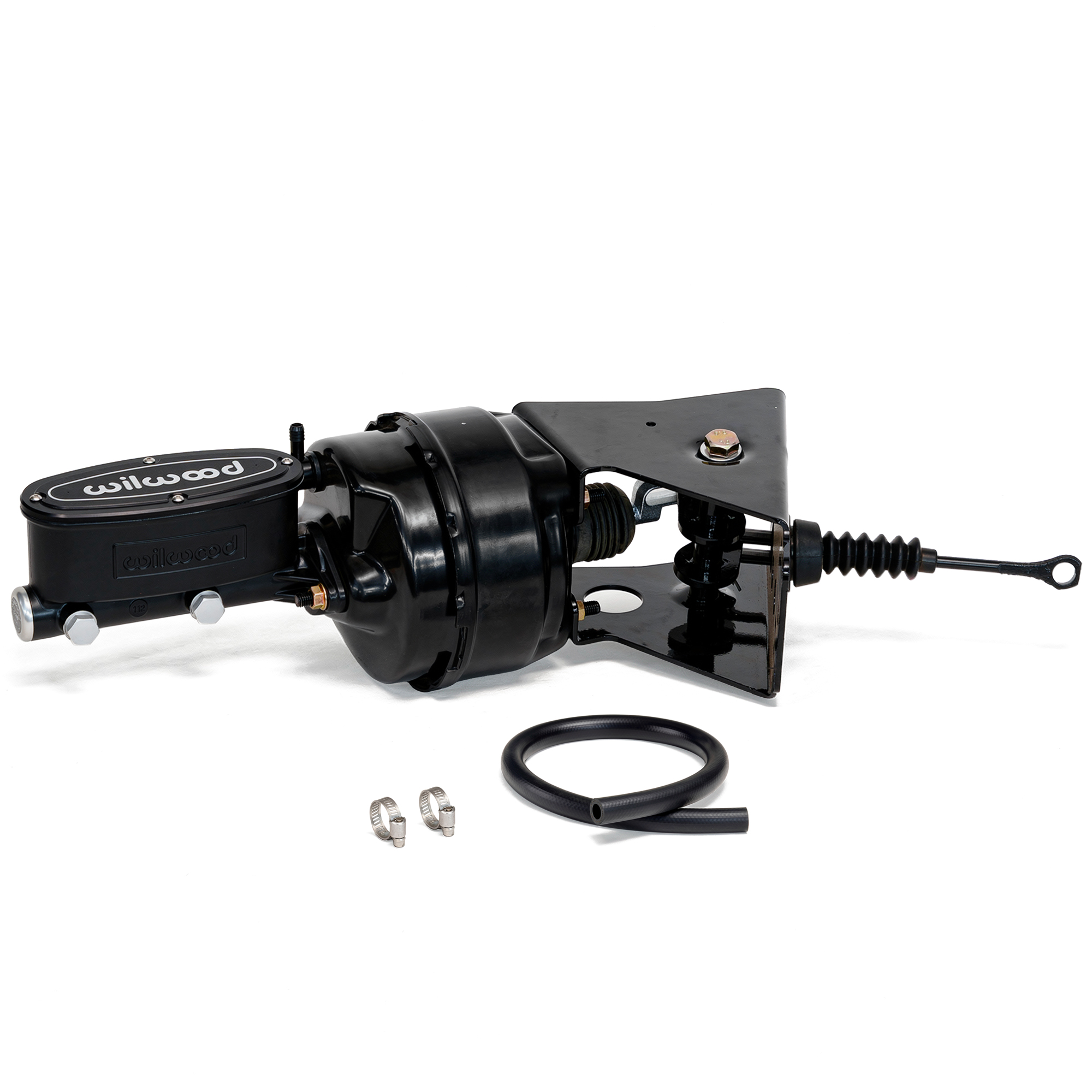

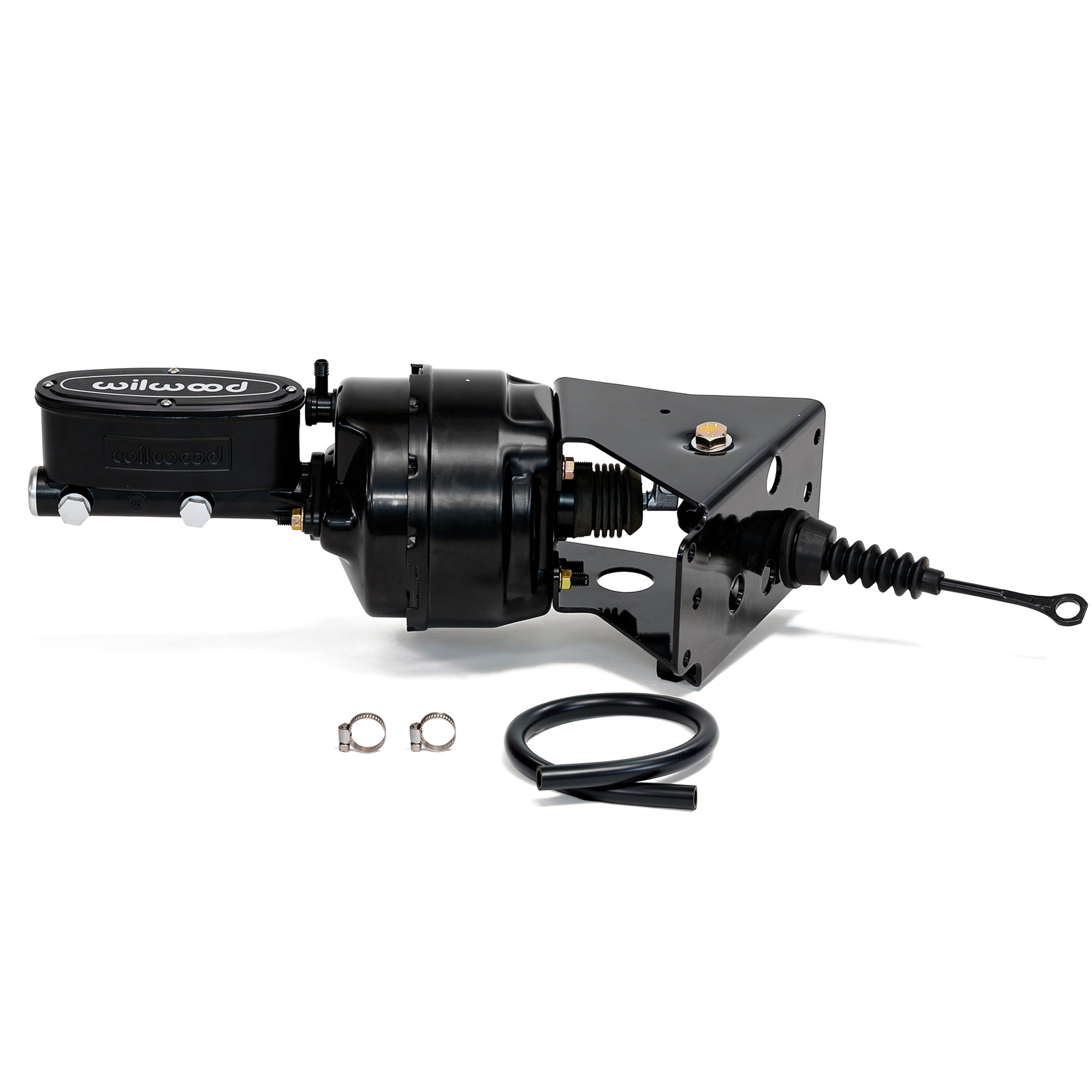

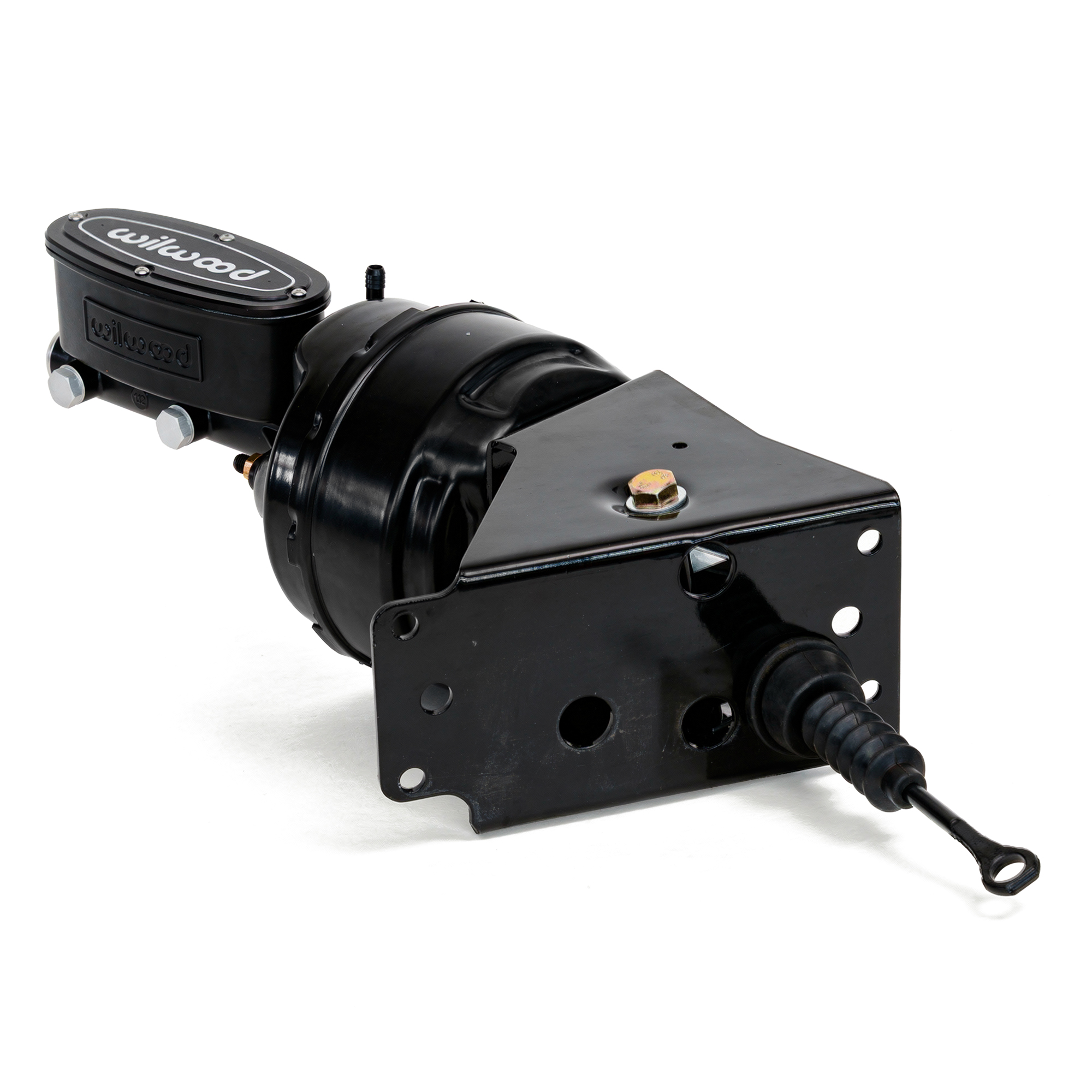

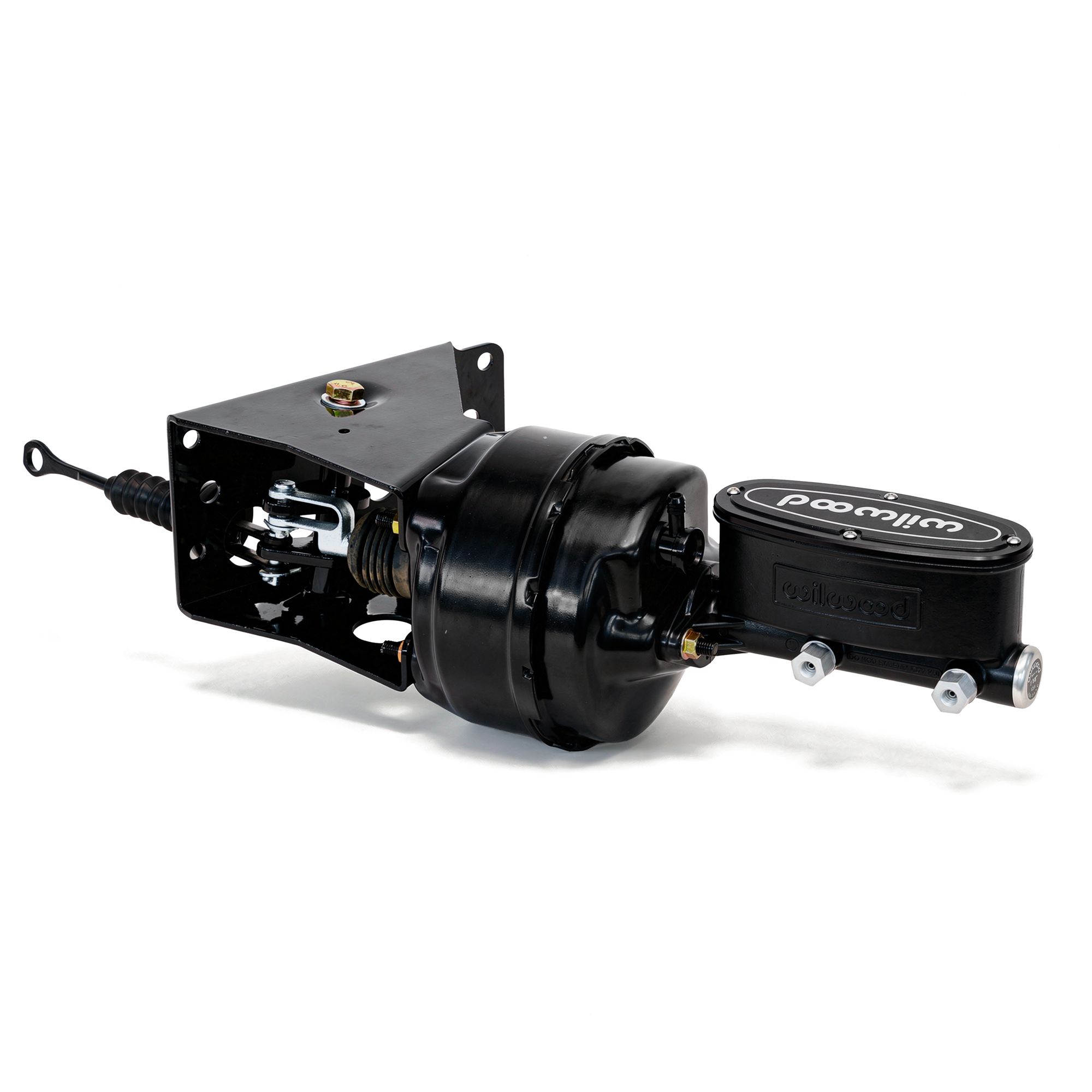

So you're tired of holding back those horses at the stop light. This kit will help ease your pain. With the WH kit there is no need to modify the inner fender. The brand new, large dual diaphragm, booster fits right in place. Our black powder coated bracket holds the booster and the WILWOOD master cylinder to the fire wall.

The Wilwood tandem aluminum master cylinder is machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. They look super trick and add a special high performance touch of class under the hood.

Brake lines are optional because of all the custom things you might be doing such as brake lock etc.
pdf-file

Instruction 1

Review Power Brake Kit w/Wilwood Black Tandem Master Cylinder, 66-77 Ford Bronco

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


Asked by Anonymous, October 5, 2022

Q: Will this setup interfere with the 5.0 upper intake ?

1 Answer

Answered by sales - October 11, 2022

A: We are not aware of any clearance issues with this setup.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by dwayne, May 26, 2021

Q: i have been using this kit no 3071, i realize i purchased it about 4 years ago. The booster appears to be leaking pressure when the brake is applied. I removed the boot over the push rod and had someone hit the brakes and i can here it leak. DO you offer a replacement booster that i can purchase or know where i can find one that will last?

1 Answer

Answered by sales - May 26, 2021

A: Yes, the replacement booster only, is part # 3055.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Anonymous, May 26, 2021

Q: will this work with disc front and drum rear? I should have inquired about that long ago.

1 Answer

Answered by sales - May 26, 2021

A: Yes, either as is, or possibly better with a disc/drum or adjustable proportioning valve.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by dwayne, April 22, 2020

Q: what is the bore on the wilwood MC?

1 Answer

Answered by sales - April 22, 2020

A: We use the 1 1/8 bore Wilwood master cylinder. It reduces the pedal travel, over the 1 bore version.

Know the answer? Add it here.

Know the answer? Add it here.
