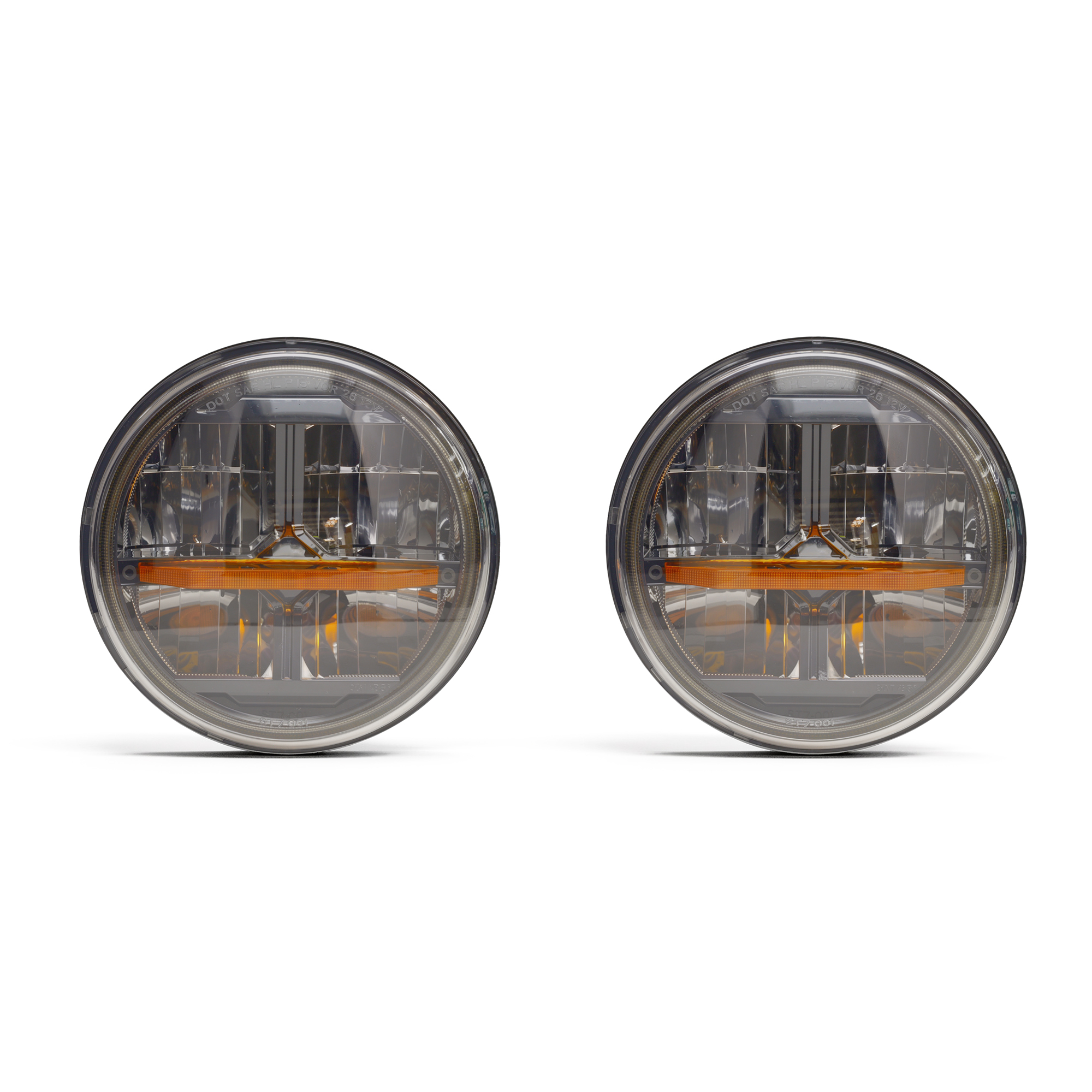

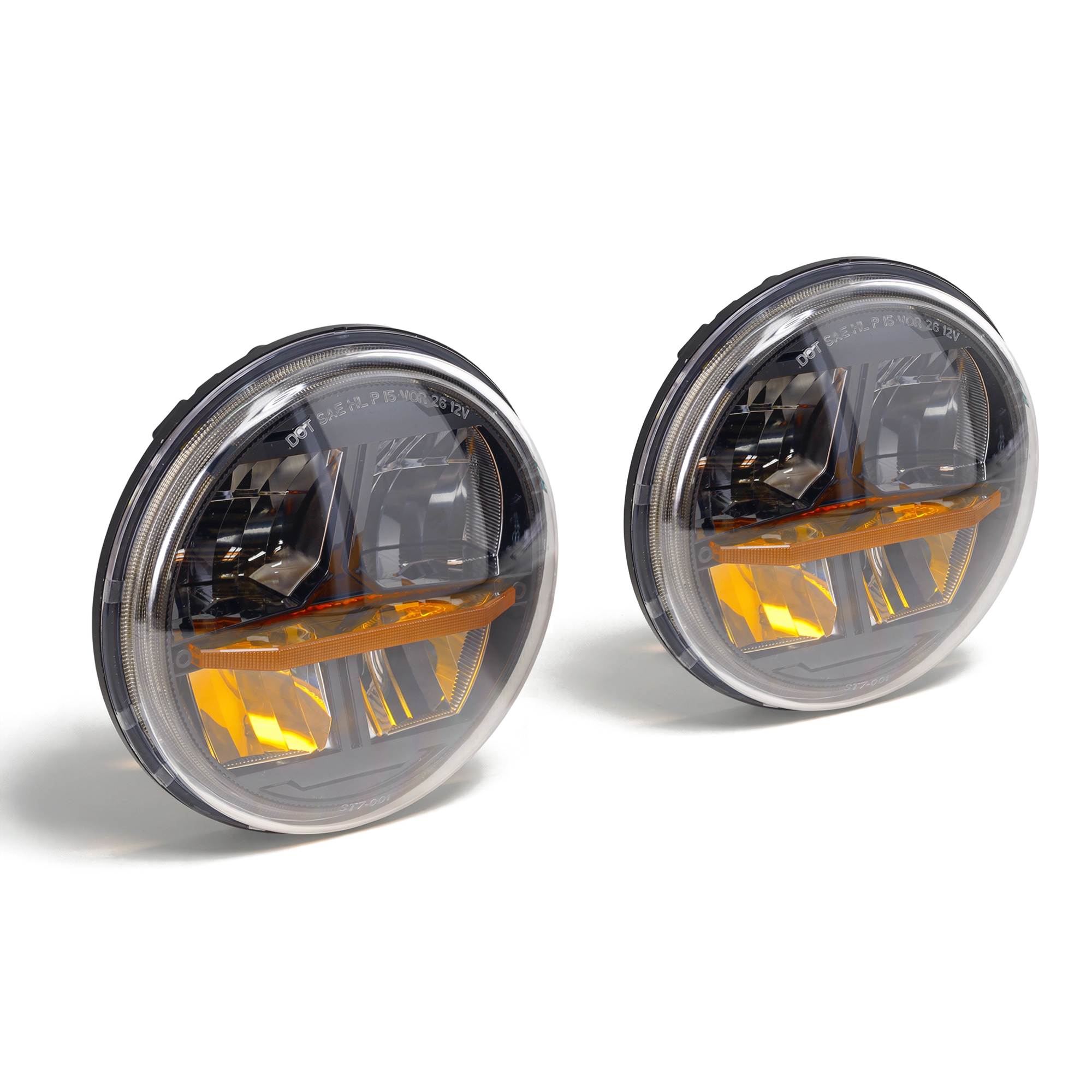

Revolution LED Headlights V2 | Black, 7 inch Round | 66-78 Bronco, 48-78 Ford Truck SKU: 6140

WH Revolution LED Headlights V2 | Black, 7" Round | 1966-78 Ford Bronco & 1948-78 Ford Truck

Upgrade your classic Ford lighting with WH Revolution V2 7-inch LED Headlights. Designed as a modern replacement for traditional 7-inch round headlights, these black LED lights deliver powerful low- and high-beam illumination while adding optional white halo daytime running lights and amber turn signal functionality.

With 30-watt low beams, 60-watt high beams, IP67 weather resistance, and a rated life of more than 50,000 hours, the Revolution V2 combines modern lighting performance with the classic round-headlight format used on 1966-78 Broncos and 1948-78 Ford trucks.

• Fits 1966-78 Ford Bronco – 7-inch round replacement headlight for Early Bronco and 1978 full-size Bronco applications

• Fits 1948-78 Ford Truck – Designed for compatible classic Ford truck 7-inch round headlight applications

• 30W Low Beam / 60W High Beam – Powerful LED lighting for improved nighttime visibility

• White Halo DRL – Pre-wired for optional white daytime running light operation

• Amber Turn Signal Function – Pre-wired for optional integrated amber turn signal operation

• Black LED Housing – Modern internal styling with a clean, aggressive appearance

• 7-Inch Round Design – Classic size with modern LED technology

• 50,000+ Hour Rated Life – Long-lasting LED construction reduces the need for frequent bulb replacement

• IP67 Weather Resistant – Built to withstand rain, dust, and demanding driving conditions

• Meets or Exceeds DOT Standards – Designed for compliant road-going headlight performance

High Beam, Low Beam & Integrated Accent Lighting

The Revolution V2 combines multiple lighting functions into one 7-inch round housing:

• Low Beam – 30-watt LED output for normal nighttime driving

• High Beam – 60-watt LED output for increased forward visibility

• White Halo DRL – Optional daytime running light around the perimeter of the headlight

• Amber Turn Signal – Optional integrated amber signal lighting

The white halo and amber turn signal functions are optional. They can be wired into your Bronco or truck if you want the additional functionality or left unused for a more traditional headlight setup.

Optional DRL & Turn Signal Wiring

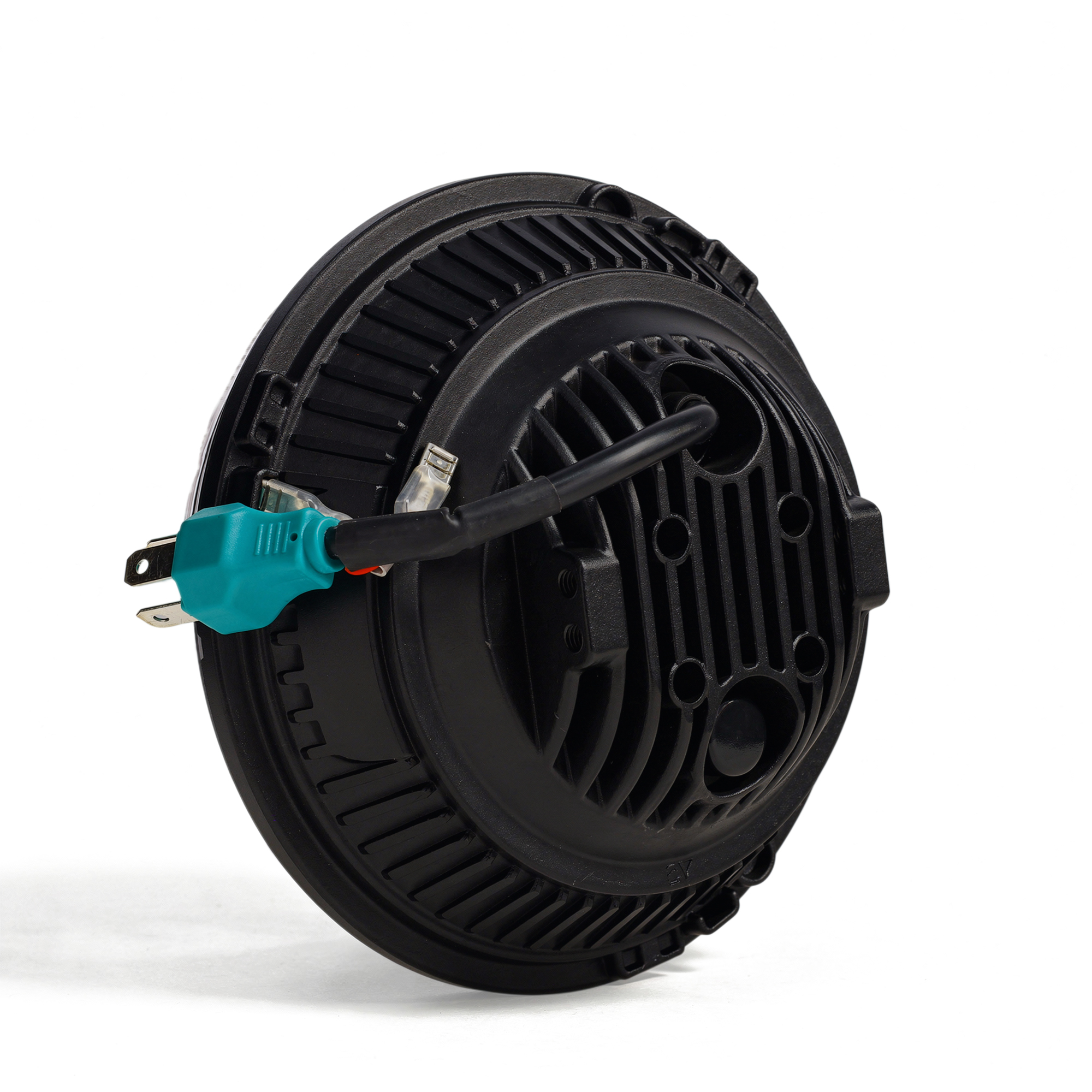

The main high- and low-beam functions connect through the headlight wiring. The additional lighting features require separate connections:

• White DRL: Connect to an appropriate switched power source if you want the halo to operate as a daytime running light.

• Amber Turn Signal: Connect to the vehicle's turn signal circuit if you want to use the integrated signal function.

These extra features give you flexibility to keep the installation simple or take advantage of the full Revolution V2 lighting package.

Built for Classic Broncos & Ford Trucks

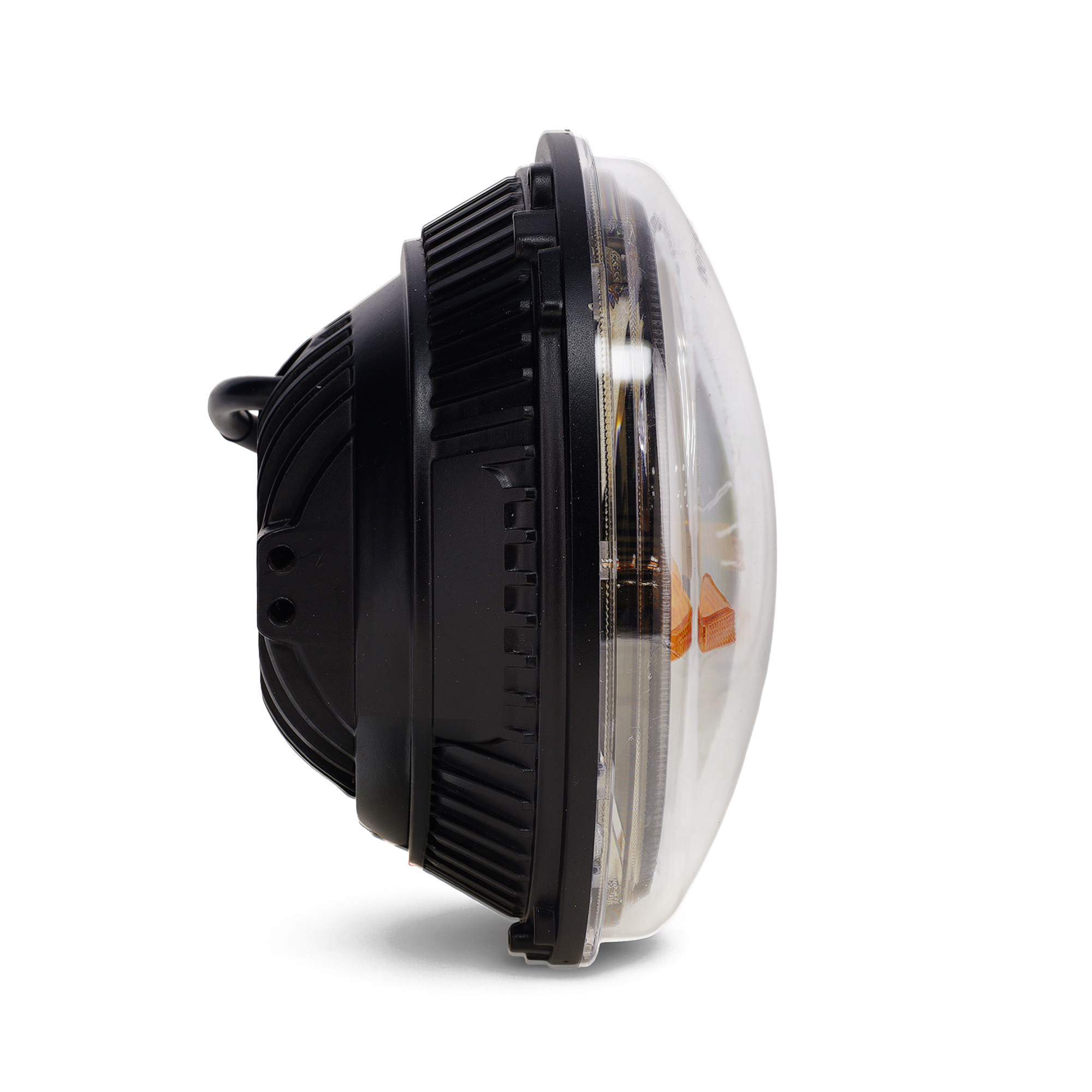

At approximately 176 mm (6.94") in diameter, the Revolution V2 retains the traditional 7-inch round headlight format while providing the efficiency, lifespan, and output of modern LEDs.

The black housing and distinctive internal design give your Bronco a noticeable update without abandoning the round headlights that belong on a classic Ford.

Upgrade your classic Ford with WH Revolution V2 LED headlights featuring powerful high & low beams, optional halo DRLs and turn signals, and 50,000+ hour life.
