Front Center Brake Hose, 66-77 Bronco SKU: 3177

Front Center Brake Hose, 66-77 Bronco

Front Center Brake Hose, 66-77 Bronco

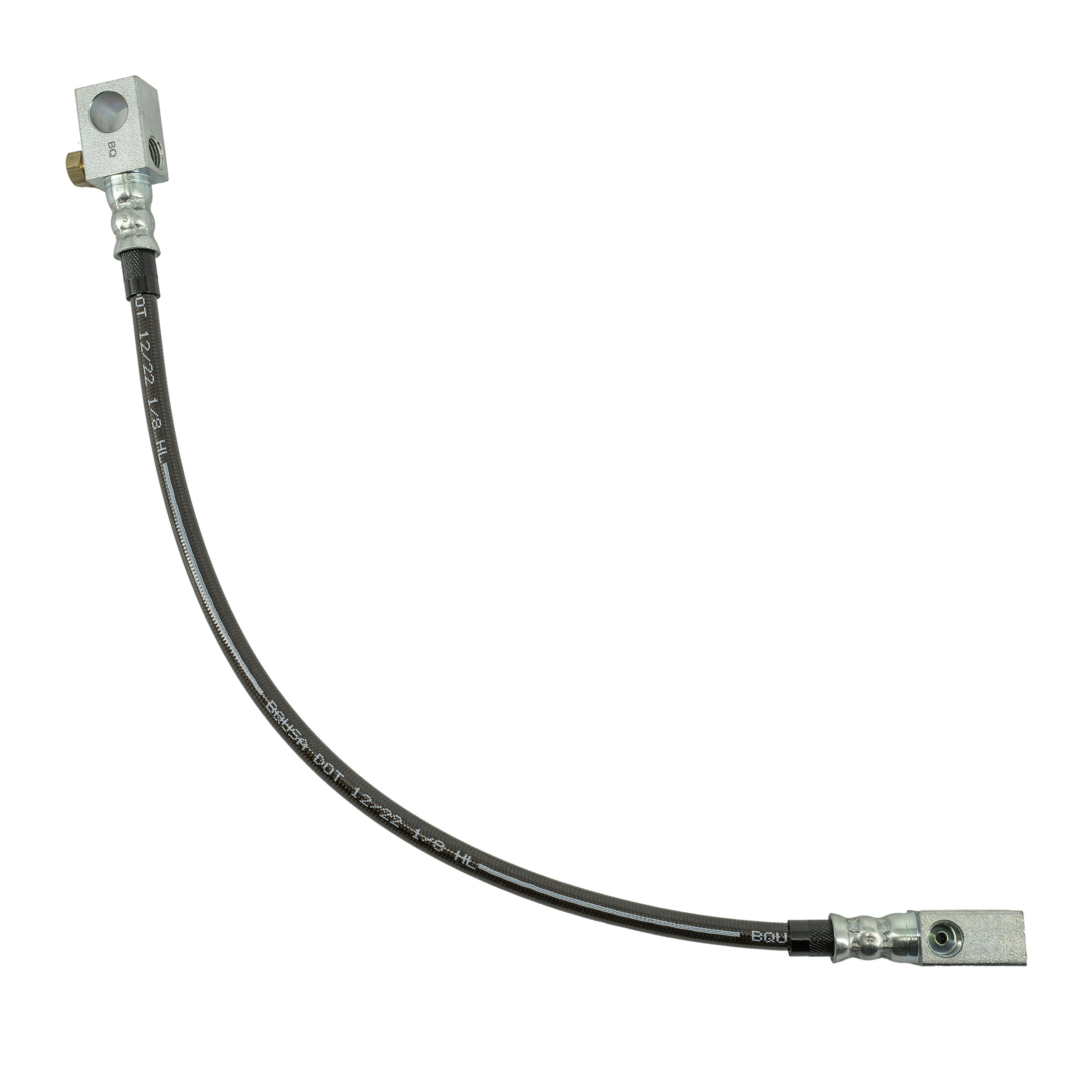

Front Center Brake Hose, Rubber or Braided, 66-77 Bronco
Purchase Front Center Brake Hose, 66-77 Bronco
$31.99 SKU: 3177
Fits 66-77 Ford Bronco
3 Reviews
Select Year:
Material:
Hose Length:

Product Overview:

These hoses connect from the early Bronco frame to the top of the front Dana 30 or Dana 44 differential. Choose between stainless steel braided or factory style rubber hoses.

We offer these hoses in stock length or an extended version. The extended version is about 24 inches long to accommodate suspension lifts from 2 to 6 inches.

The stainless steel braided hose has a clear cover with lines on it. This cover keeps the hose safe. It stops dirt and grime that can make hoses wear out faster. Each stainless braided hose comes with rubber inserts. These go between the coupler and the hose to help the hose work properly under constant movement and vibration.

Full description

These hoses connect from the early Bronco frame to the top of the front Dana 30 or Dana 44 differential. Choose between stainless steel braided or factory style rubber hoses.

We offer these hoses in stock length or an extended version. The extended version is about 24 inches long to accommodate suspension lifts from 2 to 6 inches.

The stainless steel braided hose has a clear cover with lines on it. This cover keeps the hose safe. It stops dirt and grime that can make hoses wear out faster. Each stainless braided hose comes with rubber inserts. These go between the coupler and the hose to help the hose work properly under constant movement and vibration.


Early Bronco Front Center Brake Hose - Rubber or Stainless Braided

These hoses connect from the early Bronco frame to the top of the front Dana 30 or Dana 44 differential. Choose between stainless steel braided or factory style rubber hoses.

We offer these hoses in stock length or an extended version. The extended version is about 24 inches long to accommodate suspension lifts from 2 to 6 inches.

The stainless steel braided hose has a clear cover with lines on it. This cover keeps the hose safe. It stops dirt and grime that can make hoses wear out faster. Each stainless braided hose comes with rubber inserts. These go between the coupler and the hose to help the hose work properly under constant movement and vibration.

Requires one hose per Bronco. You will also need a rear center hose. We offer this hose for the factory 1966 Bronco single reservoir master cylinder style as well as 67-77 Ford Bronco dual master cylinder style.


Built to DOT Specifications


Everybody claims to have DOT "approved" or "certified" brake hoses, but do they? WH felt you should know that the Department of Transportation has accepted and recorded WH's designation symbol "*359" which was submitted in accordance with the requirements of Federal Motor Vehicle Safety Standard No. 106, Brake hoses. This symbol is crimped into each of our OEM style end fittings, as required by Standard No. 106 and identifies Wild Horses Inc. as the manufacturer of the brake hose assemblies you see here. We manufacture both our rubber and our stainless steel hose assemblies using state of the art equipment with the highest quality materials available. Bottom line is WH brake hose assemblies are made to the specifications set forth by the Federal Motor Vehicle Safety Standard No. 106, Brake hoses. Put our hose assemblies side by side with the generic ones from others and you will see a big difference in the materials, quality and construction.

Rubber Brake Hoses


Our rubber hoses are designed to be direct replacments for your stock hoses. Our end fittings are virtually identical to the OEM end fittings plus they are cad plated to add corrosion resistance.

Stainless Steel Braided Brake Hoses


Our stainless steel braided hose has a clear jacket with printed lay lines. The clear jacket protects the S.S. hose and keeps out the dirt and grime that causes ordinary S.S. hoses to deteriorate quicker. With each hose assembly we use rubber support inserts between the coupler and hose. This enables the assembly to function properly under constant movement and vibration.
Review Front Center Brake Hose, 66-77 Bronco

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


PRODUCT REVIEWS
Jacob B
Reviewed 06/26/2019
What I wanted, works great.

Max R.
Reviewed 03/23/2014
These things are nice and look really good. Put them on with a new stainless brake kit and you got your self something!

Ratdhet
Reviewed 04/17/2012
Only place I could find the correct hose for my project
