M1A1 Stainless 23-gallon Fuel Tank w/Mount Strap, 66-77 Ford Bronco SKU: 9662STNET
M1A1 Stainless 23-gallon Fuel Tank w/Mount Strap, 66-77 Ford Bronco
M1A1 Stainless 23-gallon Fuel Tank w/Mount Strap 66-77 Bronco
Product Overview:
CAPACITY: 23 Gallons/87 Liters
CONSTRUCTION: 14 GA Stainless steel, tig welded
ADJUSTABLE: Fits 0-3 inch body lift
GROUND CLEARANCE: Maximized by design
Full description
CAPACITY: 23 Gallons/87 Liters
CONSTRUCTION: 14 GA Stainless steel, tig welded
ADJUSTABLE: Fits 0-3 inch body lift
GROUND CLEARANCE: Maximized by design
CONSTRUCTION: 14 GA Stainless steel, tig welded
ADJUSTABLE: Fits 0-3 inch body lift
GROUND CLEARANCE: Maximized by design

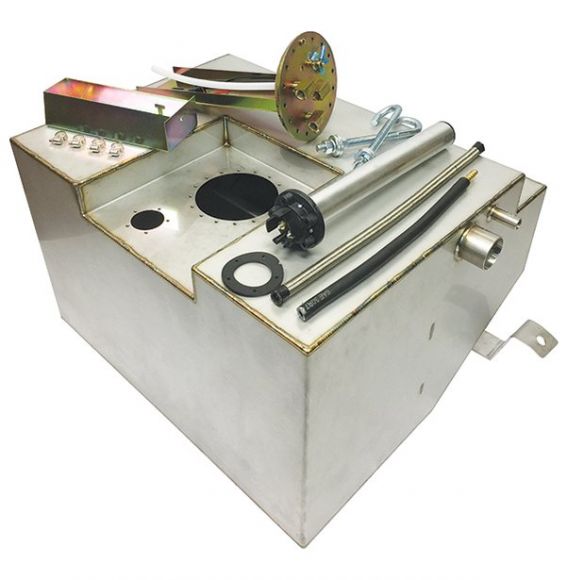

M1A1 Early Bronco 23 Gallon Fuel Tank
Step into the modern era with the M1A1 Early Bronco 23 Gallon Fuel Tank by WILD HORSES. Designed to provide superior durability and performance for your classic Ford Bronco.
M1A1 66-77 Ford Bronco High Capacity Fuel Tank Features:
- 14 Gauge Stainless Steel Construction: Built with high-quality stainless steel, leaving rust worries behind and ensuring long-lasting durability.
- Superior Craftsmanship: Our skilled welders use TIG welding to create a tank with smooth, wave-free surfaces, unlike typical aftermarket tanks.
- Convenient Drain Plug: A side-mounted drain plug allows for easy maintenance and drainage.
- Secure Mounting: The tank is securely fastened under your Bronco with custom-made heavy-duty candy cane bolts and a stainless steel strap.
- Optional Skid Plate: Upgrade with a 3/16" thick armor skid plate for side and bottom protection. This form-fitting shield defends your tank from harsh trail boulders.
- Versatile Fuel Pick Up Module: Designed for flexibility, the module can be used with or without an in-tank fuel pump and provides ports for fuel supply, return, and venting.
- Generous Fuel Capacity: Holds 23 gallons, giving you peace of mind on longer excursions.
- Custom Isspro Sending Unit: Specially made for the M1A1, ensuring accurate fuel level readings.
- Optimized Design: Offers enhanced ground clearance and a stealthy appearance from behind.
Why Choose the M1A1 Early Bronco 23 Gallon Fuel Tank?
- Modern Durability: Stainless steel construction eliminates rust concerns and withstands the rigors of off-roading.
- Exceptional Craftsmanship: Enjoy a high-quality finish with meticulous TIG welding by our expert welders.
- Enhanced Protection: Optional skid plate provides robust protection, allowing you to tackle tough trails without worry.
- Flexible Fuel Management: Easily swap the fuel pick up module for future upgrades, adapting to your evolving needs.
- Increased Capacity: Extended fuel range keeps you going on longer adventures without frequent refueling.
Upgrade your 66-77 Ford Bronco with the M1A1 23 Gallon Fuel Tank. Order now and experience unmatched durability, superior craftsmanship, and extended range for your classic Ford Bronco!
Instruction 1
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Anonymous, May 28, 2024 15:43
Q: I have a new TDK frame - have you had customers install one of these on that frame ? Any issues or modifications ?
⮞ 1 Answer
Answered by ☆ sales - May 28, 2024 15:43
A: We are not aware of any specific installations with TDK's frame. Still, we would not expect any issues, or expect any modifications.
Asked by Anonymous, May 28, 2024 15:42
Q: Can I buy this tank for a stock carb setup and later change to EFI? And if so what's involved and cost? Thanks
⮞ 1 Answer
Answered by ☆ sales - May 28, 2024 15:42
A: Yes, the pump kit is easily added and purchased separately. The part # for the kit is 9667
Asked by Paul, May 28, 2024 15:42
Q: Can you tell me the length of the tank from front to back. I'm looking for a tank that will fit in a frame that has had the rear cross member moved back 3". Thank you
⮞ 1 Answer
Answered by ☆ sales - May 28, 2024 15:42
A: Across the top of the tank, front to back is 16.5", with a 2.5" step down, then 3.5" to the back. Total, front to back, approx. 20".
Asked by Anonymous, February 12, 2021
Q: I have a new TDK frame - have you had customers install one of these on that frame ? Any issues or modifications ?
⮞ 1 Answer
Answered by ☆ sales - February 15, 2021
A: We are not aware of any specific installations with TDK's frame. Still, we would not expect any issues, or expect any modifications.
Asked by Anonymous, November 9, 2020
Q: Can I buy this tank for a stock carb setup and later change to EFI? And if so what's involved and cost?
Thanks
⮞ 1 Answer
Answered by ☆ sales - November 11, 2020
A: Yes, the pump kit is easily added and purchased separately. The part # for the kit is 9667, and currently sells for $149.99.
Asked by Paul, February 7, 2020
Q: Can you tell me the length of the tank from front to back. I'm looking for a tank that will fit in a frame that has had the rear cross member moved back 3. Thank you
⮞ 1 Answer
Answered by ☆ sales - February 10, 2020
A: Across the top of the tank, front to back is 16.5, with a 2.5 step down, then 3.5 to the back. Total, front to back, approx. 20.
