Dakota Digital Dash VHX Silver Alloy/Blue, 66-77 Ford Bronco, 61-66 Ford Truck SKU: 5987NET

Dakota Digital Dash VHX Silver Alloy/Blue, 66-77 Ford Bronco, 61-66 Ford Truck

Dakota Digital Dash VHX Silver Alloy/Blue, 66-77 Ford Bronco, 61-66 Ford Truck

Dakota Digital Dash VHX Silver Alloy/Blue 66-77 Bronco 61-66 Truck
Free Shipping!
Purchase Dakota Digital Dash VHX Silver Alloy/Blue, 66-77 Ford Bronco, 61-66 Ford Truck
$878.75 SKU: 5987NET
Fits 66-77 Ford Bronco, 61-66 Ford Truck
2 Reviews
Selection is required to add Dakota Digital to your cart. Please make a gauge cluster bezel selection. If you have a stock bezel you can use it. If you do not have a stock bezel you should choose one of the options below.:

Product Overview:

NOTE: You will need to use your original bezel. Bezel shown is not included.

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

NOTE: You will need to use your original bezel. Bezel shown is not included.

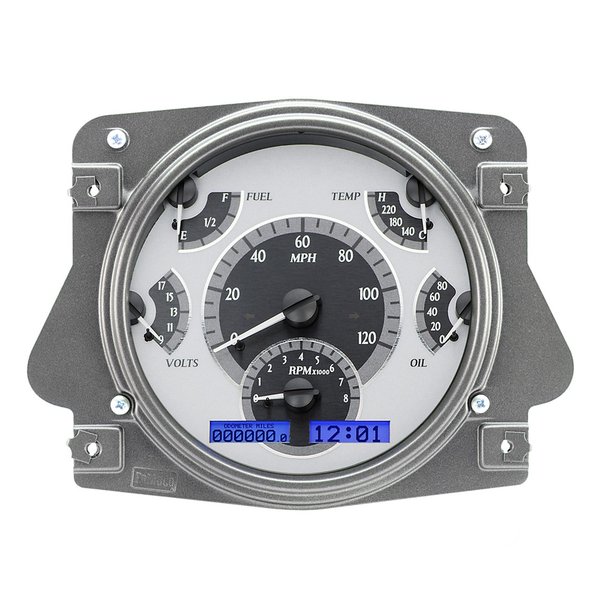

The new VHX Systems fit directly into the stock instrument bezel of a 1966-77 Ford Bronco without modification.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Displays included with this instrument system:
  • Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
  • Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
  • Oil Pressure: 0-80psi analog and digitally.
  • Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
  • Voltmeter: 0-17VDC analog and digitally.
  • Fuel Level: Empty- Full analog. 0-99% digitally in message center.
      Also shown in the digital message center:
    • Odometer
    • Trip Odometer (A&B)
    • Resettable Service Odometer
    • Clock
    • Hour-meter
    • 0-60 MPH (0-100 KPH) timer
    • ¼ mile timer
    • ¼ mile speed display
    • High Speed recall
    • High RPM recall
Various Indicators can also be displayed such as:
  • Turn Signals
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • 4x4 (when equipped) displayed in message center.
  • Wait to Start (when equipped) displayed in message center.
* Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear.
* Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 (sold separately) sending unit.
* Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
* Metric conversions will cycle between MPH or KPH in the digital message center with the press of a button. Full metric analog instrument systems (KPH & Celsius) are not currently available.

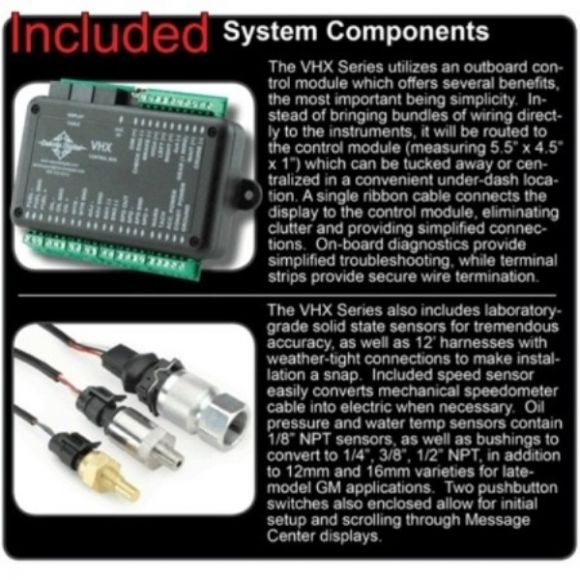

* Necessary sensors included for oil pressure (1/8" NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2" NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
* Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
* Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
* Built-in illumination is activated as headlights/ parking lights are activated. The DIM-1 can be purchased from Dakota Digital to increase or decrease the brightness of the display. The DIM-1 is used in conjunction with your headlight switch.
* Fully adjustable warning points alert the user of potential vehicle problems in the digital message center
* One-time user settable odometer. This is available only within the first 100 miles of operation. Once exceeded, the mileage can be reset by Dakota Digital at a charge of $20.

Instruction 1


Instruction 2


Instruction 3

Review Dakota Digital Dash VHX Silver Alloy/Blue, 66-77 Ford Bronco, 61-66 Ford Truck

California residents: Proposition 65 Warning


Have a question? Click Here to submit your question.
Know the answer? Add it here.

Your question will be published after review.

Asked by Gary, April 10, 2022

Q: I also will be installing a Sniper kit with Hyperspark kit. Will I need the SNiper module shown, or the dimming kit for this install? 77 Bronco

1 Answer

Answered by sales - April 11, 2022

A: If you want the Sniper info to read on the Dakota Digital, you will need the BIM-01-2-HLLY. If you want the capability of dimming the Dakota Digital, we would recommend the DIM-1 as well.

Know the answer? Add it here.

Know the answer? Add it here.

Stuart N.
Reviewed 08/14/2015
This is one of the best upgrades I have done for the money! It has always bothered me that the altimeter was useless, the speedometer needle always bounced around so I never knew my true speed, the gas gauge showed 1/3 tank when it was actually full, lights were dim even after I replaced with LED bulbs,etc. I didn't want a tach on my dash or column but I wanted a tach. This gauge cluster is AWESOME. Everything works! plus you have all the extra features like check engine light, trip meter, 1/4 mile times bright LED backlighting, classic looks and the list goes on. Best of all the install was easy and only took me 2.5 hours without interruptions. The instructions were very clear. I would recommend this to anyone who wants to have all the info without adding a bunh of aftermarket gauges in their dash. Its really a cheap upgrade if you get your wife to buy it for you like me. I just let her drive the Bronco and she hated the speedo and I said heres what I want for Fathers Day and it showed up. Thanks to Johnny @WH for helping get her the part.

Reviewed 01/10/2012
items were as specified on website and were shipped promptly. I am very pleased with the service and will order in the future. Thank you
