Wilwood Dynapro 4R Rear Disc Brake Kit - 12.19 inch Rotors, 74-75 Ford Bronco SKU: 140-13664N

Wilwood Dynapro 4R Rear Disc Brake Kit - 12.19 inch Rotors, 74-75 Ford Bronco

Wilwood Dynapro 4R Rear Disc Brake Kit - 12.19 inch Rotors, 74-75 Ford Bronco

Free Shipping!
Purchase Wilwood Dynapro 4R Rear Disc Brake Kit - 12.19 inch Rotors, 74-75 Ford Bronco
$1,140.93 SKU: 140-13664N

Fits 74-75 Ford Bronco
1 Reviews
Caliper Color:
Rotor Type:

Product Overview:

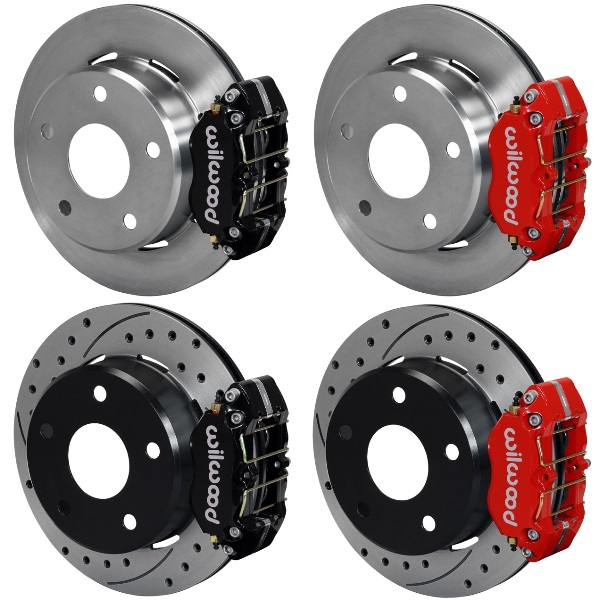

This group of DPL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Requires minimum 15 inch wheel diameter. Not all 15" wheels will fit. Consult the Wheel Clearance Diagram in additional images to confirm fitment before purchasing.

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

This group of DPL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Requires minimum 15 inch wheel diameter. Not all 15" wheels will fit. Consult the Wheel Clearance Diagram in additional images to confirm fitment before purchasing.

Wilwood Dynapro 4R Rear Disc Brake Kit | 74–75 Ford Bronco

For Large Bearing Axle with 10" x 2-1/2" Rear Drums | 12.19" Rotors

Take your Bronco’s braking power to the next level with Wilwood's Dynapro 4R Rear Disc Brake Kit. Designed specifically for 74–75 Ford Broncos equipped with large bearing rear axles and 10" x 2-1/2" rear drums, this complete solution brings modern stopping performance to your classic rig.

This kit includes powerful four-piston Dynapro Lug Mount calipers, 12.19" one-piece drum/rotors, and high-friction pads for balanced braking that perfectly complements front big brake upgrades. Plus, it includes an internal parking brake system hidden neatly inside the rotor hat for a clean look and reliable hold.

Ideal for Broncos with 15" wheels, this kit is finished in sleek black for that custom, understated appearance. It works with the Big Ford Bronco axle flange (2" offset), and the forged billet calipers provide premium performance and strength you can count on both on and off the trail.

Customize your look and performance with optional rotor designs and caliper finishes!


Specifications

Specification Detail
Pistons 4
Rotor Diameter 12.19"
Caliper Mount Lug
Wheel Diameter 15" minimum required
Flange Big Ford New Style (Bronco)
Axle Offset 2.38"
Finish Black calipers
Parking Brake Integrated internal drum-in-hat design



Why You Need to Know Your Axle

This kit is specifically designed for Broncos with the large bearing rear axle and 10" x 2-1/2" drum brakes. Confirming your axle type is critical for proper fitment and brake performance. If you need help identifying your axle, see the "Specs" section below!





Note: Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately.

Note: Kit may not fit all 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



CAREFULLY CHOOSE THE RIGHT KIT

Let's cover some basics. The rear end refers to the entire rear axle assembly. The different parts of the rear end are the brakes, axles, axle housing, and the third member. The most common question we are asked is "How do I tell if I have a large or small bearing rear axle?" You can easily identify if you have large or small bearing axles by examining the ends of the axle housing.

Photo 1 shows a small bearing axle housing. If you look close at the housing right where it meets the backing plate, there is no noticeable size increase where the axle bearing pocket is. Photo 2 and 3 show a large bearing axle housing and you can see a noticeable size increase where the axle housing meets the backing plate. If you have loose axles laying around, you can simply measure the outside diameter of the bearing. The small are 2.835" or just under 3" and the large are 3.150" or just over 3".


There are 4 different sets of rear axles that would have come stock in 66-77 Broncos. The original applications are as follows:
1. 66-75 small bearing,
2. 66-75 large bearing,
3. 74-75 medium duty large bearing, and
4. 76-77 large bearing.
Each of these sets have a driver and a passenger side axle. Each of these sets use corresponding backing plates and brake drums. The backing plates and drums are particular to each set and are not interchangeable with the exception of the 66-75 small bearing and 74-75 medium duty large bearing using the same brake drum.

So, how can you identify which large bearing set you have? it can be narrowed down this way: The inside diameter of the Bronco rear brake drum is approximately 10" or 11". So, if you have a large bearing and a 10" brake drum, you have what we call a 74-75 medium duty setup. That leaves us with the 66-75 large and 76-77 large. Both use an 11" brake drum. The 66-75 uses a narrower drum and corresponding brake shoes. We identify this as 11 X 1 3/4". The 76-77 uses an 11 X 2 1/4" drum and shoe. Note the difference in the backing plates * in photos 2 and 3. Photo 2 shows a 66-75 large bearing with 11 X 1 3/4" brakes. Photo 3 shows a 76-77 with 11 X 2 1/4" brakes. If you look close you can see the backing plate of the 66-75 appears wider. Please note that all of the original axle sets were 28 spline. See Photo 4. With an increase in spline count comes an increase in outside diameter of the axle and so you get an increase of strength. A very common upgrade is to install a set of 31 spline axles. All that is necessary to do this is a set of axles and a new differential and we would recommend a third member rebuild kit. 35 spline axles are another step up in the strength department but usually require a new differential housing. The 35 spline axle is common for the extreme rock crawlers.

The third member, also known as the differential housing, hogs head, and chunk, holds the differential, ring and pinion gears, and bearings. This is the part that bolts into the center of the axle housing. See photo 5. You have three choices of gear ratios that were stock. They would be 3.50 which is the most common, 4.11 and 4.56. There are many other ratios that can be used as well. The differential refers to the ring gear carrier and came stock either open or limited slip "posi" type. There are numerous upgrades such as Detroit Locker, ARB air locker, electric lockers, etc.
