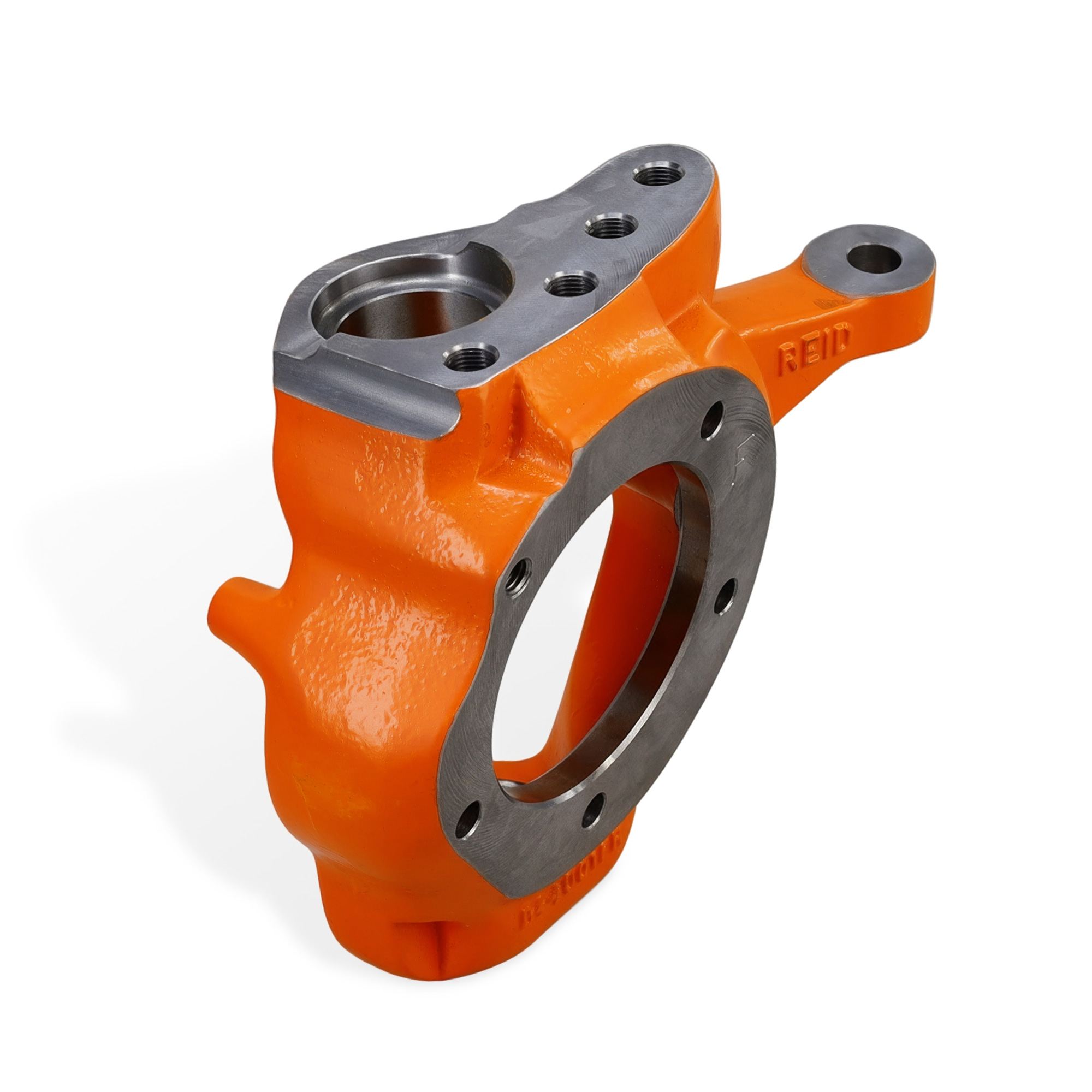

Reid Racing Flat Top Extreme Dana 44 Knuckle, Right, 76-77 Ford Bronco SKU: 8713
Reid Racing Flat Top Extreme Dana 44 Knuckle, Right, 76-77 Ford Bronco
Reid Racing Flat Top Extreme Dana 44 Knuckle Right 76-77 Bronco
Product Overview:
The Reid Racing Flat Top Extreme Duty Knuckles are designed for off-road use and are interchangeable with all factory and aftermarket Dana 44 components.
Full description
The Reid Racing Flat Top Extreme Duty Knuckles are designed for off-road use and are interchangeable with all factory and aftermarket Dana 44 components.
Reid Racing Flat Top Extreme Duty Knuckle
*Please note these do not come with studs, you can reuse your current studs or order a new stud kit #8706
- Cast from high strength ductile iron
- Beefed up with extra material and ribbing
- Flat tops machined and drilled for high steer arms
- 4th bolt hole for high steer arms increases clamping force and sheer strength (3 hole high steer arms still fit)
- 3/8" thickness added to flat top of the knuckle for high steer tie rod to leaf spring clearance
- Cast-in DUAL steering stops eliminate bent stop bolts that can cause u-joint and axle failures
- Tapered tie rod holes accept 78-79 Bronco or 76-79 F150 tie rod ends
- Tie rod holes can be drilled to accept 3/4" heim ends
- Powder coated bright orange for long lasting looks
- Interchangeable with all factory and aftermarket Dana 44 components
- Fully machined and ready for installation
- Tie rod hole is tapered from the bottom to the top
- Based on the Bronco disc brake knuckle and fit 1/2 and 3/4 ton brakes
- The only aftermarket knuckle available for a Ford Dana 44.
*Please note these do not come with studs, you can reuse your current studs or order a new stud kit #8706
 Side View |
| Click Any Image to Enlarge |
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Mark Womack, October 6, 2024 03:28
Q: Is this product sold as a pair or individually?
⮞ 1 Answer
Answered by ☆ sales - October 7, 2024 16:05
A: This is one knuckle, the right or passenger side. Our part #8719 is for the pair, both sides.
Asked by Jessie, June 1, 2019
Q: It says based off 76-77 but it will work on all twin traction bar setups is what I'm reading I have an 86 just want to make sure that they'll work on later years as well
⮞ 1 Answer
Answered by ☆ sales - June 3, 2019
A: They will work on later years, at least up to 78-79, but the 76-77 design limits the amount of wheel back spacing you can run. You may check directly with Reid for your specific model and fitment.
