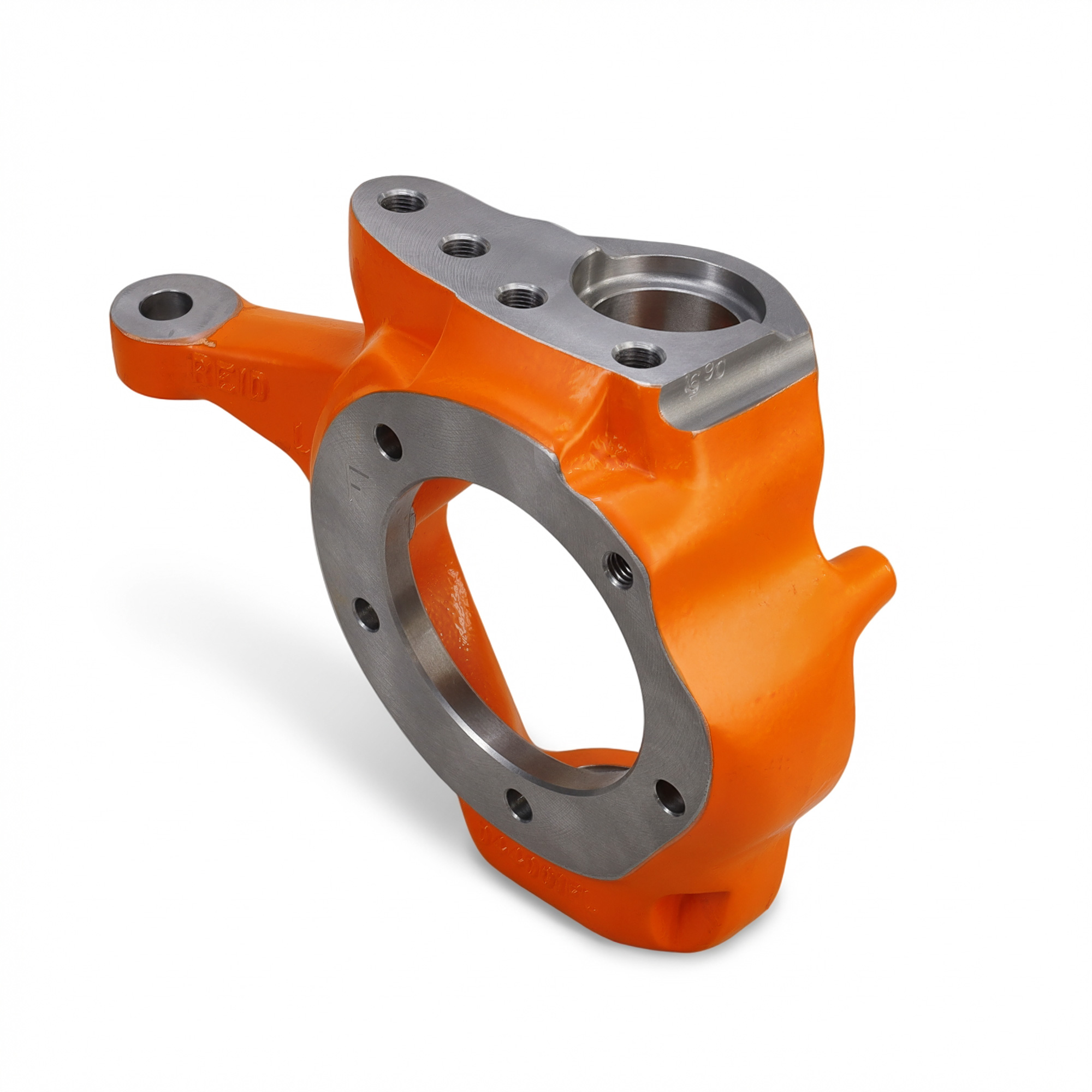

Reid Racing Flat Top Extreme Dana 44 Knuckle, Left, 76-77 Ford Bronco SKU: 8715

Reid Racing Flat Top Extreme Dana 44 Knuckle, Left, 76-77 Ford Bronco

Reid Racing Flat Top Extreme Dana 44 Knuckle Left 76-77 Bronco

Product Overview:

The Reid Racing Flat Top Extreme Duty Knuckles are designed for off-road use and are interchangeable with all factory and aftermarket Dana 44 components.

Full description

The Reid Racing Flat Top Extreme Duty Knuckles are designed for off-road use and are interchangeable with all factory and aftermarket Dana 44 components.

Reid Racing Flat Top Extreme Duty Knuckle

Cast from high strength ductile iron
Beefed up with extra material and ribbing
Flat tops machined and drilled for high steer arms
4th bolt hole for high steer arms increases clamping force and sheer strength (3 hole high steer arms still fit)
3/8" thickness added to flat top of the knuckle for high steer tie rod to leaf spring clearance
Cast-in DUAL steering stops eliminate bent stop bolts that can cause u-joint and axle failures
Tapered tie rod holes accept 78-79 Bronco or 76-79 F150 tie rod ends
Tie rod holes can be drilled to accept 3/4" heim ends
Powder coated bright orange for long lasting looks
Interchangeable with all factory and aftermarket Dana 44 components
Fully machined and ready for installation
Tie rod hole is tapered from the bottom to the top
Based on the Bronco disc brake knuckle and fit 1/2 and 3/4 ton brakes
The only aftermarket knuckle available for a Ford Dana 44.

Knuckles for off road use only. There is no warranty on this product.
*Please note these do not come with studs, you can reuse your current studs or order a new stud kit #8706

Side View
