Electric Wiper Motor | Deluxe, Two-Speed, Stock Type | 69-77 Ford Bronco SKU: 5311

Early Bronco Wiper Motor | 1969-77 Ford Bronco

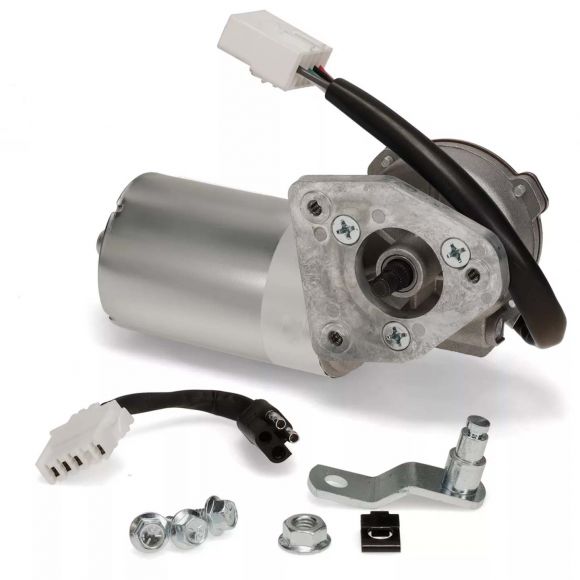

Restore dependable windshield wiper operation on your 1969-77 Ford Bronco with this new stock-style 2-speed wiper motor. Designed as a direct replacement for Broncos originally equipped with electric wipers, this motor bolts to the factory wiper motor bracket and connects directly to the original wiper linkage to drive both wiper arms smoothly and consistently.

Whether you’re replacing a worn-out motor or freshening up an aging wiper system, this new unit delivers reliable performance without modification. New wiring terminals are included to simplify installation and help ensure a clean, trouble-free hookup.

• Stock-Style Replacement: Direct-fit wiper motor for factory electric wiper systems

• 2-Speed Operation: Restores proper low and high wiper speeds

• Mounts to Stock Bracket: Bolts to the original wiper motor bracket

• Factory-Correct Fitment: Connects directly to factory wiper linkage to operate both arms

Additional Information

• Fits 1969-77 Ford Bronco with factory electric wipers

• New stock-type 2-speed wiper motor

• Includes new wiring terminals for easier installation

• Designed to work with original wiper linkage and switch

• Wiper motor only; bracket and linkage sold separately if needed

Keep your 69-77 Ford Bronco ready for weather with a new wiper motor that installs clean, operates smooth and restores reliable visibility in your classic ride.

Early Bronco Wiper Switch Wiring Schematic

Early Bronco Windshield Wiper Switch Wiring Schematic

Continuity test data for 1969-77 Ford Bronco

Use this wiring schematic to verify continuity and troubleshoot your Early Bronco windshield wiper switch wiring. This chart is intended for testing the factory wiper switch with the connector unplugged and a multimeter set to continuity or ohms, allowing you to confirm proper switch function before chasing wiring issues or replacing parts. It’s especially useful on original or aged harnesses where wire colors may have faded or been repaired over the years, helping you determine whether the issue is in the switch itself or elsewhere in the wiper or washer circuit.

---

Wiring Circuitry Conversion for #6320 New Early Bronco Wiper Motor

The wiring colors on this new wiper motor do not directly align with the factory Early Bronco wiring color codes. For ease of installation, a conversion chart is provided below:

Circuit	New Wiper Motor	Factory Wiper Motor
Park Circuit	White	Black
Low Speed	Green	White
High Speed	Blue	Blue
Park Power	Red	Red

Switch Positions and Continuity Between Terminals

With the switch unplugged, use a multimeter in continuity mode and confirm terminal-to-terminal continuity matches the chart below. This is the quickest way to confirm switch function before you start replacing parts.

Switch Position	Continuity Between Terminals
Off (Park)	763 – 63; 58 - 615
Low	763 - 63 - 58
High	763 – 63 – 56
Washer On	941 – 950

Wiper Switch Wire Colors and Terminal IDs

Match each terminal ID to its wire color before testing. If your harness has been repaired over the years, confirm by function (power-in, park power, low/high outputs) instead of color alone.

Terminal ID	Wire Color	Circuit Function
763	Orange/White	Power In
63	Red	Park Power
58	White	Low Speed
56	Blue	High Speed
615	Black	Park Circuit Power
941	Black/Green	Washer Squirter
950	Black	Wiper Power In

Quick Notes for Clean Diagnostics

• Test at the switch first: If the switch continuity is correct, move downstream to the motor/washer circuits.
• Confirm grounds: Weak/dirty grounds can mimic bad switches in both Early Bronco and classic Ford Truck wiring.
• Park issues: If the wipers won't park, focus on the Park Power (63) and Park Circuit Power (615) paths.

Early Bronco Wiper Motor Wiring Schematic

Early Bronco Wiper Motor Wiring Schematic

Below is a schematic showing the factory wiring continuity for the Early Bronco Wiper Motor assembly (1969-77) as indicated by Ford.
