Power Steering Pump Bracket, 289/302, 66-77 Ford Bronco SKU: 2039

Power Steering Pump Bracket, 289/302, 66-77 Ford Bronco

Power Steering Pump Bracket, 289/302, 66-77 Ford Bronco

Power Steering Pump Bracket 289/302 66-77 Bronco
Purchase Power Steering Pump Bracket, 289/302, 66-77 Ford Bronco
$59.99 SKU: 2039
Fits 66-77 Ford Bronco
7 Reviews

Product Overview:

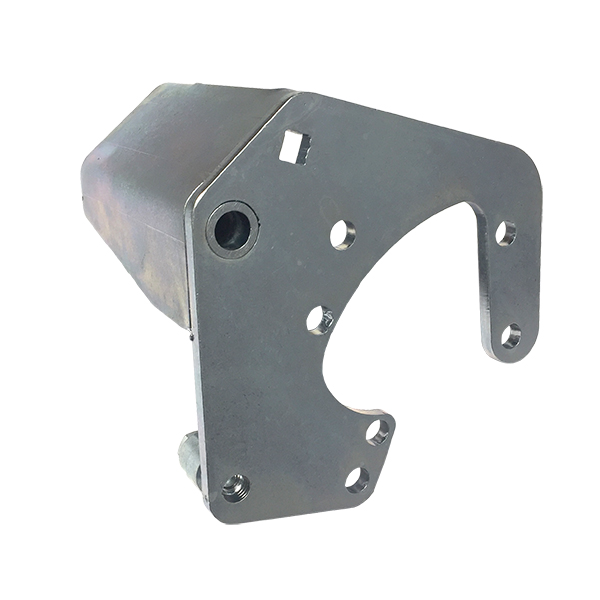

Power steering pump bracket with clear zinc coating for corrosion resistance. This pump bracket will fit both stock and Delphi/Saginaw style steering pumps.

Full description

Power steering pump bracket with clear zinc coating for corrosion resistance. This pump bracket will fit both stock and Delphi/Saginaw style steering pumps.

Our new pump bracket will fit stock and Delphi/Saginaw style pumps. We have added a belt tension hole in the bracket so that you don't have to pry on the pump reservoir to set belt tension. We have also designed into the bracket additional clearance between the pump pulley and the steering box. It comes silver zinc plated.

In order to swap a Saginaw pump onto your motor, you will need #2052 and #2042. I'd suggest getting the whole kit #2036.

WARNING: This bracket is designed for the 66-77 Ford Bronco 289/302. These motors have the water pump inlet on the passenger side. If your water pump inlet is on the driver side of the motor these will not work.
Review Power Steering Pump Bracket, 289/302, 66-77 Ford Bronco

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Anonymous, June 1, 2022

Q: Will this work with a 460 in a 78 f250?

1 Answer

Answered by sales - June 2, 2022

A: No, it is designed for the 289 and 302 motor. It can also fit the 351W with and adapter bracket. We do not offer any brackets for the 460.


Asked by Anonymous, June 16, 2019

Q: will this bracket work on 351w / thanks charlie

1 Answer

Answered by sales - June 17, 2019

A: Yes, but you will also need the 351 adapter bracket as well, #8048.


Asked by David, February 10, 2014

Q: Does this bracket replace the stock power steering bracket? I have a 77 with a 302 and was going to replace the stock pump and noticed my stock bracket is cracked. Is so is this all I need to order?

1 Answer

Answered by 8578 - February 10, 2014

A: This bracket will do the job.


PRODUCT REVIEWS
Chris Abacherli
Reviewed 07/12/2021
Good quality bracket

Bert Mann
Reviewed 03/25/2019
For sure replaced the broken parts. Straight forward instruction. Only comment is on my install I needed to use the two 3/8" long bushings supplied to align the pulleys. Would have been nice to the third one.

Greg Holmes
Reviewed 10/02/2017
Great fit

Don
Reviewed 04/25/2014
I've put several hydro boost systems on Broncos and always use this bracket. It needs a little clearance mod on top to fit the dual return pump, otherwise is a good fit. Shipping is always fast and reliable. I really recommend this bracket for anyone doing a Saginaw pump conversion. I do have pictures I took of the install if you want to see them.

QTJ
Reviewed 02/18/2014
This bracket is worth the extra cost. Don't try to use the old bracket, just pay the $30 bucks or whatever and make it easy on yourself.

DWHOF
Reviewed 06/22/2013
Bought it to mount a Saginaw p/s pump to an early Ford 302 in a custom installation. Didn't fit the particular pump I had due to the reservoir orientation. Could have bought a different pump but the bracket was easily modified with some minor grinding to work great on the pump I have (thanks for the suggestion Wild Horses). Very heavy metal makes for a solid mount.

Raymond e Rowlands
Reviewed 09/27/2011
bracket is as shown, holds pump well
