Dakota Digital Dash VHX Black Alloy/White, 66-77 Ford Bronco, 61-66 Ford Truck SKU: 5980NET

Dakota Digital Dash VHX Black Alloy/White, 66-77 Ford Bronco, 61-66 Ford Truck

Dakota Digital Dash VHX Black Alloy/White, 66-77 Ford Bronco, 61-66 Ford Truck

Dakota Digital Dash VHX Black Alloy/White 66-77 Bronco 61-66 Truck
Free Shipping!
Purchase Dakota Digital Dash VHX Black Alloy/White, 66-77 Ford Bronco, 61-66 Ford Truck
$878.75 SKU: 5980NET
Fits 66-77 Ford Bronco, 61-66 Ford Truck
1 Reviews
Selection is required to add Dakota Digital to your cart. Please make a gauge cluster bezel selection. If you have a stock bezel you can use it. If you do not have a stock bezel you should choose one of the options below.:

Product Overview:

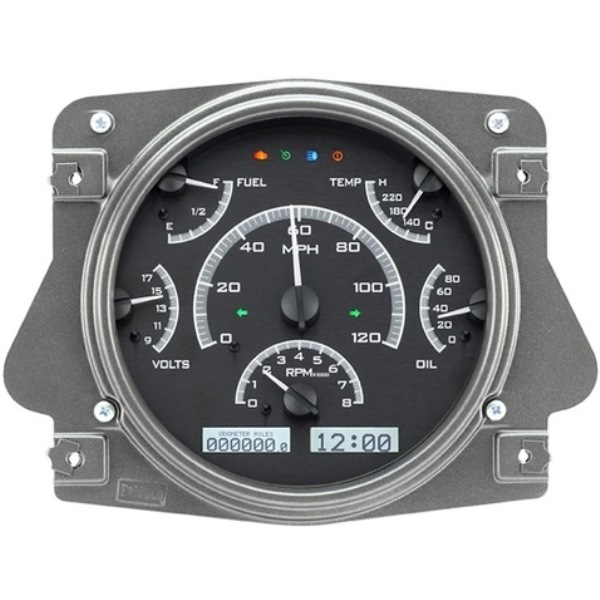

NOTE: You will need to use your original bezel. Bezel shown is not included.

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

NOTE: You will need to use your original bezel. Bezel shown is not included.

The new VHX Systems fit directly into the stock instrument bezel of a 1966-77 Ford Bronco without modification.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Displays included with this instrument system:
  • Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
  • Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
  • Oil Pressure: 0-80psi analog and digitally.
  • Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
  • Voltmeter: 0-17VDC analog and digitally.
  • Fuel Level: Empty- Full analog. 0-99% digitally in message center.
      Also shown in the digital message center:
    • Odometer
    • Trip Odometer (A&B)
    • Resettable Service Odometer
    • Clock
    • Hour-meter
    • 0-60 MPH (0-100 KPH) timer
    • ¼ mile timer
    • ¼ mile speed display
    • High Speed recall
    • High RPM recall
Various Indicators can also be displayed such as:
  • Turn Signals
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • 4x4 (when equipped) displayed in message center.
  • Wait to Start (when equipped) displayed in message center.
* Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear.
* Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 (sold separately) sending unit.
* Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
* Metric conversions will cycle between MPH or KPH in the digital message center with the press of a button. Full metric analog instrument systems (KPH & Celsius) are not currently available.
* Necessary sensors included for oil pressure (1/8" NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2" NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
* Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
* Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
* Built-in illumination is activated as headlights/ parking lights are activated. The DIM-1 can be purchased from Dakota Digital to increase or decrease the brightness of the display. The DIM-1 is used in conjunction with your headlight switch.
* Fully adjustable warning points alert the user of potential vehicle problems in the digital message center
* One-time user settable odometer. This is available only within the first 100 miles of operation. Once exceeded, the mileage can be reset by Dakota Digital at a charge of $20.
pdf-file

Instruction 1

pdf-file

Instruction 2

pdf-file

Instruction 3

Review Dakota Digital Dash VHX Black Alloy/White, 66-77 Ford Bronco, 61-66 Ford Truck

California residents: Proposition 65 Warning
PRODUCT REVIEWS
Tony M
Reviewed 07/29/2016
This is one of the best upgrades I have done to my early Bronco. Easy, strait forward install, precise and customizable readings. Also went with the GPS module to control the speedometer, compass, elevation and outside temp. Highly recommended.
