Dakota Digital Dash VHX Black Alloy/Red, 66-77 Ford Bronco, 61-66 Ford Truck SKU: 5983NET

Dakota Digital Dash VHX Black Alloy/Red, 66-77 Ford Bronco, 61-66 Ford Truck

Dakota Digital Dash VHX Black Alloy/Red, 66-77 Ford Bronco, 61-66 Ford Truck

Dakota Digital Dash VHX Black Alloy/Red 66-77 Bronco 61-66 Truck
Free Shipping!
Purchase Dakota Digital Dash VHX Black Alloy/Red, 66-77 Ford Bronco, 61-66 Ford Truck
$878.75 SKU: 5983NET
Fits 66-77 Ford Bronco, 61-66 Ford Truck
1 Reviews
Selection is required to add Dakota Digital to your cart. Please make a gauge cluster bezel selection. If you have a stock bezel you can use it. If you do not have a stock bezel you should choose one of the options below.:

Product Overview:

NOTE: You will need to use your original bezel. Bezel shown is not included.

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

NOTE: You will need to use your original bezel. Bezel shown is not included.

The new VHX Systems fit directly into the stock instrument bezel of a 1966-77 Ford Bronco without modification.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

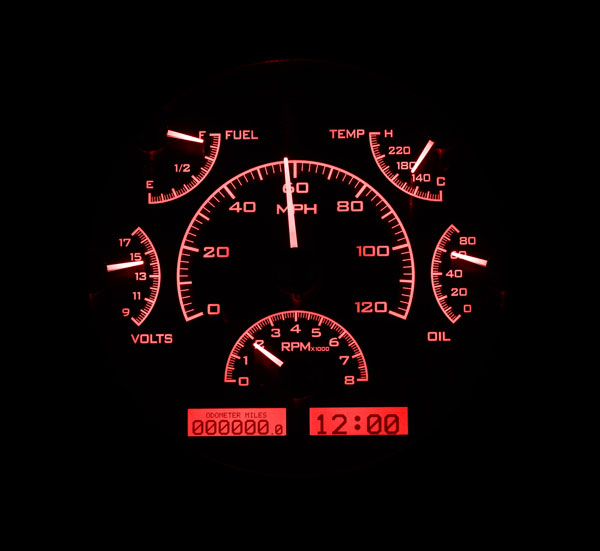

Displays included with this instrument system:
  • Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
  • Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
  • Oil Pressure: 0-80psi analog and digitally.
  • Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
  • Voltmeter: 0-17VDC analog and digitally.
  • Fuel Level: Empty- Full analog. 0-99% digitally in message center.
      Also shown in the digital message center:
    • Odometer
    • Trip Odometer (A&B)
    • Resettable Service Odometer
    • Clock
    • Hour-meter
    • 0-60 MPH (0-100 KPH) timer
    • ¼ mile timer
    • ¼ mile speed display
    • High Speed recall
    • High RPM recall
Various Indicators can also be displayed such as:
  • Turn Signals
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • 4x4 (when equipped) displayed in message center.
  • Wait to Start (when equipped) displayed in message center.
* Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear.
* Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 (sold separately) sending unit.
* Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
* Metric conversions will cycle between MPH or KPH in the digital message center with the press of a button. Full metric analog instrument systems (KPH & Celsius) are not currently available.
* Necessary sensors included for oil pressure (1/8" NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2" NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
* Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
* Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
* Built-in illumination is activated as headlights/ parking lights are activated. The DIM-1 can be purchased from Dakota Digital to increase or decrease the brightness of the display. The DIM-1 is used in conjunction with your headlight switch.
* Fully adjustable warning points alert the user of potential vehicle problems in the digital message center
* One-time user settable odometer. This is available only within the first 100 miles of operation. Once exceeded, the mileage can be reset by Dakota Digital at a charge of $20.
pdf-file

Instruction 1

pdf-file

Instruction 2

pdf-file

Instruction 3

Review Dakota Digital Dash VHX Black Alloy/Red, 66-77 Ford Bronco, 61-66 Ford Truck

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


PRODUCT REVIEWS
Tony Narduzzi
Reviewed 09/26/2019
This may be my favorite improvement to my Bronco's interior, yet. My factory gauge cluster had a lot of problems and restoring it was going to be costly; and even when done and with everything working it would still be difficult to read. This plus the speedometer would still not likely be calibrated exactly to my custom gearing/tire size combination. I have been staring at the various digital dash options on your website for years, the price scared me away. I put my raffle tickets into the bin next to the digital dash at your annual round-up events for years. Finally convinced myself to part with the cash and I am so glad that I did. Installation is easy - Dakota Digital provides the required sensors and good, detailed instructions for installation. Since I had my dash opened up anyway, I took the opportunity to clean up my wiring for many of my custom touches on the dash; had I not done that I am convinced that the installation would have only taken a couple of hours at the most. Calibration of the speedometer, as well as the final configuration of the various gauges/sensors is a breeze. The display is bright, easy to read, and very attractive. While it does not look original, it is still fairly subtle. Now that I have a tach in the same gauge cluster as the speedo and other gauges, I was able to replace my old 3" tach with a gauge hole mounted stereo receiver. I could not be happier with this purchase. Thank you WH for offering such a great product.
