Classic Instruments Gauge Cluster | Tan | 66-77 Bronco, 61-66 Ford Truck SKU: 5977

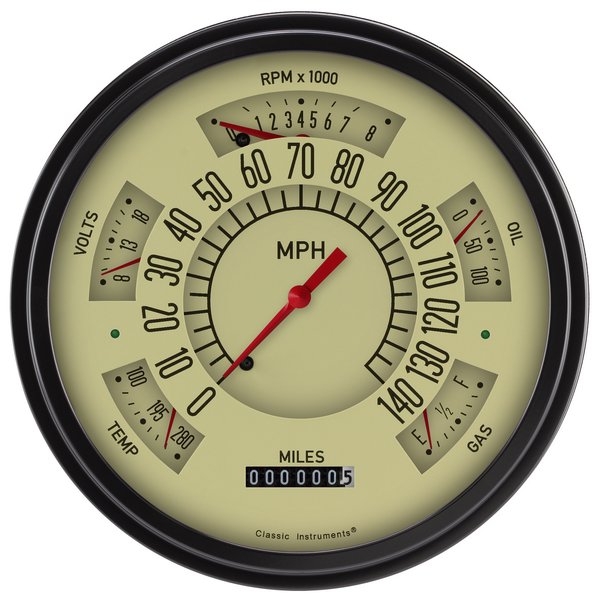

Classic Instruments Tan Gauge Cluster | 66–77 Bronco & 61–66 Ford Truck

Upgrade your dash with timeless style and modern functionality using the Classic Instruments Tan Gauge Cluster, designed to be a direct fit for 1966–77 Ford Bronco and 1961–66 Ford Truck. This all-in-one, fully electronic instrument cluster combines a speedometer, tachometer, fuel, temperature, voltmeter, and oil pressure gauge into a single unit—delivering clean aesthetics, reliable readouts, and simplified installation.

Featuring Classic Instruments' Zeus Speedometer Technology™, calibration is fast and easy with the included push-button switch. The tan face design paired with built-in LED lighting, turn signal indicators, and a hidden red LED Halo™ high beam light provides bright, modern readability without losing the classic appeal. Mounts easily using factory dash holes and includes all necessary sensors and model-specific hardware.

Stock Gauge Cluster Bezel Highly Recommended - Though this unit can work without it, these gauges are best used in conjunction with the stock gauge bezel. We offer this bezel as an add-on in either argent silver or chrome finish.

• Direct Fit Design: Installs easily into stock dash openings on 66–77 Bronco and 61–66 Ford Truck using factory holes.

• Complete Gauge Package: Combines speedometer, tachometer, fuel, temp, volt, and oil into one sleek cluster.

• Zeus Speedometer Technology™: No control box needed—calibrates with a push of a button using VSS or ECM signals.

• LED Backlighting: Built-in LED dimmer and molded light ring for crisp, even lighting with adjustable brightness via potentiometer.

• Integrated Indicators:

  • Green LED turn signals (left/right)

  • Red LED Halo™ high beam indicator subtly hidden in tachometer

• Sender Kit Included: Comes with full gauge sender pack (temp, oil, speedo senders).

• ECM Signal Filter Switch: Integrated filtering for signal clarity.

• Supports OEM Ford 10-75 Fuel Ohm Range: Compatible with factory fuel sender resistances—alternate Ohm range fuel senders are available but require special order.

Modern precision meets classic style - this all-in-one gauge cluster by Classic Instruments cleans up your Bronco dash and adds modern accuracy and reliability.
