INSTALLATION NOTES

• Front Seats:
  • Choose standard mounting brackets or brackets with underseat storage.
  • Passenger seat requires two drilled holes for the rear bracket mounting points.
  • Driver seat bolts directly into factory seat mounting holes.
• Rear Seat:
  • Front mounting brackets require four drilled holes for installation.
  • Rear hook bracket bolts to factory inner seat belt holes.

Early Bronco Front Seat Brackets Installation Instructions – Caballo Classic Seats

Application: WH Front Seat Brackets for Caballo Classic Front Seats
Fits: 1966-77 Ford Bronco (Early Bronco)
Date: 01/09/2026 | Revision: 2

WILD HORSES 4x4 - Early Bronco Parts & Accessories
Phone: (209) 400-7200 | Fax: (209) 943-7923

These instructions cover installation of WILD HORSES front seat brackets designed specifically for Early Bronco Caballo Classic front seats.

Parts & Hardware Included

Seat Bracket Components

• (4) Early Bronco floor-mounted seat brackets
• (1) Optional passenger-side spacer bracket (for Broncos without under-seat storage)

Installation Hardware

• (6) 5/16" x 1" NC bolts
• (2) 5/16" x 1/2" NC bolts
• (10) 5/16" flat washers
• (8) Seat bracket-to-slider spacers
• (1) 5/16" x 3/4" NC taper head bolt
• (3) 5/16" x 1" NC button head bolts
• (7) 5/16" x 3/4" NC button head bolts
• (2) 5/16" large flat washers
• (2) 5/16" nylock nuts

Installing Floor Brackets in a 1966-77 Ford Bronco

1. Driver-Side Early Bronco Seat Brackets

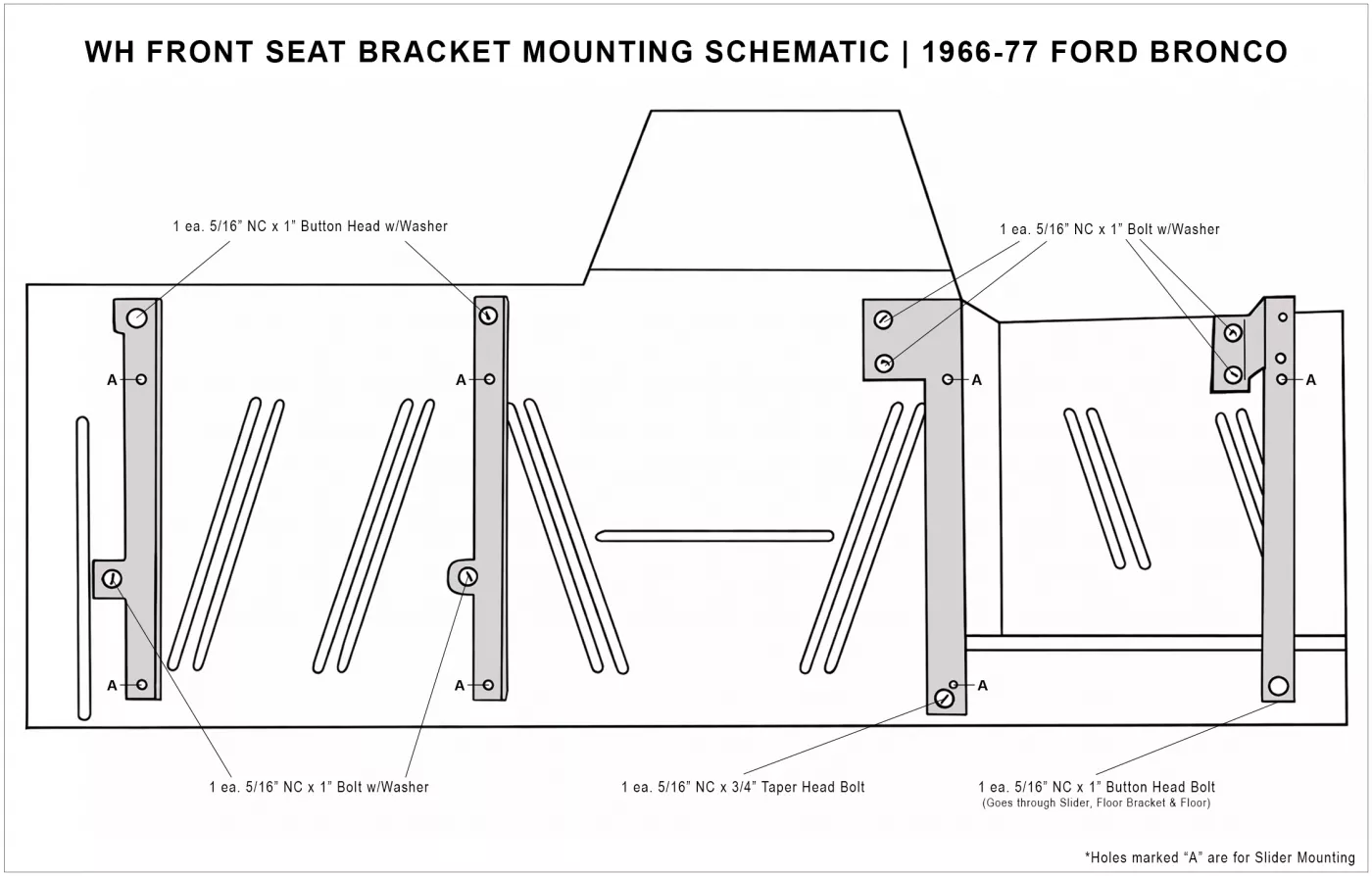

   Bolt the driver-side front seat brackets to the Bronco floor using the supplied hardware as shown in the reference image. Test-fit the Caballo seat before final tightening. The slotted mounting holes allow minor adjustment to account for variations between Early Broncos.
2. Passenger-Side Seat Brackets
   Install the passenger-side brackets as shown in the reference image. If you have not purchased the under-passenger storage option for your Early Bronco, attach the optional spacer bracket to the bottom of the left passenger floor bracket using (2) 5/16" x 1/2" bolts.
3. Drilling Rear Mounting Holes (Passenger Side)
   Drill the (2) rear mounting holes in the passenger-side floor. Always confirm seat position and check under the Bronco for fuel lines, electrical wires or other components that should be avoided before drilling. Secure the brackets underneath the Bronco using large flat washers and 5/16" nylock nuts.
4. Mounting Seats to Floor Brackets
   Attach the seat sliders to the floor brackets using the supplied spacers between the slider and bracket. These spacers provide clearance for the bracket mounting bolts. Refer to the seat slider-to-seat instructions to verify correct slider orientation on the Caballo seats.

Installation Note:
Use (7) 5/16" x 3/4" NC button head bolts through the seat slider and spacer into the threaded holes in the floor brackets:
• (4) bolts on the driver side
• (3) bolts on the passenger side (marked “A” in the reference image)

Installing Seat Sliders on Caballo Classic Seats

Date: 01/09/2026 | Revision: 2

1. Seat Frame Mounting Holes
   Reference Pic #1 showing the underside of the seat (material removed for illustration only). Use the holes indicated by the circles. Both front and rear sliders mount using the holes farthest toward the rear of the seat.
   The upholstery does not need to be removed - fold it under to access the holes.
2. Slider Installation
   Place spacers between the seat frame and sliders. Bolt the sliders to the seat frame. Referencing Pic #2, push down on the front of the slider lever to move the sliders forward and expose the rear bolt holes for installation. Push down on the front of the slider lever again and slide the sliders back to access and install the front bolts. Once front and rear bolts are installed, tighten all bolts securely.
3. Towel Bar Orientation
   In Pic #3, slide the towel bar onto the sliders. The bend at the front of the towel bar must face toward the seat, not the floor. This orientation makes the seat adjustment handle easier to reach once installed in the Early Bronco.

Once installed, the Caballo seat and slider assemblies are ready to be mounted into your Early Bronco.

Early Bronco Seat Installation – Quick Reference

WILD HORSES 4x4
Your Source for Early Bronco Seats, Seat Brackets, and Restoration Parts
Phone: (209) 400-7200 | Fax: (209) 943-7923
