Premium Carbon Fiber Seat Heater | Trimmable SKU: 3428
Premium Carbon Fiber Seat Heater | Trimmable
Product Overview:
Bring modern-day comfort to your classic seat setup with this Trimmable Carbon Fiber Seat Heater Kit. Each kit is designed to install discreetly beneath the upholstery of one seat, offering reliable warmth with cut-to-fit flexibility. The 7-position switch gives you total control over heat settings, and the included harness makes installation straightforward. Whether you're upgrading your daily driver or adding a little extra comfort to your restored trail rig, this kit is a smart, subtle upgrade that brings your old iron into the modern age.
Full description
Bring modern-day comfort to your classic seat setup with this Trimmable Carbon Fiber Seat Heater Kit. Each kit is designed to install discreetly beneath the upholstery of one seat, offering reliable warmth with cut-to-fit flexibility. The 7-position switch gives you total control over heat settings, and the included harness makes installation straightforward. Whether you're upgrading your daily driver or adding a little extra comfort to your restored trail rig, this kit is a smart, subtle upgrade that brings your old iron into the modern age.

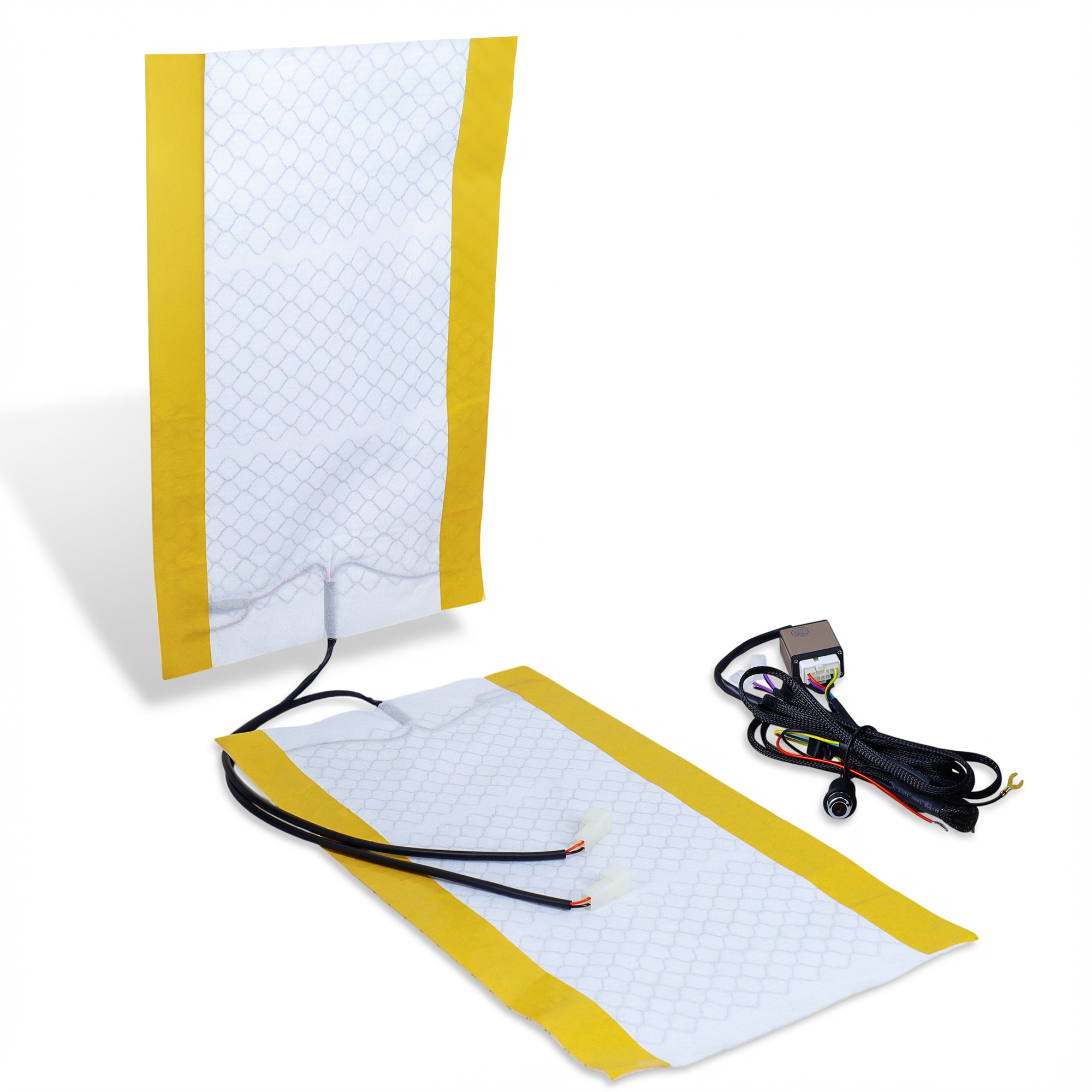

Premium Trimmable Seat Heater Kit | Carbon Fiber Element
Add modern comfort to your vintage ride with this Trimmable Carbon Fiber Seat Heater Kit, designed for easy installation in any classic vehicle seat, including Early Broncos and other vintage trucks. Built using the same advanced heating technology found in modern vehicles, this kit delivers reliable therapeutic warmth with a clean, factory-style finish. Each kit is sold individually and includes everything needed to outfit one seat—a great addition for off-season driving or all-weather comfort.
-
Carbon Fiber Heating Elements: Two 10" x 19" flexible pads per seat provide fast, even heat distribution.
-
Trimmable Design: Pads can be cut to fit your specific seat contours—ideal for classic vehicle upholstery.
-
7-Position Switch Included: Choose between 6 heat settings low to high—mountable on dash, console, or hidden location.
-
Complete Wiring Harness: Kit includes relays, fuses, and all connectors for a clean, reliable install.
-

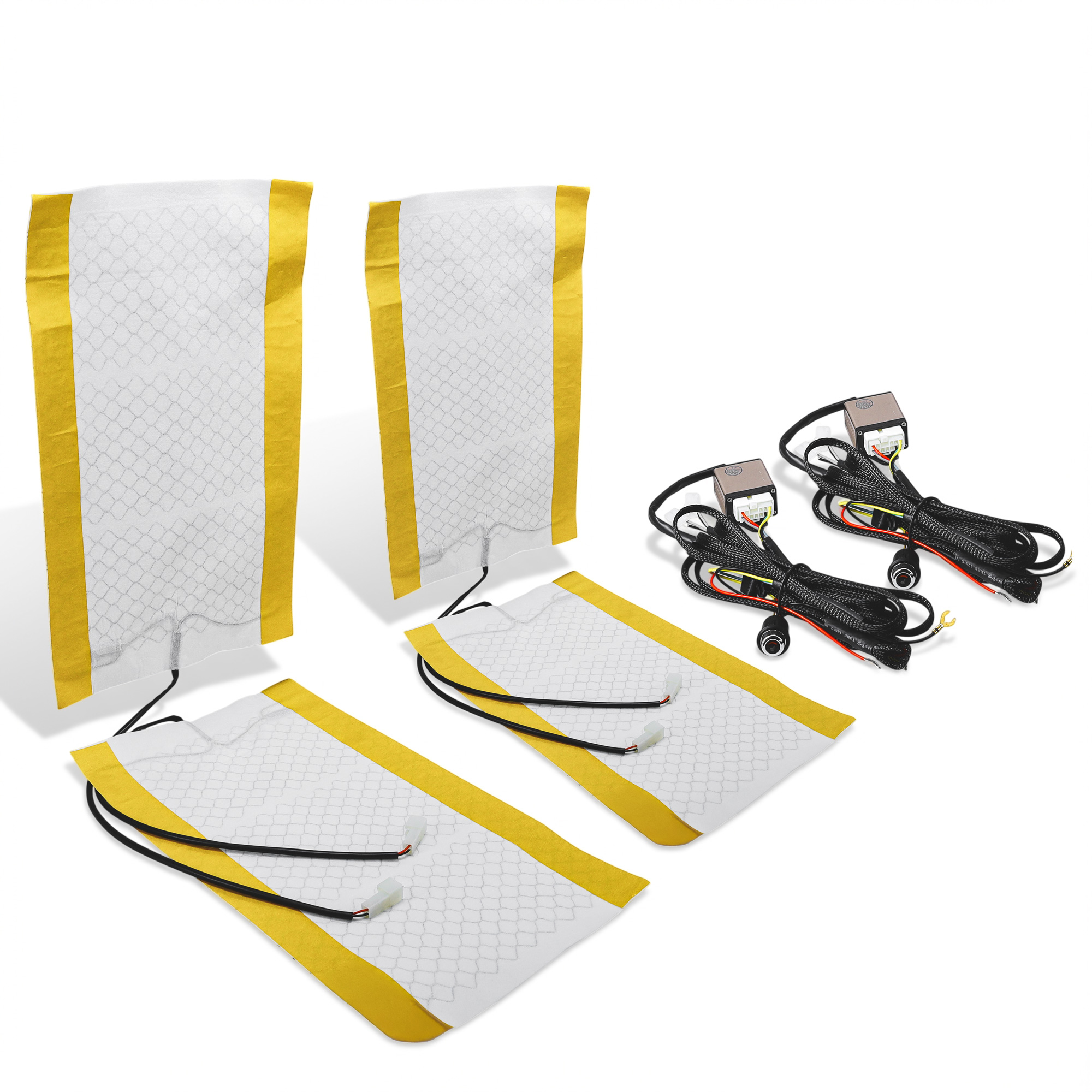

Sold Per Seat: Each kit equips one seat—order one kit per seat to fully upgrade your interior.
Bring modern comfort to your classic Bronco with this carbon fiber seat heater kit - trimmable and built to equip your vintage seats with safe, reliable heat.

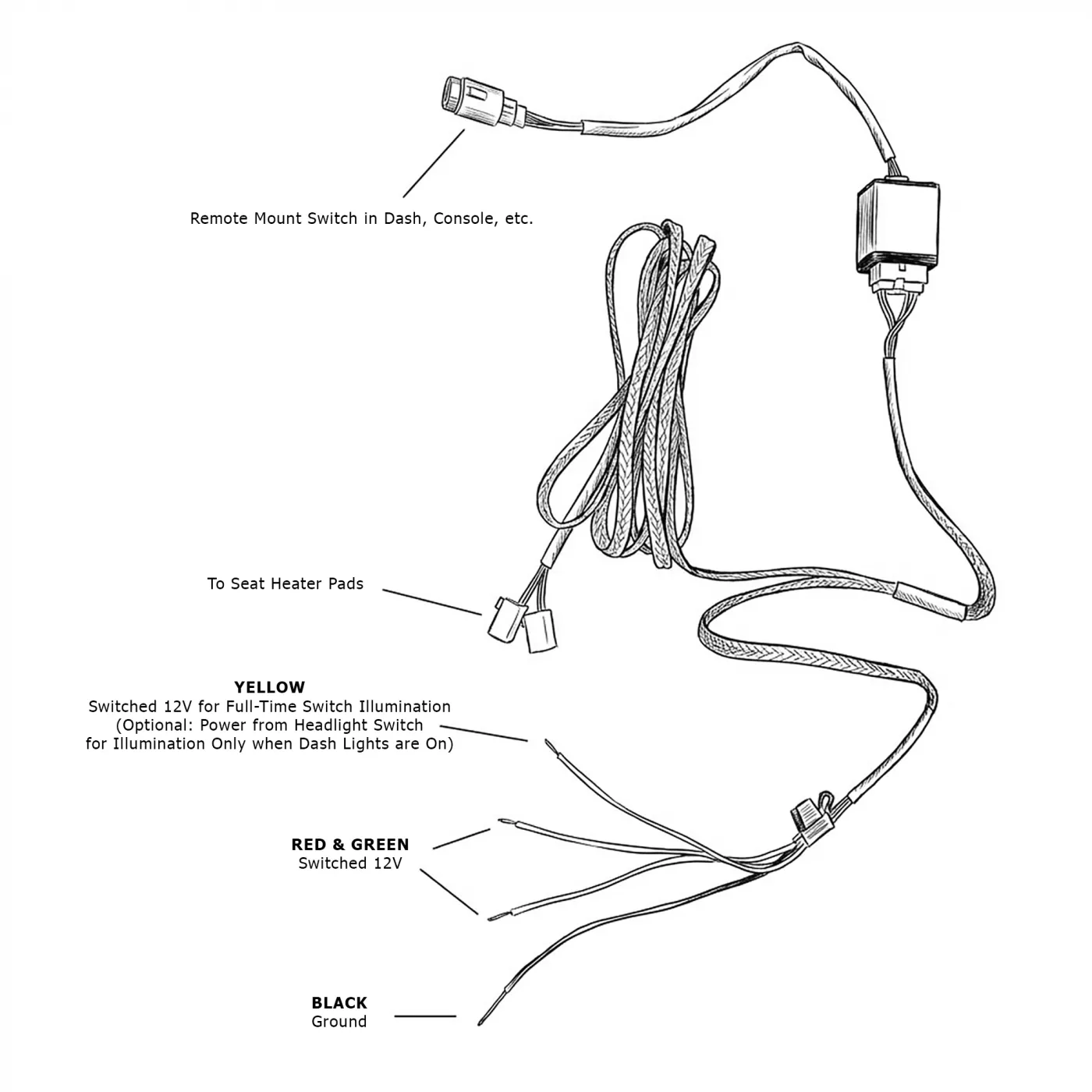

Seat Heater Wiring Schematic
Wiring Schematic for Carbon Fiber Seat Heaters
| Wire Color | Function |
|---|---|
| Black | Ground |
| Red | Switched 12V |
| Green | Switched 12V |
| Yellow | Switched 12V for Constant Illumination (Optional: Power from light switch with lights for nightime illumination only) |
- Note the Purple/Black wired connectors from the controller go to the Red/Black wired connectors on the Seat Heater Pads

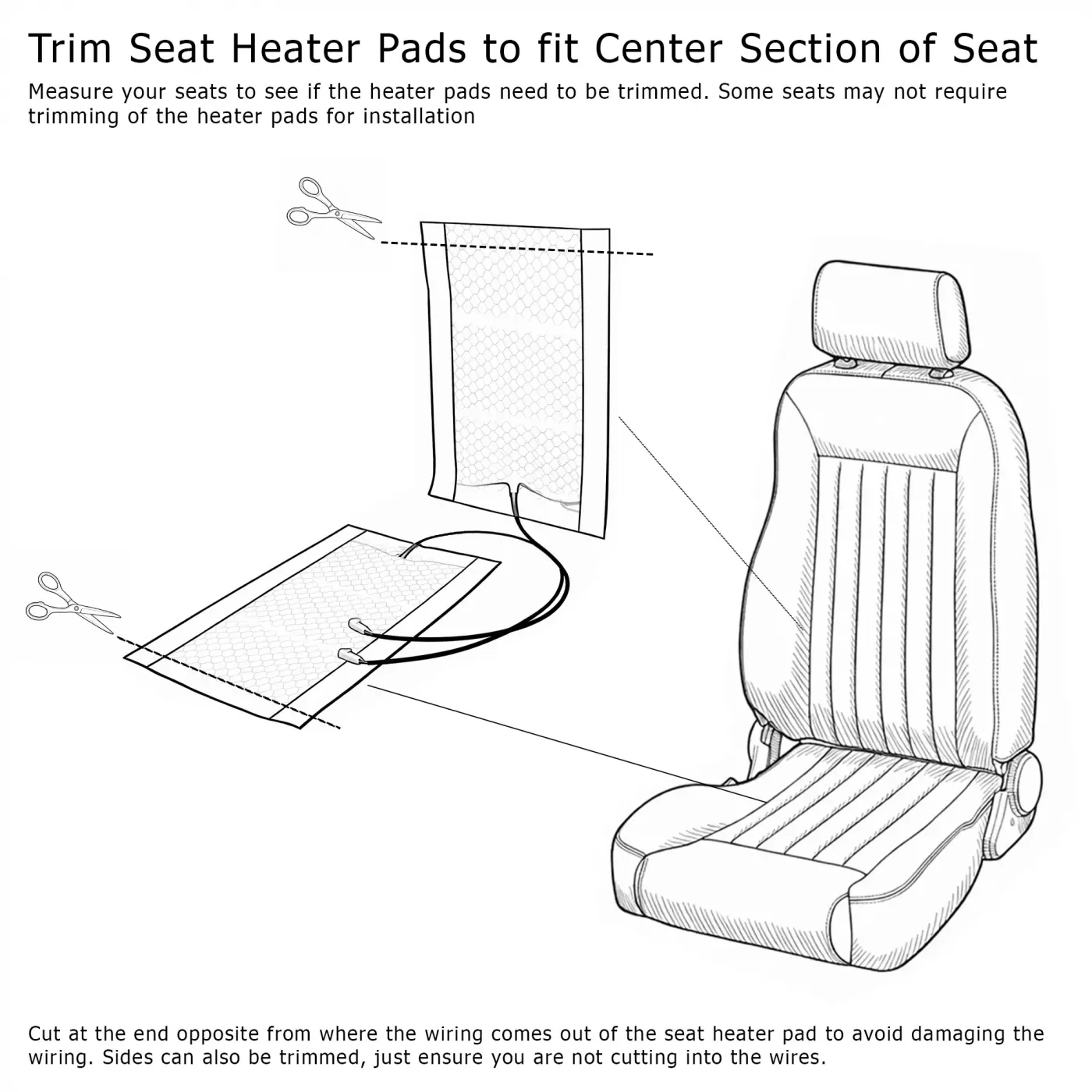

How to Trim Seat Heaters for Installation
How to Trim Seat Heaters for Installation
Before installing the seat heater pads, carefully measure the area of the seat where they will be installed. The pads may need to be trimmed to fit your specific seat. If trimming is required, only cut along the top or sides of the pad. Do not cut or trim the end of the pad where the wiring exits, as this may damage the heater element.

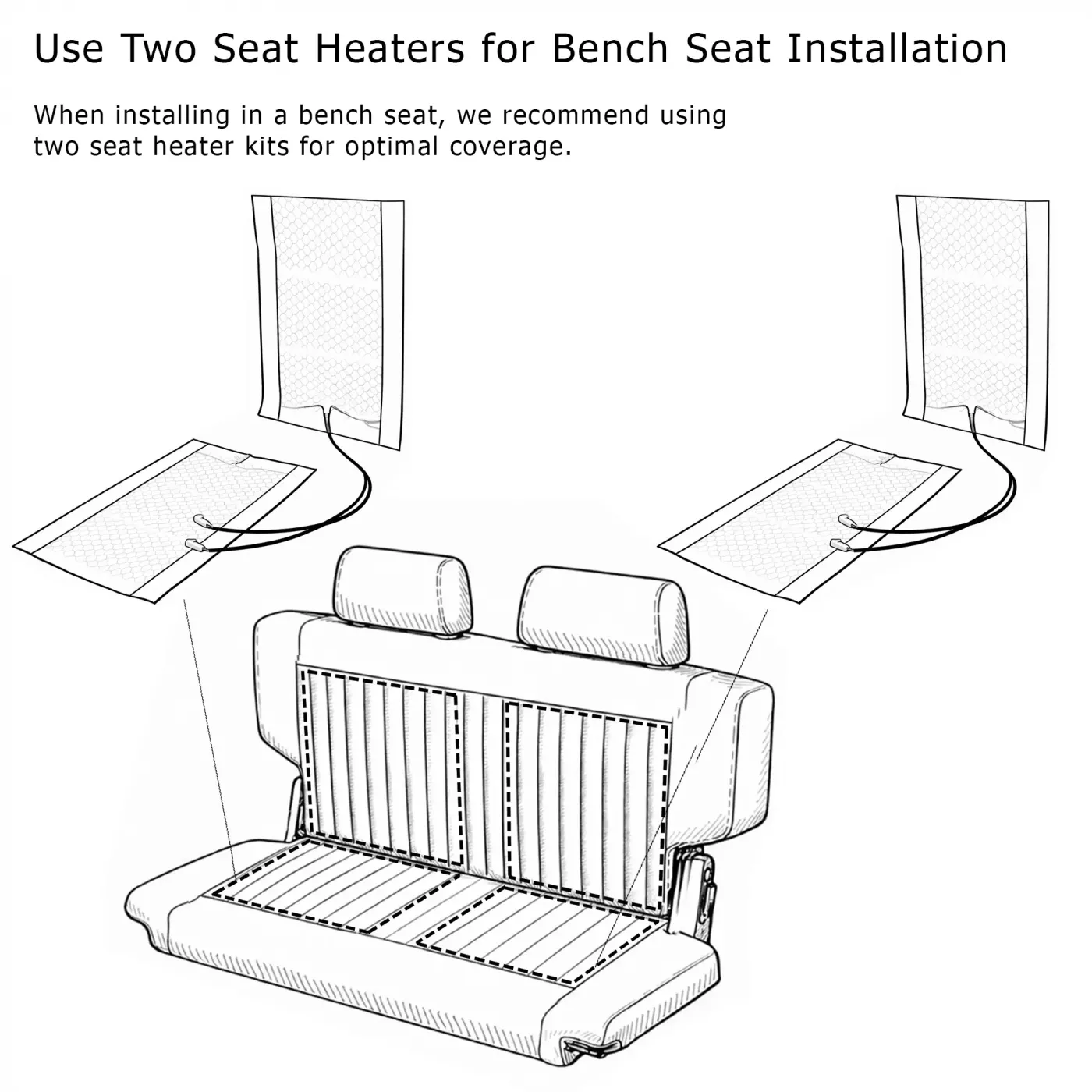

Installing Seat Heaters in a Bench Seat
Installing Seat Heaters in a Bench Seat
If you plan to install seat heaters in a bench seat, we generally recommend purchasing two kits to support both seating positions in the bench seat.
