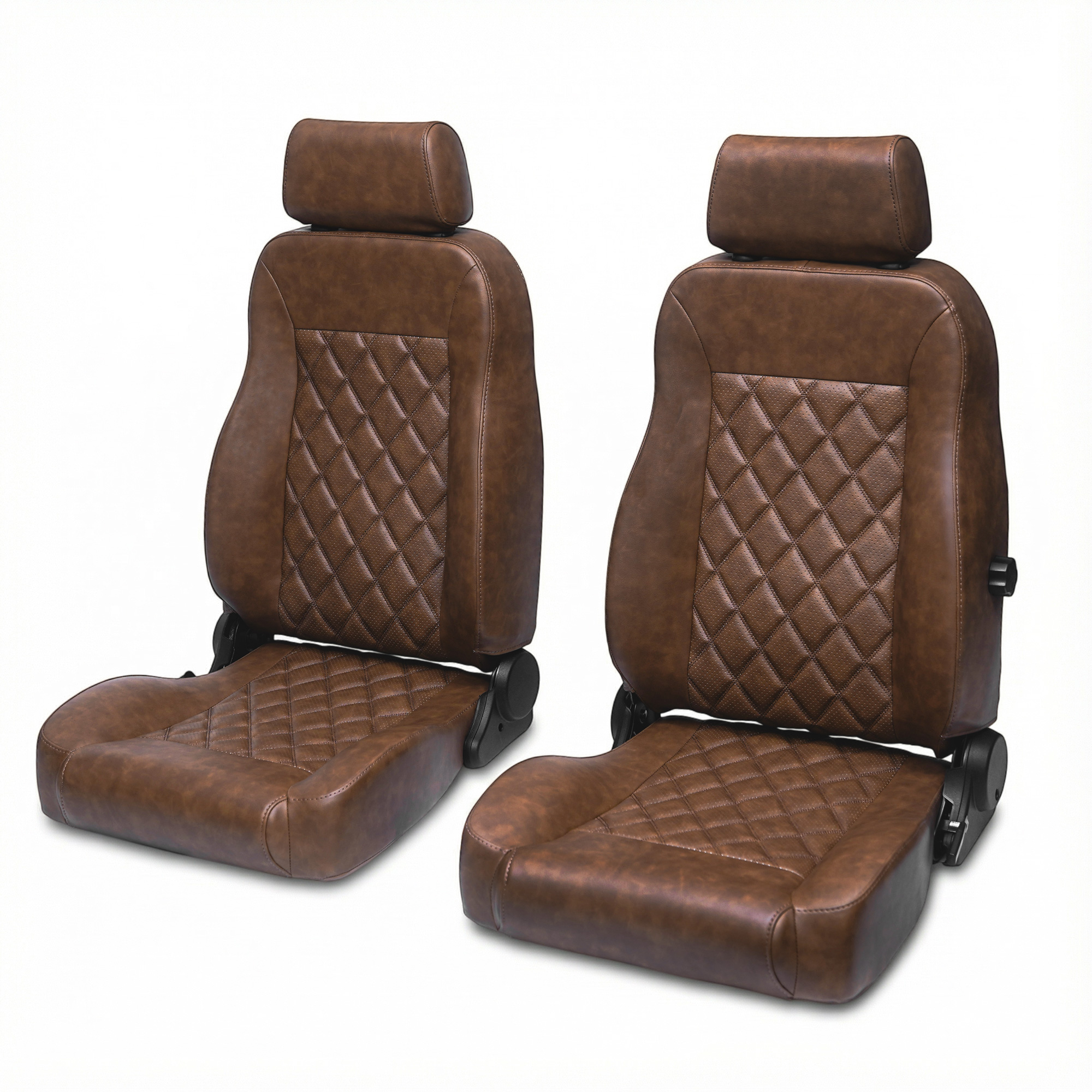

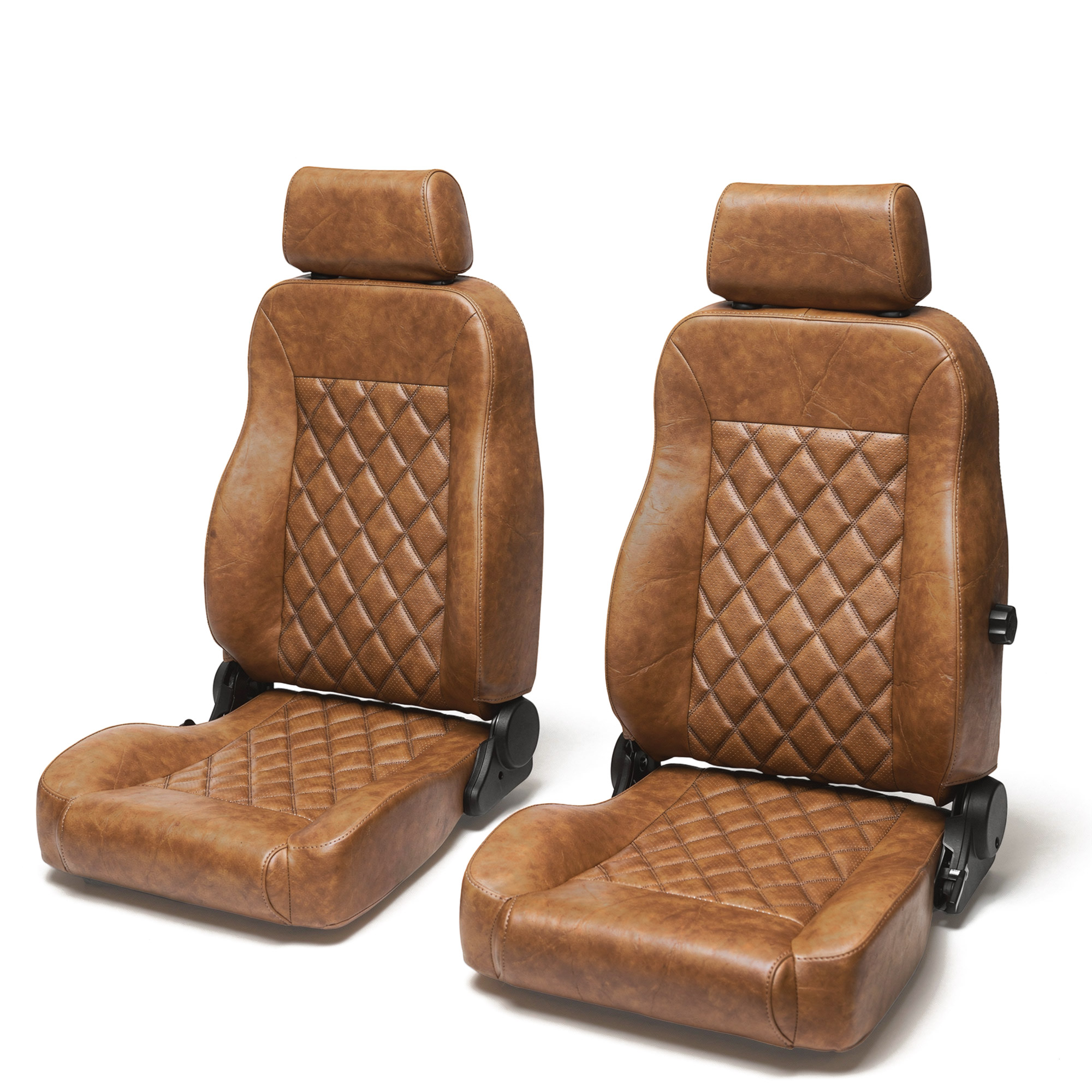

Caballo Front Bucket Seats | Whiskey Diamond | 66-77 Ford Bronco SKU: 366061
Caballo Front Bucket Seats | Whiskey Diamond | 66-77 Ford Bronco
Product Overview:
Upgrade your 66-77 Ford Bronco's interior with the Caballo Whiskey Diamond Front Bucket Seats. Combining the timeless elegance of classic American muscle cars with modern comfort and functionality, these seats are the perfect addition to enhance your driving experience.
- Custom Diamond Stitch Pattern
- Premium Vegan Leather Material
- Manual Lumbar Adjustment
- Fully Reclining Backrest
Full description
Upgrade your 66-77 Ford Bronco's interior with the Caballo Whiskey Diamond Front Bucket Seats. Combining the timeless elegance of classic American muscle cars with modern comfort and functionality, these seats are the perfect addition to enhance your driving experience.
- Custom Diamond Stitch Pattern
- Premium Vegan Leather Material
- Manual Lumbar Adjustment
- Fully Reclining Backrest
Caballo Whiskey Diamond Early Bronco Front Bucket Seats
Elevate your 66-77 Ford Bronco's interior with the luxurious and stylish Caballo Whiskey Brown Diamond Front Bucket Seats. Designed to provide the ultimate in comfort and performance, these seats are a perfect blend of classic American muscle aesthetics and modern functionality.
Caballo 66-77 Ford Bronco Front Bucket Seats Features:
- Classic Design: Inspired by the iconic styling of American muscle cars from the 60s and 70s, the Caballo Classic Seat is not your typical aftermarket seat. It offers a unique high-back design that combines style and performance.
- Comfort Tailored for You: The foam in these seats is custom-molded to conform to your body’s natural curvature, while the manual lumbar adjustment allows you to dial in the perfect fit for your specific body type.
- Fully Adjustable: Each pair of seats comes with specific left and right hand backrest adjust levers and manual front-to-rear sliders, allowing you to customize your seating position to your exact requirements. The fully reclining backrest offers optimal comfort.
- Premium Materials: Wrapped in premium vegan leather that looks and feels luxurious, while providing durable all-weather protection. The material is easy to clean and resistant to tearing or pilling.
- Low Profile Design: The seat base is designed to be as low profile as possible, maintaining a supportive and comfortable driving experience without obstructing your view of traffic lights and overhead signs. This feature is particularly useful in classic Broncos where the low windshield frame is known for causing visibility issues.
Specifications:
- Manual Lumbar Adjustment: Provides personalized back support for long drives.
- Custom Molded Foam: Ensures a perfect fit and enhanced comfort.
- Fully Reclining Backrest: Allows for wide adjustment range to suit your preference.
- Front-to-Rear Manual Sliders: Included for easy positioning
. - Premium Vegan Leather: Offers durable, easy-to-maintain protection and a high-end look.
- Low Profile Seat Base: Designed for maximum visibility and comfort in the Bronco.
Installation Note:
- Mounting Brackets:
- Select standard mounting brackets or brackets with passenger seat underseat storage.
- Passenger seat mounting bracket requires drilling two holes for the rear mounting points.
- Driver seat mounting bracket bolts directly to the factory seat mounting holes.
Upgrade your 66-77 Ford Bronco with the Caballo Whiskey Diamond Front Bucket Seats. Order now to enjoy unmatched comfort, style, and functionality in your classic Bronco!
INSTALLATION NOTES Detailed Vehicle Fitment
Year
Make
Model
1966
Ford
Bronco
1967
Ford
Bronco
1968
Ford
Bronco
1969
Ford
Bronco
1970
Ford
Bronco
1971
Ford
Bronco
1972
Ford
Bronco
1973
Ford
Bronco
1974
Ford
Bronco
1975
Ford
Bronco
1976
Ford
Bronco
1977
Ford
Bronco
Early Bronco Front Seat Brackets Installation Instructions – Caballo Classic Seats Application: WH Front Seat Brackets for Caballo Classic Front Seats WILD HORSES 4x4 - Early Bronco Parts & Accessories These instructions cover installation of WILD HORSES front seat brackets designed specifically for Early Bronco Caballo Classic front seats. Parts & Hardware Included Seat Bracket Components Installation Hardware Installing Floor Brackets in a 1966-77 Ford Bronco Installation Note: Installing Seat Sliders on Caballo Classic Seats Date: 01/09/2026 | Revision: 2 Once installed, the Caballo seat and slider assemblies are ready to be mounted into your Early Bronco. Early Bronco Seat Installation – Quick Reference WILD HORSES 4x4 Front Seat Installation Instructions
Fits: 1966-77 Ford Bronco (Early Bronco)
Date: 01/09/2026 | Revision: 2
Phone: (209) 400-7200 | Fax: (209) 943-7923
Bolt the driver-side front seat brackets to the Bronco floor using the supplied hardware as shown in the reference image. Test-fit the Caballo seat before final tightening. The slotted mounting holes allow minor adjustment to account for variations between Early Broncos.
Install the passenger-side brackets as shown in the reference image. If you have not purchased the under-passenger storage option for your Early Bronco, attach the optional spacer bracket to the bottom of the left passenger floor bracket using (2) 5/16" x 1/2" bolts.
Drill the (2) rear mounting holes in the passenger-side floor. Always confirm seat position and check under the Bronco for fuel lines, electrical wires or other components that should be avoided before drilling. Secure the brackets underneath the Bronco using large flat washers and 5/16" nylock nuts.
Attach the seat sliders to the floor brackets using the supplied spacers between the slider and bracket. These spacers provide clearance for the bracket mounting bolts. Refer to the seat slider-to-seat instructions to verify correct slider orientation on the Caballo seats.
Use (7) 5/16" x 3/4" NC button head bolts through the seat slider and spacer into the threaded holes in the floor brackets:
• (4) bolts on the driver side
• (3) bolts on the passenger side (marked “A” in the reference image)
Reference Pic #1 showing the underside of the seat (material removed for illustration only). Use the holes indicated by the circles. Both front and rear sliders mount using the holes farthest toward the rear of the seat.
The upholstery does not need to be removed - fold it under to access the holes.
Place spacers between the seat frame and sliders. Bolt the sliders to the seat frame. Referencing Pic #2, push down on the front of the slider lever to move the sliders forward and expose the rear bolt holes for installation. Push down on the front of the slider lever again and slide the sliders back to access and install the front bolts. Once front and rear bolts are installed, tighten all bolts securely.
In Pic #3, slide the towel bar onto the sliders. The bend at the front of the towel bar must face toward the seat, not the floor. This orientation makes the seat adjustment handle easier to reach once installed in the Early Bronco.
Task
Key Details
Driver seat brackets
Use slotted adjustment; verify Caballo seat position before final tightening.
Passenger seat brackets
Rear holes require drilling; secure with large washers and nylock nuts.
Optional spacer bracket
Used when under-seat storage is not chosen; mounts beneath left passenger bracket.
Seat sliders
Spacer install is optional but recommended. Use caution sliding to avoid injury.
Towel bar direction
Front bend faces the seat for easy adjustment.
