Wiring Harness Master Kit, 66-77 Ford Bronco SKU: 6016

Early Bronco Wiring Harness Master Kit

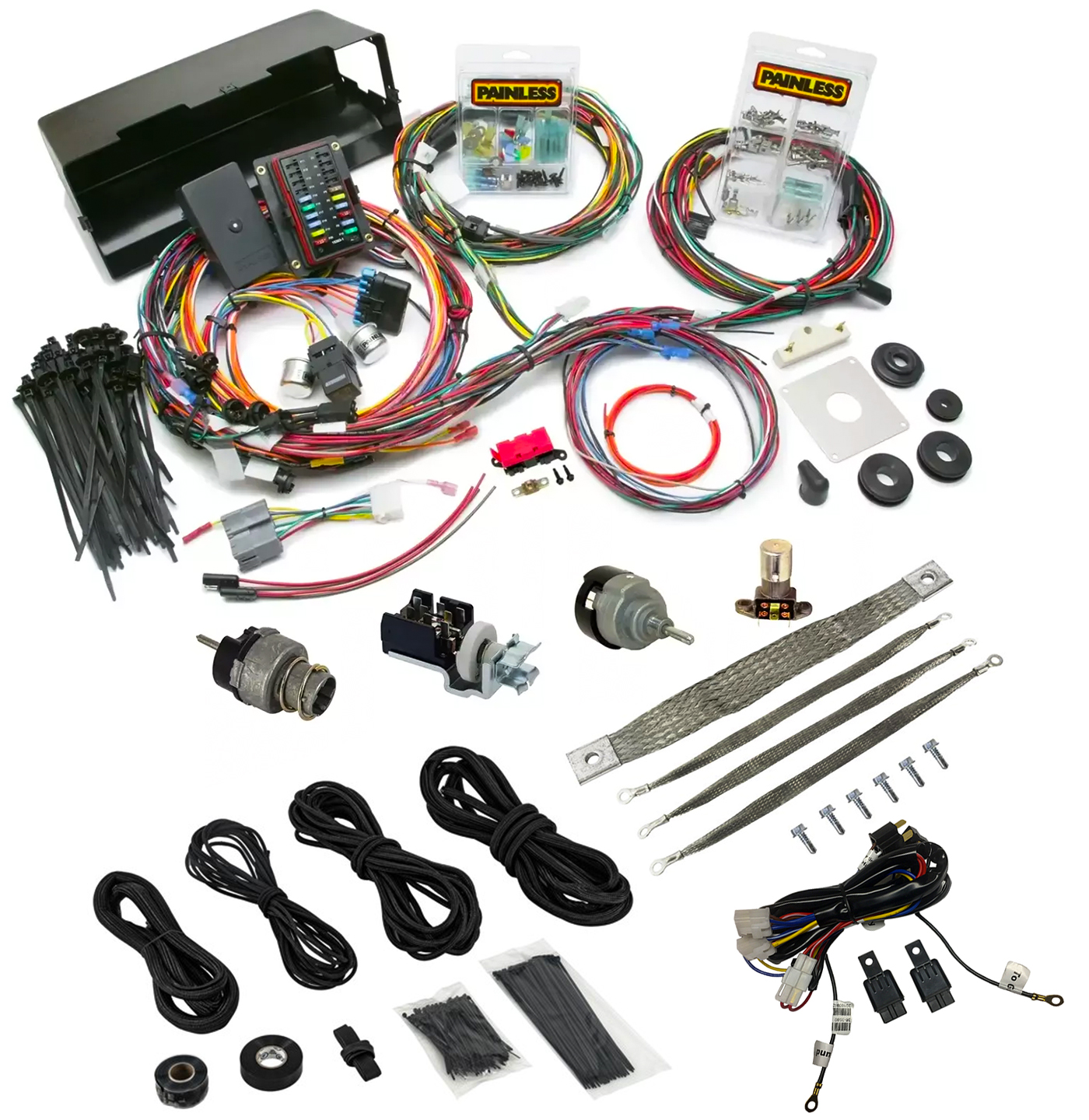

Revolutionize your 66-77 Ford Bronco with the ultimate wiring upgrade! The WILD HORSES master kit starts with the Painless 28-Circuit Direct Fit Wiring Harness. It is designed with input from Bronco enthusiasts to ensure flawless installation and performance. This comprehensive harness features factory-style molded connectors, high-quality XL wire, and a full weatherproof design with 20-circuit and 8-circuit fuse blocks.

The WH switch kit includes ignition, headlight, dimmer and wiper switches.

We've added a ground stap kit to ensure the most important part of any wiring project, grounding body to frame to engine.

The Nite Lighter extra heavy duty headlight harness will pull power directly from the battery for headlight operation.

To complete the system we include our wiring harness loom kit with more than enough split braied loom for the entire harness.

Bonus features include a molded plastic glove box with a cutout for fuse block installation. With color-coded wiring schematics, nine customizable accessory wires, and a user-friendly, full-color instruction manual, this harness offers enhanced functionality, durability, and ease of installation.

Product Highlights:

• Perfect Fit: Painless 28-Circuit Direct Fit Wiring Harness specifically designed for 1966-77 Ford Broncos. Engineered with input from Bronco enthusiasts for flawless installation and performance.


• Comprehensive Design: This is a completely new harness from the ground up, featuring factory-style molded exterior light connectors, Ford turn signal connectors, and a Ford dimmer switch connector.


• Quality Materials: Constructed with high-quality XL wire, factory machine crimps, and all necessary terminals and connectors. Printed wire and detailed instructions ensure an easy installation.


• Weatherproof: Features a full weatherproof design, including a 20-circuit covered fuse block and an 8-circuit auxiliary fuse block, both weatherproof and conveniently located.


• Bonus Features: Includes a molded plastic glove box to replace the factory cardboard one, with a cutout for the fuse block installation.



Why Choose This Wiring Harness?

• Enhanced Functionality: Designed to match Ford's color-coded wiring schematics, making installation straightforward.


• Customizable: Nine accessory wires pre-wired on individual circuits in the fuse block allow for custom tailoring to your specific vehicle needs.


• User-Friendly: Comes with a full-color, 80+ page instruction manual, ensuring even beginners can tackle the installation.


• Durability: Backed by a full lifetime warranty, ensuring you get a reliable and long-lasting product.



Technical Specs:

• Number of Fuses: 23 Fuses with Horn Relay


• Harness Length: Factory Fitment


• Fuse Type: Mini Blade & Maxi Fuse


• Firewall Passthrough: Multiple Grommet


• Color Code Based: 1966-1977 Bronco


• Circuit Designations: Printed wire tags on all connectors and printed on wire for open-ended wires


• Connectors Included: Hazard flasher, turn flasher, horn relay, heater switch, turn switch, wiper motor, dash indicators, lights and instruments, wiper washer, headlights, park lights, turn signals, horn, dimmer switch, voltage regulator, tail lights, and a parts kit with necessary factory Ford terminals.



Includes Circuits for:

• A/C & Heat
• Accessory B+ (Multiple)
• Backup Lights
• Brake Lights
• Charging
• Cigarette Lighter
• Dome and Courtesy Lights
• Electric Choke
• Emergency Flashers
• Fused Power Source
• Headlights
• Horn (Relay)
• Ignition Coil
• Instrument Panel Lighting and Gauges
• Park Lights
• Radio/Clock (Constant and Switched)
• Starting
• Tail Lights and License Plate Light
• Turn Signals
• Wipers and Washer Pump

Upgrade your Bronco with the most advanced and comprehensive wiring harness available. Ensure your classic ride is equipped with the best, providing reliability and enhanced performance for all your adventures.

Transform your Bronco's wiring system with the Early Bronco Painless Wiring Harness and experience the difference in quality, performance, and ease of installation today!
