Reid Racing Flat Top Extreme Duty Dana 44 Knuckles (pair) SKU: 8711

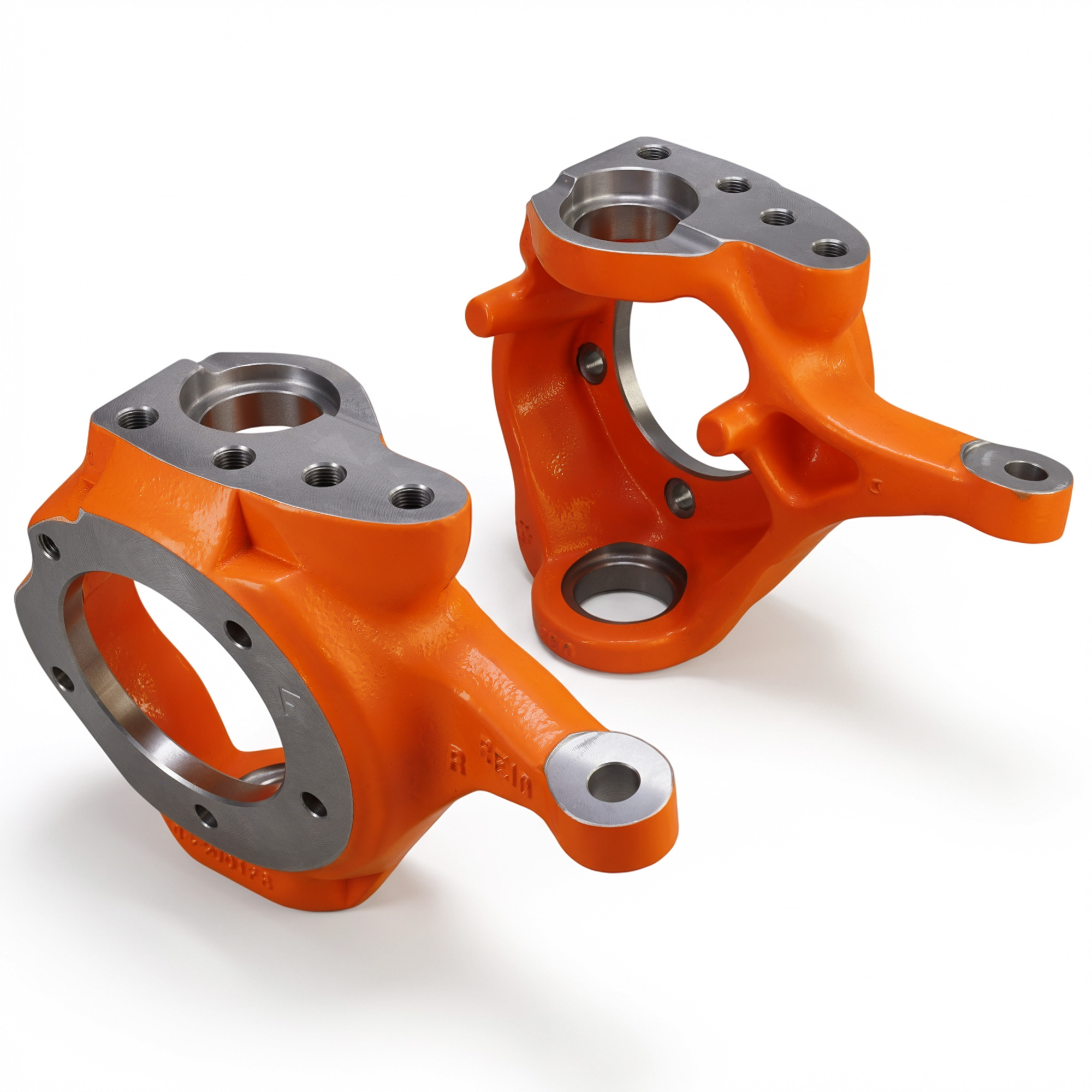

Reid Racing Flat Top Extreme Duty Dana 44 Knuckles (pair)

Reid Racing Flat Top Extreme Duty Dana 44 Knuckles Pair

Product Overview:

The Reid Racing Flat Top Extreme Duty Knuckles are designed for off-road use. Uses larger F-150 style tie rod ends.

Full description

The Reid Racing Flat Top Extreme Duty Knuckles are designed for off-road use. Uses larger F-150 style tie rod ends.

Reid Racing Flat Top Extreme Duty Knuckle PAIR

Cast from high strength ductile iron
Beefed up with extra material and ribbing
Flat tops machined and drilled for high steer arms
4th bolt hole for high steer arms increases clamping force and sheer strength (3 hole high steer arms still fit)
3/8" thickness added to flat top of the knuckle for high steer tie rod to leaf spring clearance
Cast-in DUAL steering stops eliminate bent stop bolts that can cause u-joint and axle failures
Tapered tie rod holes accept 78-79 Bronco or 76-79 F150 tie rod ends
Tie rod holes can be drilled to accept 3/4" heim ends
Powder coated bright orange for long lasting looks
Interchangeable with all factory and aftermarket Dana 44 components
Fully machined and ready for installation
Tie rod hole is tapered from the bottom to the top
Based on the Bronco disc brake knuckle and fit 1/2 and 3/4 ton brakes
The only aftermarket knuckle available for a Ford Dana 44.

Knuckles for off road use only. There is no warranty on this product.
*Please note these do not come with studs, you can reuse your current studs or order a new stud kit #8706

Side View	Left Knuckle
Click Any Image to Enlarge

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Gene Miller, January 1, 2021

Q: I have a 74 chevy dana 44 front axle with rcv's and was wondering if these would fit and would the rcv slide through the center hole? I don't mind converting everything to ford from the knuckle out as long as the rcv slides out the center hole, Chevy knuckles don't allow this and its a pain to service my carrier with my current setup
Thanks for your time

⮞ 1 Answer

Answered by ☆ sales - January 4, 2021

A: Yes, these knuckles do allow for RCV's to slide through assembled, but, the spindle and brake requirements are different, and the steering arms come out towards the wheels. So, you need complete Ford or aftermarket brakes and spindles, and wheel clearance and tie rod connection is different.

Asked by Robert, June 6, 2014

Q: Will these knuckles fit a Dana 44 IFS from late 80 through early 90's? I actually own a 93 Ranger 4x4 with Dana 35, but have read about the advantages of converting to 44 knuckles and outer stub shafts for the improved wheel bearing spacing and axle strength. I like the appearance of your product and was very curious about their interchangability with a stock Dana 44 IFS knuckle? A second question, can the top ball joint boss be milled to accept a standard Dana 35 upper balljoint.

Rob

⮞ 1 Answer

Answered by ☆ sales - June 9, 2014

A: This particular set of knuckles fits standard early to late 70s Fords with Ford disc brake 1/2 ton stuff. Year range approximately 71-79. Not designed for the IFS years.

NEED HELP? Talk to a BRONCO expert today! (209) 400-7200

PRODUCT REVIEWS

Paxton

Reviewed 07/22/2020

Bolted right up to my 79 bronco dana 44 no issues at all!

Kevin

Reviewed 02/12/2018

I installed these on my 1976 F-150 Custom 4x4. The install went well, everything fit with the exception of the brake calipers. The brake line didn't clear the knuckle even with the cutout from the mfgr. I was able to grind out a spot to make them fit. Might have been because of the aftermarket brake lines, not sure. But I was able to make it work.

dwade

Reviewed 08/31/2017

Reid Racing puts out quality stuff. This is a MUST if you are building a strong frontend. The factory knuckles wont withstand the stress of the big tires and lockers. I am not worried about breaking the Reid Components!

Corey C

Reviewed 09/27/2016
