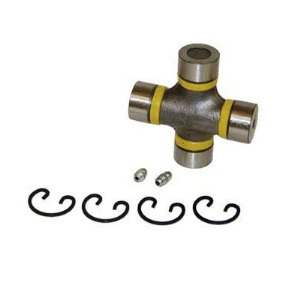

Super-Flex U-Joint for front driveshafts 1310

Item #: 8595
The off-set trunnions in this u-joint allows for 10 degrees more flexibility than would be otherwise obtainable. It is designed to solve a binding problem and is best suited for slower speed traditional rock crawling and on the front driveshaft only.
Price:

Description

The unique design of off-set trunnions sets the mating yokes further apart than a conventional joint. This allows for 10 degrees more flexibility than would be otherwise obtainable.

The Super-Flex universal joint was not designed to be a cure all, but rather specifically to solve a binding problem that one may incur under situations such as front axle droop.

The Super-Flex joint does cause some vibration problems. This is due to the introduction of the 3rd plane of operation, which will cause the drive shaft to run eccentric. The amount of eccentricity is a function of how steep the drive shaft runs to begin with.

In our opinion the Super-Flex joint is best suited for slower speed traditional rock crawling and for the front drive shaft only. Keep in mind front driveshaft binding is normally not an issue until you go over 3.5" of suspension lift, and then it depends on the travel capabilities of the suspension that you are using.

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
www.P65Warnings.ca.gov
Super-Flex U-Joint for front driveshafts 1310
Item #: 8595

Product Reviews

Write a review

Fixed my issue
Jun 29, 2020  |  By Austin McDaniel
Review star icon Review star icon Review star icon Review star icon Review star icon
I have a sas ranger and the front driveshaft was binding up and this fixed my problem. Great product and it got here fast.

8595 Offset UJ (1310)
Jul 11, 2012  |  By JC
Review star icon Review star icon Review star icon Review star icon Review star icon
There is no problem so far with the 1st, installed on the transfercase/front drive shaft, but the front drive shaft to front axle has to wait until the front springs are rebuilt.

Superflex UJ 8595, 1310
Mar 30, 2012  |  By JFCJR
Review star icon Review star icon Review star icon Review star icon Review star icon
Order No.182012A Ordered 2-26-12, arrived 3-5-12, waited until weather warmed up, installed on 3-28-12,on 5500 Lb 75 K5, 10.125" lift with 17/40-15 Monster Mudders, installed on front drive shaft to NP205 Xfercase. Road tested 3-29-12, found OK, very satisfied. With 5-153X stock UJ, it was hitting even with yoke on NP205 ground some and large yoke on the drive shaft. Road tested at 30 MPH on dry pavement, part time 4x4, hubs locked, slight pulsation noise, deemed more than ACCEPTABLE. Will put same on front drive shaft to front axle when add more lift and put it on rear drive shaft. With part time conventional 4x4 I do not go over 30 mph in 4x4 on the pavement.
