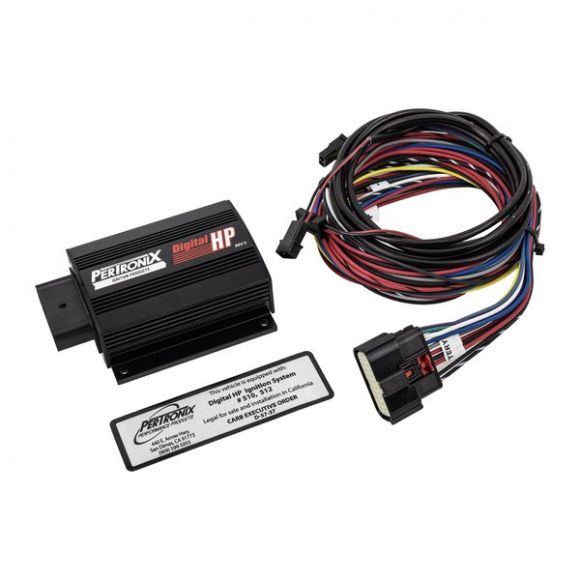

PerTronix 510 Digital HP Ignition Box, Black Anodized Finish SKU: 8092

PerTronix 510 Digital HP Ignition Box | Black Anodized Finish

When you're building a vehicle that needs reliable spark at high RPMs, the PerTronix 510 Digital HP Ignition Box delivers. This compact unit packs over 187 mJ of spark energy—30% more than the competition—ensuring consistent combustion and throttle response even under extreme conditions. With features like a 3-step digital rev limiter, adjustable start retard, and onboard diagnostics, it's built for serious performance without taking up serious space.

• High-output spark energy: Delivers over 187 mJ for stronger combustion and improved throttle response

• Multiple spark to redline: Maintains multiple sparks all the way up to 7,000 RPM for optimal performance

• Integrated 3-step digital rev limiter: Provides burnout, launch control, and over-rev protection

• Adjustable start retard: Facilitates easier starting for high-compression engines

• RPM-activated trigger: Controls shift lights, solenoids, and other RPM-dependent devices

• Ultra-compact design: 70% smaller than comparable units, allowing for versatile mounting options

• Locking automotive connector: Ensures secure and clean wiring connections

• Tachometer output lead: Provides a pure digital tach signal compatible with most OE tachometers

• Onboard diagnostics: Features tach calibration and error logging for easy troubleshooting

Additional Info

• Operating voltage: 9–22 volts

• Current draw: 1.2A per 1,000 RPM

• Dimensions: 4.18" L x 3.75" W x 1.65" H

• Housing: 6061-T6 aluminum with black anodized finish

• CARB EO Number: D-57-37 (50-state legal)

• Warranty: Limited 1-year warranty

Upgrade your ignition system with a PerTronix 510 HP Ignition Box, delivering over 187 mJ of spark energy for improved combustion and better throttle response.
