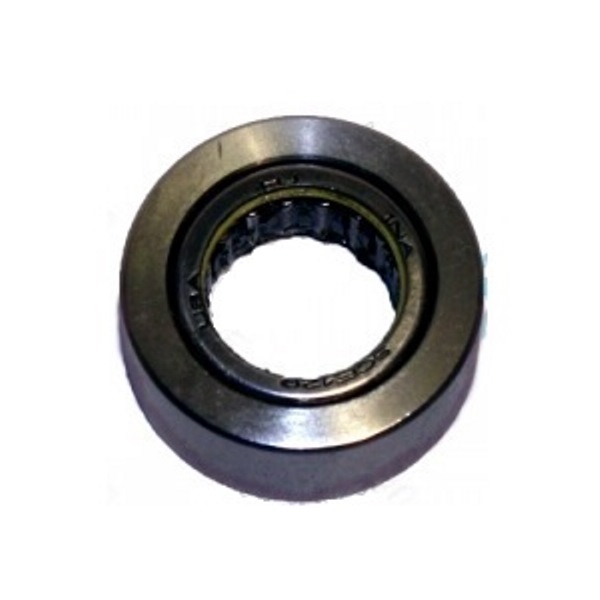

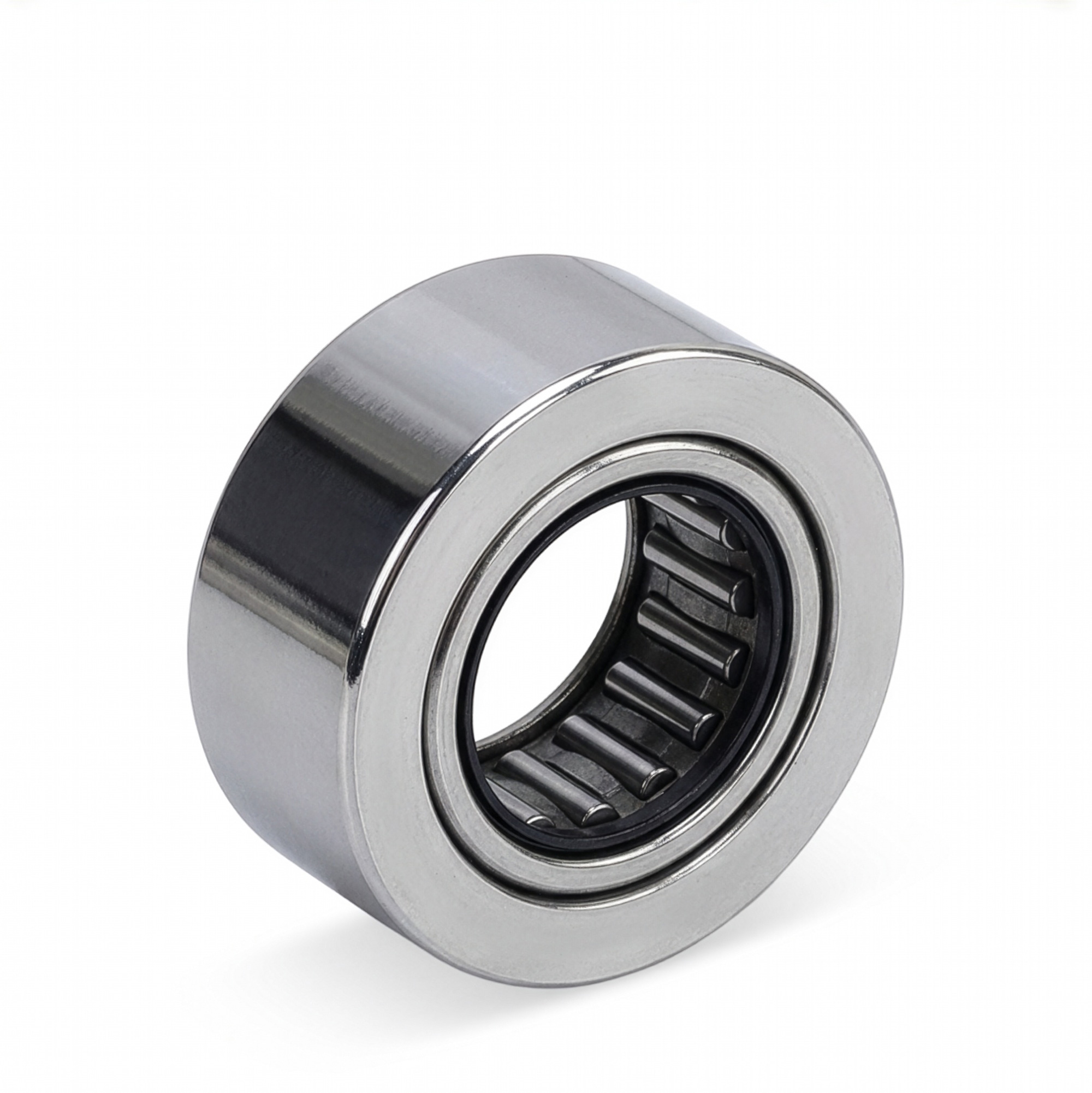

NV3550 / NV4500 Pilot Bearing Bushing SKU: 7210
NV3550 / NV4500 Pilot Bearing Bushing
NV3550 / NV4500 Pilot Bearing Bushing
Product Overview:
This AA 716122 custom pilot bearing is for adapting some Ford 302 / 5.0L / 351W engines to transmissions with a .750" pilot tip.
Full description
This AA 716122 custom pilot bearing is for adapting some Ford 302 / 5.0L / 351W engines to transmissions with a .750" pilot tip.
This custom pilot bearing is for adapting some Ford 302 / 5.0L / 351W engines to transmissions with a .750" pilot tip. The bearing is supplied in several Advance Adapter kits including the Ford to NV4500, NV3550 and AX15 transmissions. This pilot bearing is commonly offered in AA kits where an adapter plate is used in conjunction with a factory Ford bellhousing. This AA 716122 pilot bearing is frequently sought after for conversions where the AA shorter 716169 lacks the needed extended length.
The dimensions of the 716122 pilot bearing are:
O.D X I.D. X LENGTH
1.377" X .750" X .500"
The dimensions of the 716122 pilot bearing are:
O.D X I.D. X LENGTH
1.377" X .750" X .500"
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Gery, February 22, 2023
Q: IS the pilot bearing bushing included in the Deluxe NV3550 adaptor kit?
⮞ 1 Answer
Answered by ☆ sales - February 22, 2023
A: The pilot bearing bushing is included in both the 7199 and 7207 NV3550 kits.
Asked by Anonymous, August 4, 2020
Q: which pilot bearing do I use for zf conversion
⮞ 1 Answer
Answered by ☆ sales - August 5, 2020
A: To our knowledge, the ZF uses the same pilot bearing/bushing as the stock 3 speed, like #8103.
