ICON 2-3" Suspension Lift, Billet Arms, Stage 5, 21-24 Ford Bronco Sasquatch SKU: 6G-6316

ICON Vehicle Dynamics Stage 5 Ford Bronco Suspension System

The ICON Stage 5 Suspension System is designed to take your 2021-UP Ford Bronco's ride quality and off-road performance to the next level. Featuring precision-manufactured, custom-valved remote reservoir coilover shocks, this kit maximizes suspension travel while delivering superior handling both on and off-road. You'll enjoy the ability to adjust the ride height, offering 2-3" of front lift and 1.25-2.25" of rear lift over stock Sasquatch-equipped 4-door Broncos.

With remote reservoirs that increase shock oil volume and heat dissipation, you'll reduce the risk of overheating and damper fade during aggressive use. This means sustained performance even through rough terrain.

The Stage 5 kit includes Billet Aluminum Upper Control Arms with ICON's patented Delta Joint PRO, providing up to 90 degrees of movement while allowing on-vehicle caster and camber adjustments. This enhances articulation and durability. The rear of the Bronco also benefits from billet aluminum rear lower suspension links, which feature dual-durometer greaseless bushings and massive FK rod ends for optimal articulation and ride quality.

The rear coilovers feature a unique triple-rate design for maximum suspension travel and ride quality, achieving up to 11.5" of front and 14" of rear wheel travel when paired with 35" tires. For those running 37" tires, up-travel limiters (sold separately) are recommended.

Key Features:

• Enhanced suspension performance and superior ride quality
• Up to 11.5" front and 14” rear wheel travel with 35” tire fitment
• Adjustable coilovers for 2-3" front and 1.25-2.25" rear lift over stock 4-door Bronco with Sasquatch package.
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
• High strength alloy CNC machined lower bar pins
• Vehicle-specific, remote reservoir coilover shocks for excellent damping
• Billet aluminum UCAs with patented Delta Joint PRO for 90-degree articulation
• Rear billet lower links with on-vehicle pinion angle adjustment
• 100% bolt-on system, no drilling, cutting, or welding required

Recommended Wheels & Tires:

• Recommended Wheels
  • ICON Alloys 17x8.5 | 4.75” Backspace / 0mm Offset
  • ICON Alloys 18x9 | 5.00” Backspace / 0mm Offset
  • ICON Alloys 20x9 | 5.00” Backspace / 0mm Offset
• Recommended Tires: 35" x 12.50"
  • 37" tires require bump stop spacers and minor trimming - Use up travel limiters ICON Part #611075 in front and #611074 in rear.
  • Will fit OEM Wheels & Tires

Tech Notes:

• Shocks are fully serviceable
• Lift heights based on Sasquatch-equipped Broncos
• 2-door Broncos will sit slightly taller than 4-door models
• Bronco Everglades will have front lift height range of 1.5-2.5" over stock
• Not compatible with Bronco Raptor models
• Fitment testing conducted with ICON and OE steering components. Due to tight clearances on front coilovers, certain aftermarket steering components may not be compatible.

This system is built to conquer any terrain while offering exceptional handling, making your Bronco ready for any adventure.

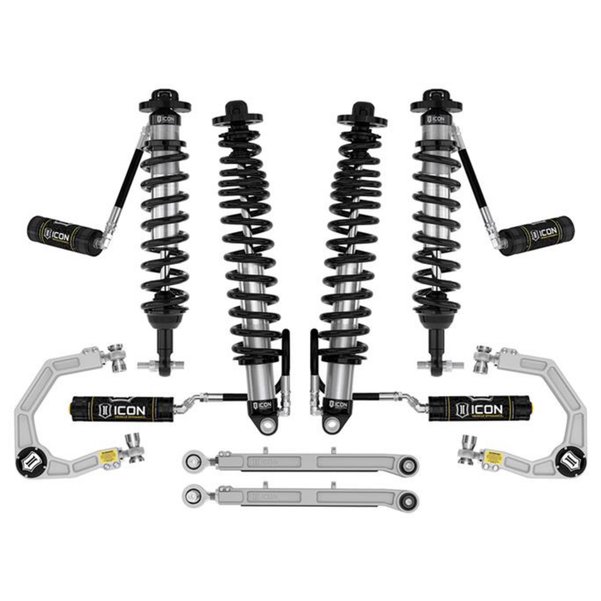

System Components:

• 48700 (QTY: 1) | 21-UP BRONCO FRONT 2.5 VS RR COILOVER KIT
• 48500DJ (QTY: 1) | 21-UP BRONCO BILLET UCA DJ PRO KIT
• 44000 (QTY: 1) | 21-UP BRONCO BILLET REAR LOWER LINK KIT
• 48710 (QTY: 1) | 21-UP BRONCO REAR 2.5 VS RR COILOVER KIT
