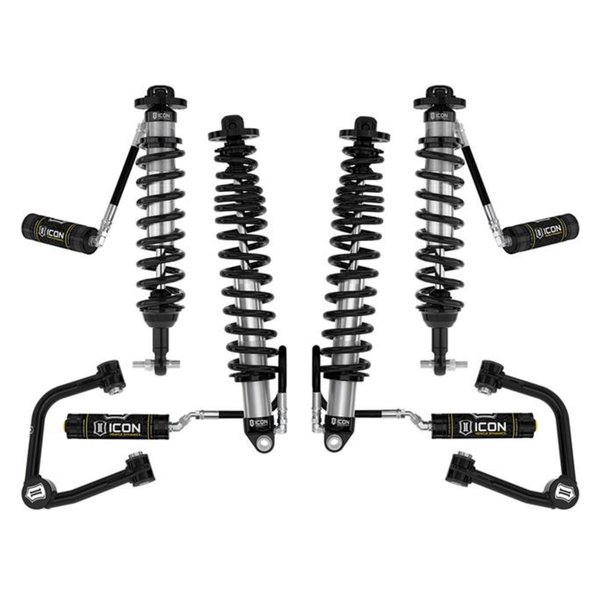

ICON 3-4" Suspension Lift, Tube Arms, Stage 4, 21-24 Ford Bronco Non-SAS SKU: 6G-6314NET

ICON 3-4" Suspension Lift, Tube Arms, Stage 4, 21-24 Ford Bronco Non-SAS

ICON 3-4" Suspension Lift, Tube Arms, Stage 4, 21-24 Ford Bronco Non-SAS

ICON 21-UP Bronco Non Sasquatch Stage 4 Suspension System TUBULAR
Free Shipping!
Purchase ICON 3-4" Suspension Lift, Tube Arms, Stage 4, 21-24 Ford Bronco Non-SAS
$5,069.80 SKU: 6G-6314NET
Fits 2021-24 Ford Bronco
0 Reviews

Product Overview:

Take your 2021+ Ford Bronco to the next level with ICON Vehicle Dynamics Stage 4 Suspension! Custom valved remote reservoir coilover shocks for unparalleled travel & ride quality. Adjustable for a front lift of 3-4” and a rear lift of 2-3” over stock Non-SAS Broncos. Remote reservoirs keep your shocks cool & performing at their best, even under tough conditions. Tubular steel upper control arms & ICON's patented Delta Joint PRO for up to 11.5" front & 14" rear suspension travel with 35" tires.

  • Adjustable Remote Reservoir Coilovers
  • Tubular Steel Upper Control Arms
  • 3-4" Front Lift & 2-3" Rear Lift (over stock non-Sasquatch Bronco)

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

Take your 2021+ Ford Bronco to the next level with ICON Vehicle Dynamics Stage 4 Suspension! Custom valved remote reservoir coilover shocks for unparalleled travel & ride quality. Adjustable for a front lift of 3-4” and a rear lift of 2-3” over stock Non-SAS Broncos. Remote reservoirs keep your shocks cool & performing at their best, even under tough conditions. Tubular steel upper control arms & ICON's patented Delta Joint PRO for up to 11.5" front & 14" rear suspension travel with 35" tires.

  • Adjustable Remote Reservoir Coilovers
  • Tubular Steel Upper Control Arms
  • 3-4" Front Lift & 2-3" Rear Lift (over stock non-Sasquatch Bronco)

The ICON Vehicle Dynamics Stage 4 Suspension System for the 2021-UP Ford Bronco features precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. To provide for sustained shock performance at speed through rough terrain, Stage 4 adds remote reservoirs to the ICON Coilovers. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 4 kit comes with Tubular Upper Control Arms which provide caster correction and feature ICON's patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible.

This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.

Features:

  • Improved suspension performance and ride quality over stock
  • Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
  • Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
  • Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
  • ICON engineered coil springs featuring a unique triple rate rear coil design
  • High strength alloy CNC machined lower bar pins
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Notes:





  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
  • APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
  • APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT
  • APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR
  • APPLICATION NOTE #135: LIFT HEIGHTS & APP NOTES BASED NON-SASQUATCH EQUIPPED VEHICLES
  • APPLICATION NOTE #137: WHEN RUNNING FACTORY LOWER LINKS USE PART #611072
  • APPLICATION NOTE #138: RECOMMEND HIGH CLEARANCE CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
  • APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED
  • TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
  • TECH NOTE: Not compatible with Bronco Raptor

System Components:

  • 48700 (QTY: 1) | 21-UP BRONCO FRONT 2.5 VS RR COILOVER KIT
  • 48400DJ (QTY: 1) | 21-UP BRONCO TUBULAR UCA DJ PRO KIT
  • 611072 (QTY: 1) | 21-UP BRONCO HOSE ROUTE KIT OEM REAR LINK 1.9"
  • 48710 (QTY: 1) | 21-UP BRONCO REAR 2.5 VS RR COILOVER KIT
