Tuffy Conceal Carry Underseat Security Drawer, 66-77 Ford Bronco 256-01 SKU: 3460

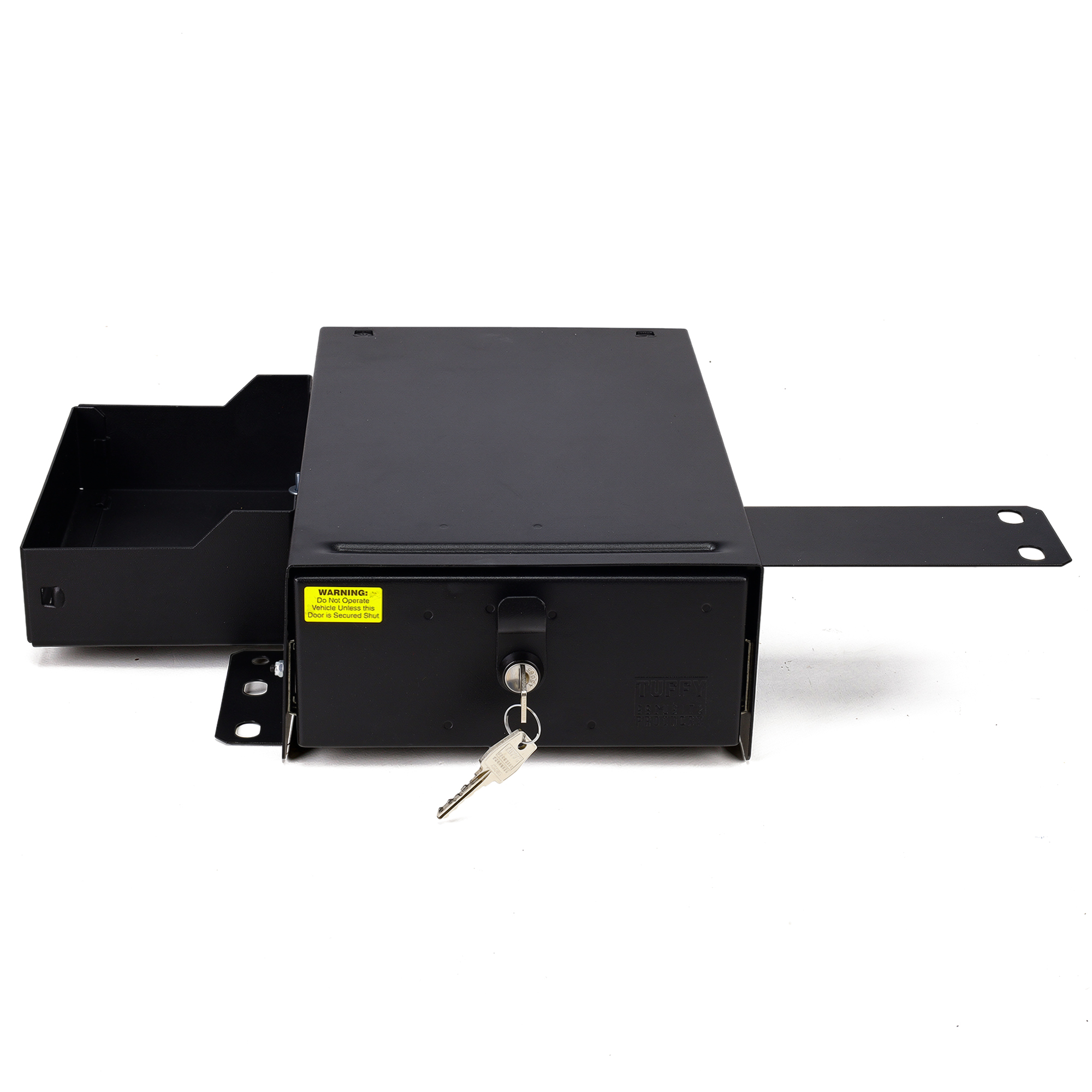

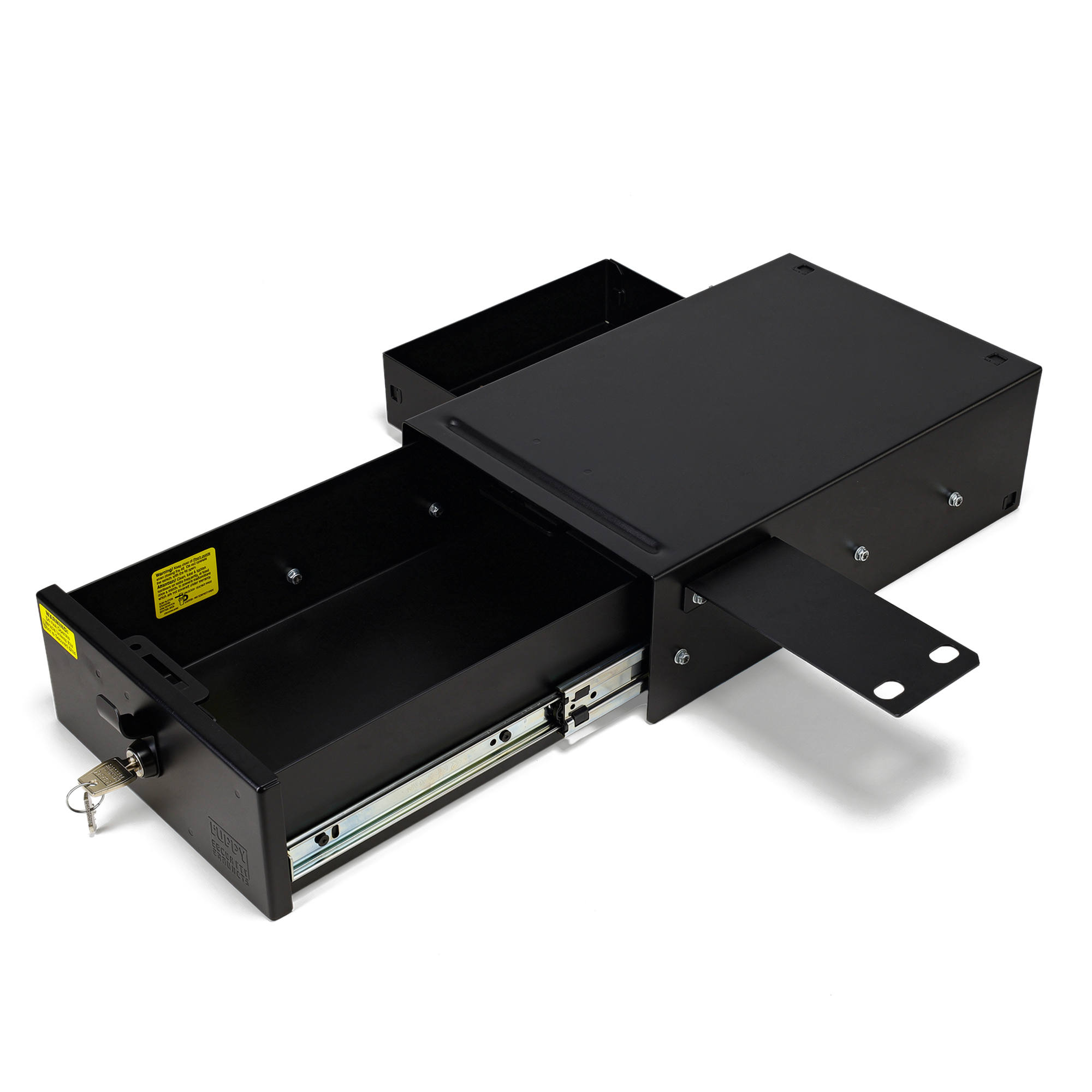

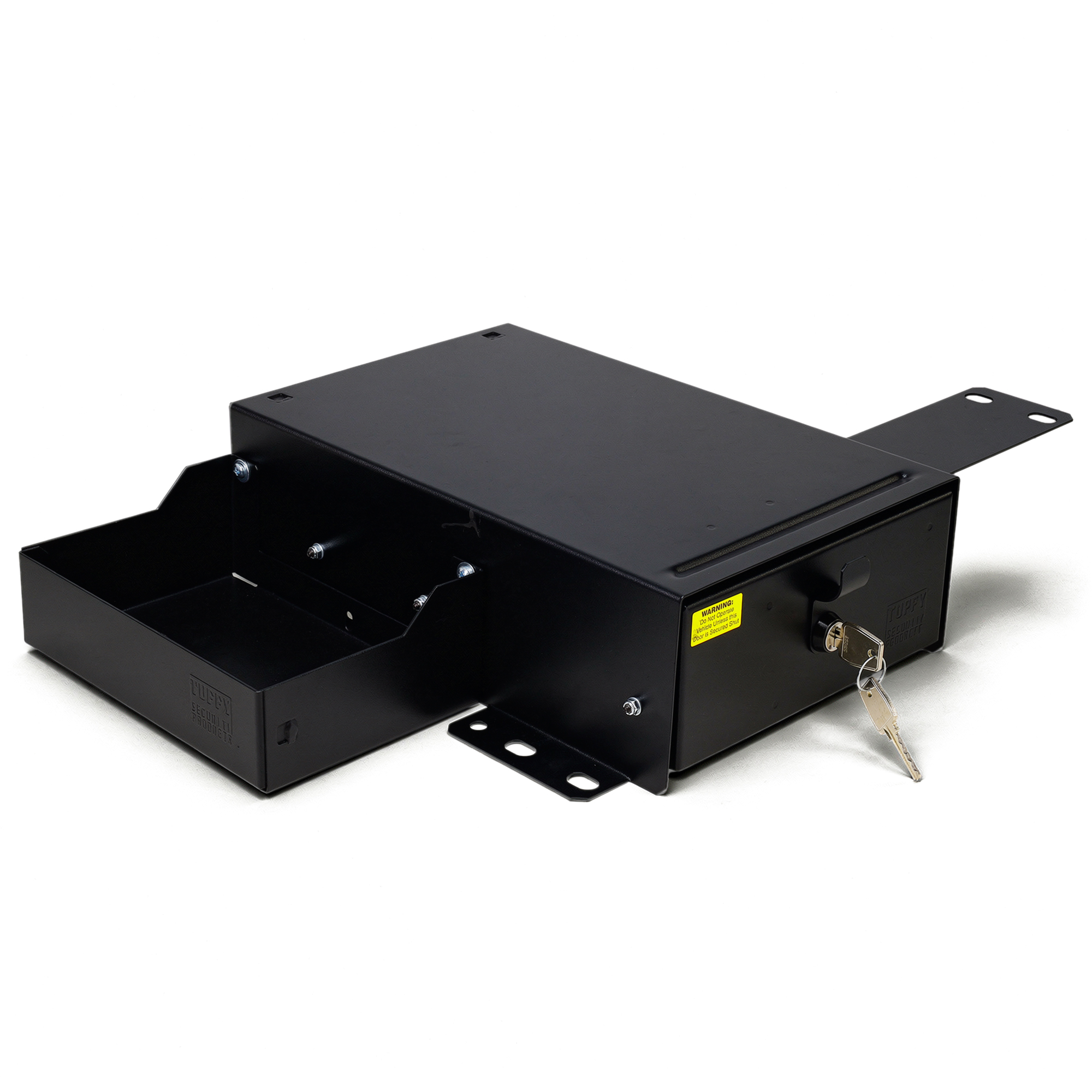

Tuffy Conceal Carry Underseat Security Drawer, 66-77 Ford Bronco 256-01

Tuffy Conceal Carry Underseat Security Drawer 66-77 Bronco 256-01

Product Overview:

This mounts inconspicuously under the passenger's side seat in an early Ford Bronco out of apparent sight of would be thieves. The form-fitting design of the Tuffy lockbox has over 439 cubic inches of lockable storage. Its secured contents are easily accessed by maneuvering the drawer open and closed on the smooth ball bearing slides using the convenient pull lever. Made to fit under your stock or aftermarket seat.

Full description

This high security 16 gauge steel security drawer mounts under the passenger's side seat in a 66-77 Ford Bronco. The formfitting design of the Tuffy lockbox has over 439 cubic inches of lockable storage. Its secured contents are easily accessed by maneuvering the drawer open and closed on the smooth ball bearing slides using the convenient pull lever.

Featuring Tuffy's Pry-Guard Locking system with a 10 tumbler double bitted security lock with built in weather seals. The design incorporates a heavy duty fully extending slide system, weather seal, side storage tray, and welded construction. A formed rib in the enclosure additionally strengthens the locking system.

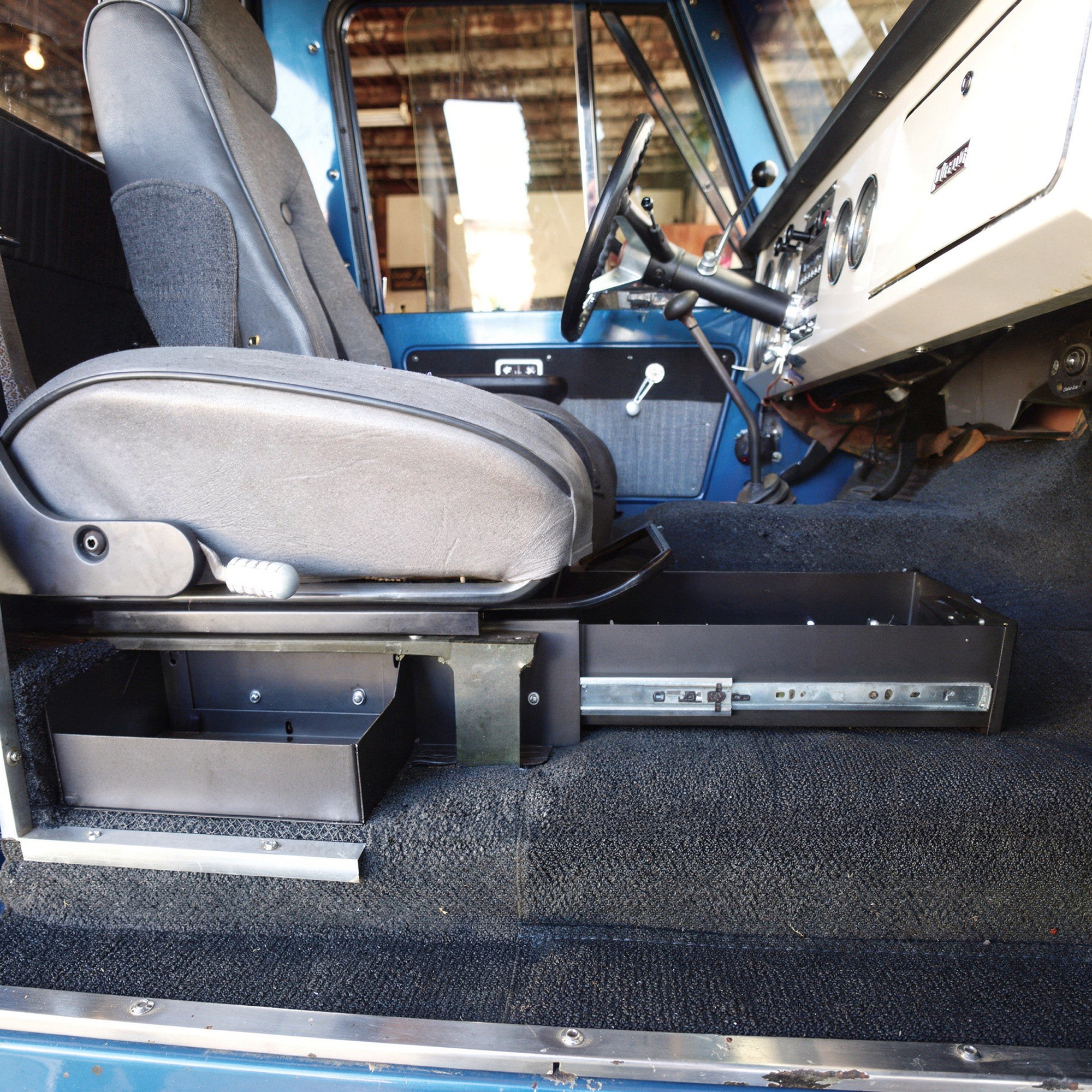

Mounts inconspicuously under the passenger's side seat in an early Ford Bronco out of apparent sight of would be thieves. Uses the factory hardware without drilling. The drawer must remain locked while operating the vehicle. Manufactured in the U.S.A.

Features:

Formed rib in the enclosure adds strength to locking system
Weather & Dust seal
16 Gauge steel
Durable texture power coat finish
Easy to install, No Drilling for standard mounting
Pry-Guard locking system with 1/8" thick steel welded components and 10 tumbler double bitted key
Pull lever for easily opening and closing drawer
Exclusive 10 tumbler double bitted lock with built in weather seals
Over 439 cubic inches of lockable storage space
Stealthy design is hidden under the seat from prying eyes
Side storage tray
Heavy duty smooth rolling ball bearing slides

Exterior Dimensions: 14 5/8"L x 9 1/4"W (17 1/4"W with mounting bracket) x 4 1/2"H

Interior Dimensions: 14 1/4"L x 8"W x 3 7/8"H

Tray Dimensions: 6"L x 9"W x 3 1/4"H

Fits: Ford Bronco '66 - '77 (with original seat and brackets OR original seat bracket mounting location)

Mounting: Mounts under passenger's side seat in an early Ford Bronco. No drilling required for standard installation. Fastens with original OEM hardware and included fasteners. View Assembly Instructions PDF
Tuffy Bronco Conceal-Carry Underseat Drawer Features

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.

Asked by Anonymous, May 19, 2014

Q: Does this item work with Corbeau seats (and Frame)?

⮞ 1 Answer

Answered by ☆ sales - May 20, 2014

A: As long as we are talking about seats in a 1966-1977 Ford Bronco and standard width Corbeau seats then the answer is yes, no problem.

NEED HELP? Talk to a BRONCO expert today! (209) 400-7200

PRODUCT REVIEWS

Randy Hendrix

Reviewed 07/03/2020

Installs fairly easily, the only inconvenience is removing the passenger seat bolts in order to slide the mounting flange under the seat bracket. Not too difficult, but did require a trip under the Bronco on a creeper. I think I read this on another review, but the drawer is so close to the floorboard that I must either remove or roll my floor mat out of the way in order to open it. The drawer only opens with the key. There is no easy push button or flip open latch. You must use the key and you cannot remove the key from the lock when it is in the "unlocked" position. I would really have preferred some sort of latch with an option to lock if desired. One last thing, the unit is not dust proof or even dust resistant in any way. I run trail doors or no doors in the summer on lots of dirt roads. If you have done this then you know the front tires can really shovel a lot of dirt right into the floorboard. This is fine for what I'm using it for, but would not carry my pistol or camera in there unless it was in a really good case. With all that said, it is a strong device that I'm sure will give many years of great service and I am reasonably happy with my purchase.

Joe Hughes

Reviewed 04/05/2017

The conceal box is very sturdy. I am concerned how well it will hold up to being stepped on while exiting the vehicle by passengers. The side tray is a tripping hazard while exiting. Due to the low profile nature of the drawer, I can not open the drawer without folding forward the thick floor mat. Inside the drawer needed padding, I added carpet to the bottom to prevent items from sliding and rattling around. Excellent product.

J.D.

Reviewed 12/26/2012

We like that this storage is under the seat, out of view and out of the way. The lock is perfect.

Sam from WA

Reviewed 11/02/2011

I recently converted over to a custom dash, and eliminated the glove box from it. This locking drawer was the perfect answer for my problem. It fits like a dream under the seat, is concealed, and looks good too. Recommended!
