Tapered Sleeves for F150 Knuckles (pair) SKU: 2382

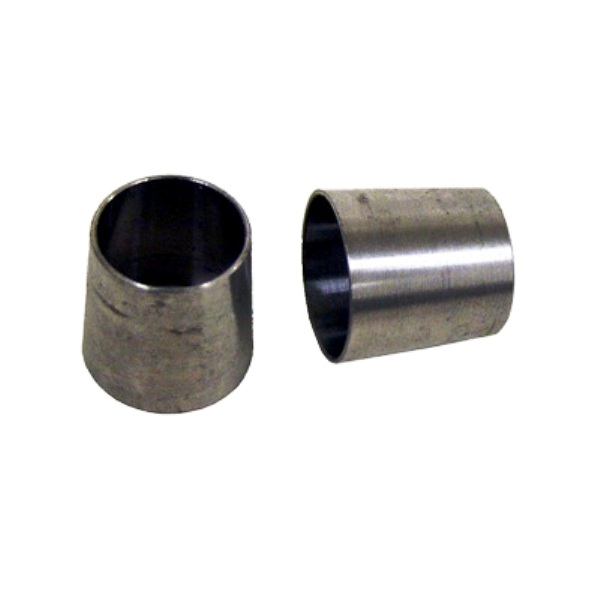

Tapered Sleeves for F150 Knuckles (pair)
Product Overview:
These sleeves are used so you can install your stock 66-75 tie rod and drag link after you convert to front disc brakes from 76-79 F150 or 78-79 Bronco. They are needed because the tapered holes in the bigger knuckles are larger. The sleeves bring the hole size down to fit the stock 66-75 tie rod.
Full description
Q&A
Have a question? Click Here to submit your question.
Asked by Doug, October 1, 2021
Q: What is the I.D. dimension of this sleeve? Do you know if it will work with a Mustang 2 outer tie rod? Thanks in advance
Answered by ☆ sales - October 1, 2021
A: The i.d. is .706 and .613. The o.d is .760 and .665 We do not know if they work or relate to a Mustang.
Asked by Doug Jourdan, October 19, 2020
Q: what is the OD of the narrow and wide ends of the taper?
Answered by ☆ sales - October 22, 2020
A: The narrow OD, small measures 0.665. The wide OD, large measures 0.760.
Asked by Glen, March 19, 2016
Q: How do install the sleeves? I put them on the linkage and tried to pull them in by tightening, but they got stuck. Now I'm trying to put the sleeve into the knuckle first, but am having a hard time. Any tips would be greatly appreciated.
Answered by ☆ sales - March 28, 2016
A: The sleeves are designed to be used in F150 or 78-79 knuckles with the larger taper. They should just slip into the knuckle, and be held in place by tightening you 67-75 size ball joint. If the taper is not large enough, you can ream to size with our #2385.
