EZ Power Window Kit, 66-77 Ford Bronco SKU: 6540

EZ Power Window Kit, 66-77 Ford Bronco

EZ Power Window Kit 66-77 Bronco

Product Overview:

This kit will make quick and easy work of installing power windows in your 66-77 Ford Bronco.

Full description

This kit will make quick and easy work of installing power windows in your 66-77 Ford Bronco.

Early Bronco Power Window Conversion Kit

Make quick work of adding power windows to your early Bronco. The new easy to install power window regulators bolt into the same holes as your existing manual regulators without modification to your door shell. A complete wiring harness is included. One small hole is needed for the wiring to pass through the door.

Choose from one of four options for your switches.

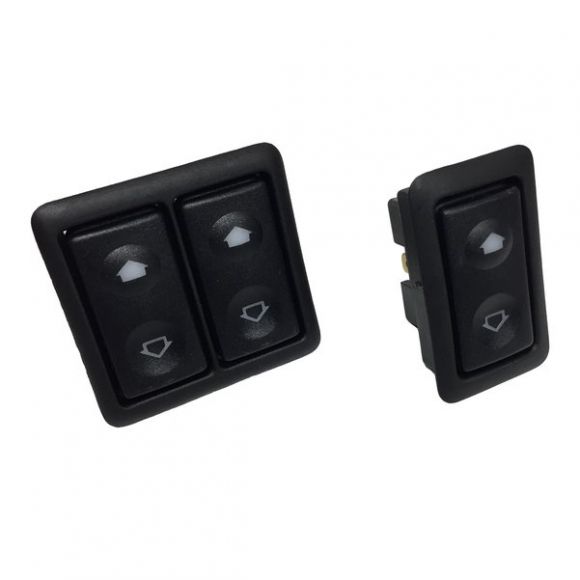

1. Black illuminated switches with dual driver side and single passenger side.
2. High Tech billet/chrome look with dual driver side and single passenger side.
3. 66-67 Nu-Cranks switches. Allows for stock or after market window crank to operate the switch just by moving the crank up or down.
3. 68-77 Nu-Cranks switches. Allows for stock or after market window crank to operate the switch just by moving the crank up or down.

Kits includes

2 Heavy duty power window regulators
Wiring harness
Window switches
Window regulator bushings with clips
Flexible wiring feed tubes

NOTE for "Nu-Cranks ONLY: Becuase the "Nu-Crank" switches control only one window, if you would like to be able to control the passenger side window from the driver side please add the optional switch above.

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Mike, June 23, 2024 22:26

Q: Trying to map out wire routing for these and potential power locks. What's the number of wires on these that need to go through the door jam?

⮞ 1 Answer

Answered by ☆ sales - June 24, 2024 16:34

A: With the black or hi tech switches there are 12 wires for the driver side an 6 wires for the passenger side. The Nu-cranks appear to only have 6 wires per side.

Asked by Richard Huffman, February 4, 2020

Q: Does this kit allow the window to drop fully into the door or does it leave part of the glass showing when in the down position?

⮞ 1 Answer

Answered by ☆ sales - February 4, 2020

A: This kit allows the window to set all the way down in the door. Just one of the reasons we love this kit!

Asked by Chris, February 4, 2020

Q: Will this work with the solid side window kits that eliminate the small triangle window?

⮞ 1 Answer

Answered by ☆ sales - February 5, 2020

A: This kit is only designed for use with the stock window. We have heard of others combining the two kits together with success, but you are mixing and matching parts to make it work together. We have no one kit to do both easily,at this time.

Asked by Nick, August 21, 2019

Q: Is there an option to control the passenger window from the driver side if you go for the Nu-Crank option which allows you to use the stock window crank as the up/down button.

⮞ 1 Answer

Answered by ☆ sales - August 21, 2019

A: Nu-Relics offers a separate chrome square GM style switch that can be wired in and hidden out of site. They do not have an original looking handle mechanism to control both from the driver door handle at this time.
