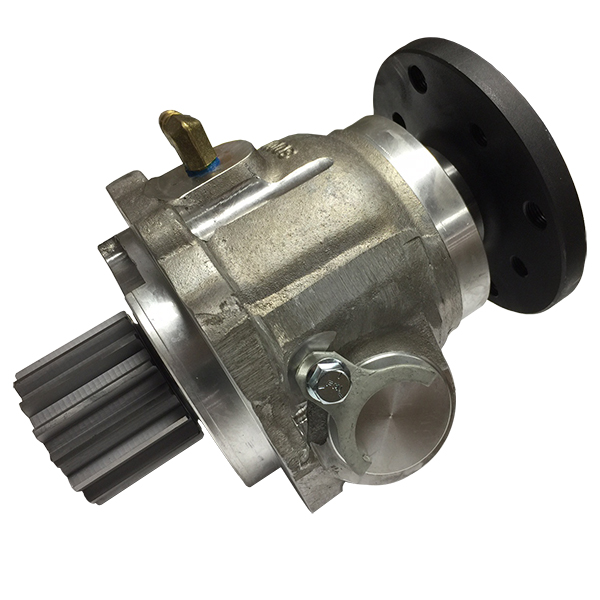

Extreme Duty Output System for Dana 20 and 1350 shaft 1350 Flange 2in pilot 4.25in bolt circle SKU: 8284

Extreme Duty Output System for Dana 20 and 1350 shaft 1350 Flange 2in pilot 4.25in bolt circle

Extreme Duty Output System for Dana 20 and 1350 shaft 1350 Flange 2in pilot 4.25in bolt circle

Purchase Extreme Duty Output System for Dana 20 and 1350 shaft 1350 Flange 2in pilot 4.25in bolt circle
$573.99 SKU: 8284

Fits 66-77 Ford Bronco
2 Reviews

Product Overview:

Ready to handle the torque and terrain your Bronco dishes out, this Extreme Duty Dana 20 Output System with a 1350-series flange is built for strength and clean installation. Ideal for rigs using GPS speedometers, this version skips the speedo gear and housing for a simplified, heavy-duty solution. With a 2" pilot, 4.25" bolt circle, and a body that’s 1.3" longer than stock, it's ready to bolt in and take the punishment your drivetrain throws at it. Pair it with a custom 1350 driveshaft and you’ve got a drivetrain upgrade that’s ready for anything.

Full description

Ready to handle the torque and terrain your Bronco dishes out, this Extreme Duty Dana 20 Output System with a 1350-series flange is built for strength and clean installation. Ideal for rigs using GPS speedometers, this version skips the speedo gear and housing for a simplified, heavy-duty solution. With a 2" pilot, 4.25" bolt circle, and a body that’s 1.3" longer than stock, it's ready to bolt in and take the punishment your drivetrain throws at it. Pair it with a custom 1350 driveshaft and you’ve got a drivetrain upgrade that’s ready for anything.


Extreme Duty Dana 20 Transfer Case Output System | 1350 Shaft

Designed for high-torque applications, this Extreme Duty Dana 20 Output System is a serious upgrade for Bronco owners looking to replace the weak factory output with a heavy-duty 1350-series flange. Ideal for builds that use a GPS speedometer, this version comes fully assembled and ready to bolt in—just connect your 1350 driveshaft and go.

This system is approximately 1.3 inches longer than stock, so be sure to factor in the added length when ordering or modifying your driveshaft. It features a 2" pilot and 4.25" bolt circle flange, compatible with heavy-duty 1350 U-joint driveshafts, which can be special ordered through WILD HORSES 4x4.


  • Fits Dana 20 Transfer Case – Great for 1966–77 Ford Bronco and custom builds

  • Pre-Assembled Output System – Ready to install right out of the box

  • Upgraded 1350-Series Flange – Supports heavy-duty driveshafts for high-performance use

  • Adds ~1.3" of Length – Keep in mind for driveshaft angle and length planning

  • Flange Specs:

    • 2" Pilot Diameter

    • 4.25" Bolt Circle

  • For GPS Speedometer Use – This version includes no speedometer gear, housing, or cable

  • Perfect for Custom Builds – Clean setup for GPS or other non-mechanical speedo configurations


Built for serious torque and trail punishment - this bolt-in Extreme Duty Early Bronco Dana 20 output replaces weak factory parts for a major strength upgrade.

Review Extreme Duty Output System for Dana 20 and 1350 shaft 1350 Flange 2in pilot 4.25in bolt circle

California residents: Proposition 65 Warning
Questions & Answers
PRODUCT REVIEWS
Dan
Reviewed 02/01/2025
Great quality. Would recommend. I'm building a 1994 ford ranger with a 302 4x4 had a great deal of trouble finding a manual transfer case that would fit up to a AOD transmission. This kit checked most all the boxes so I pulled the trigger and bought it. When I received it I opened it right away the parts are of great quality made with standards in mind. If the parts break I'll be very surprised. But that being said if you aren't breaking it you aren't having fun and the name of the game is FUN. Thanks for making some sweet parts and staying in the USA 🇺🇸

Clayton Murphy
Reviewed 01/30/2021
Impressed with the quick delivery and precision
