Extreme Duty Dana 20 Transfer Case Output System, 66-77 Ford Bronco SKU: 8272

Extreme Duty Dana 20 Transfer Case Output System, 66-77 Ford Bronco

Extreme Duty Dana 20 Transfer Case Output System, 66-77 Ford Bronco

Purchase Extreme Duty Dana 20 Transfer Case Output System, 66-77 Ford Bronco
$459.99 SKU: 8272

Fits 66-77 Ford Bronco
3 Reviews

Product Overview:

Upgrade your Dana 20 transfer case from mild to trail-tough. With this Extreme Output System, you can confidently run larger tires, more power, and rugged terrain knowing your transfer case is backed by a 32-spline shaft built to take the punishment. Simple install. Serious results.

Full description

Upgrade your Dana 20 transfer case from mild to trail-tough. With this Extreme Output System, you can confidently run larger tires, more power, and rugged terrain knowing your transfer case is backed by a 32-spline shaft built to take the punishment. Simple install. Serious results.

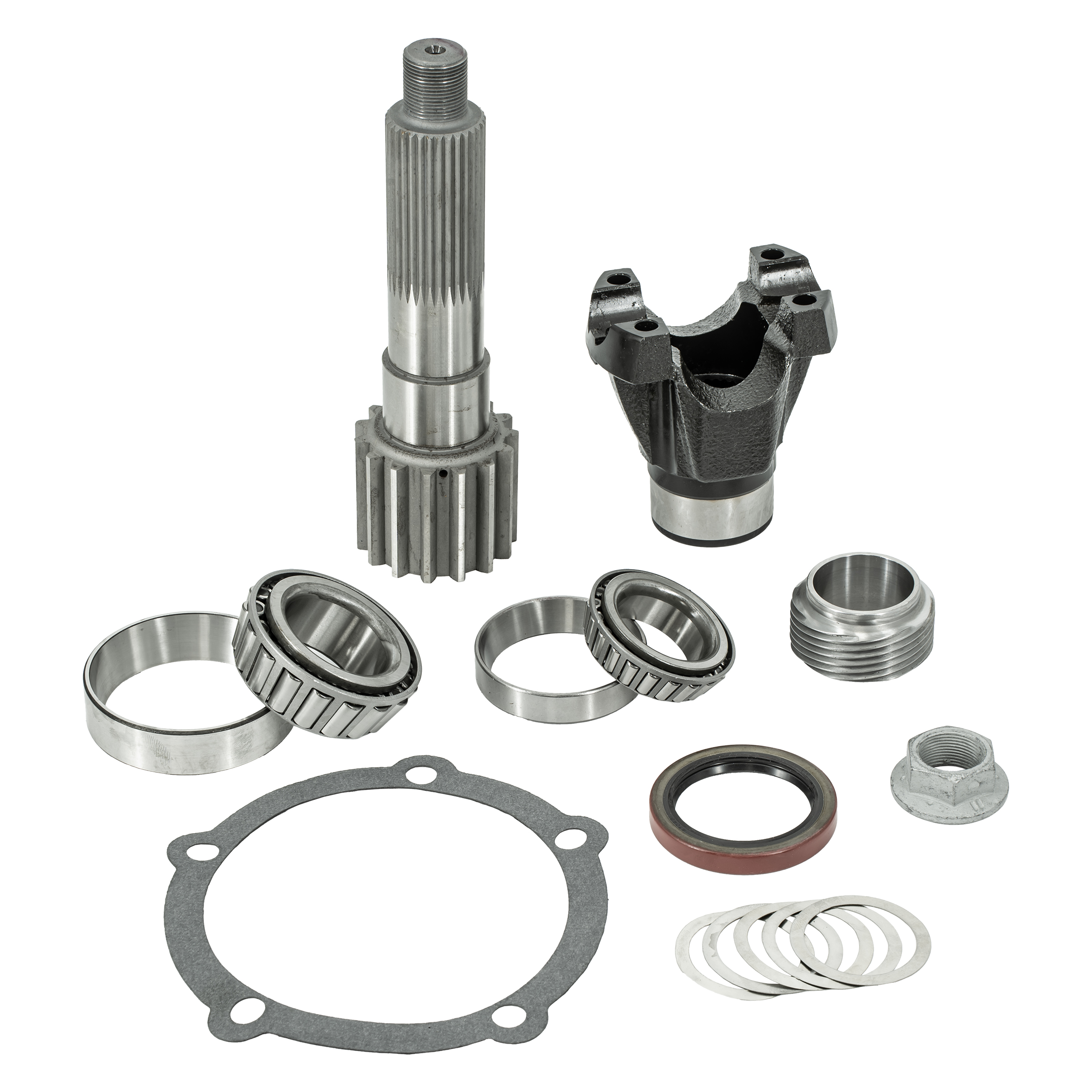

Early Bronco Dana 20 Transfer Case Extreme Output System

One of the biggest weak links in your Early Bronco’s drivetrain is the stock Dana 20 output shaft. After years of wear, heat cycling, and hard trail abuse, that original 10-spline shaft just can’t keep up with the demands of modern builds running big tires and serious power. That’s where the Extreme Dana 20 Transfer Case Output System comes in.

This upgrade replaces the factory shaft with a massive 32-spline, 25% larger diameter output shaft—delivering a strength increase of over 50% compared to stock. All components are designed to fit inside the factory Dana 20 housing, with no modifications required. Installation is straightforward and can be completed in a single afternoon with basic tools.


  • Major Strength Upgrade: 32-spline output shaft is 25% larger and 50% stronger than stock

  • Factory Housing Fitment: Drops into the stock Dana 20 housing with no modifications needed

  • Simple Installation: Can be installed in one afternoon—detailed instructions included

  • Minimal Driveshaft Impact: Output is ¾" longer than stock—may require driveshaft adjustment in rare cases

  • Includes CV Yoke: Comes with 1310 CV yoke (other yoke options available—see #8280 for assembled system)

  • Trail-Tested Durability: Ideal for rigs running larger tires, upgraded axles, and more torque


Stop worrying about your Early Bronco Dana 20 transfer case output shaft and hit the trail hard with the Extreme Output Kit - a rock-solid upgrade for your rig.

pdf-file

Instruction 1

Review Extreme Duty Dana 20 Transfer Case Output System, 66-77 Ford Bronco

California residents: Proposition 65 Warning
Questions & Answers
PRODUCT REVIEWS
Bradley Fitzgerald
Reviewed 09/05/2024
Broke my output shaft at Bronco takeover silver lake michigan. Bought this one to replace it. Looks much stronger and was a breeze to setup and install. I did have to shorten my driveshaft approximately two inches so plan ahead for that to reduce downtime.

Greg Schlechter
Reviewed 04/23/2019
This is a nice kit that came with clear instructions and everything I needed. I have some experience rebuilding the D20 previously so it was super easy to swap out the parts and get it all re-installed. I like the fact that it re-used my old housing and didn't excessively lengthen the output shaft. Nice to have a cheaper option than the $600+ complete assembly from other vendors.

ross taylor
Reviewed 04/04/2017
very nice kit came package real well and on time.
