XD Adjustable Track Bar w/Bushings - 4140 Chromoly, 66-77 Ford Bronco SKU: 1231

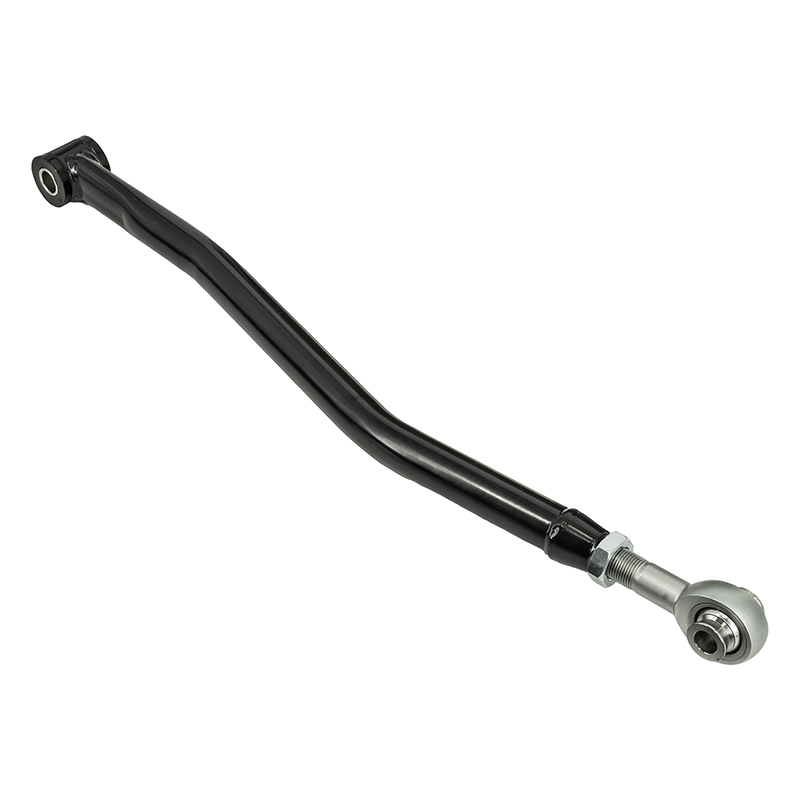

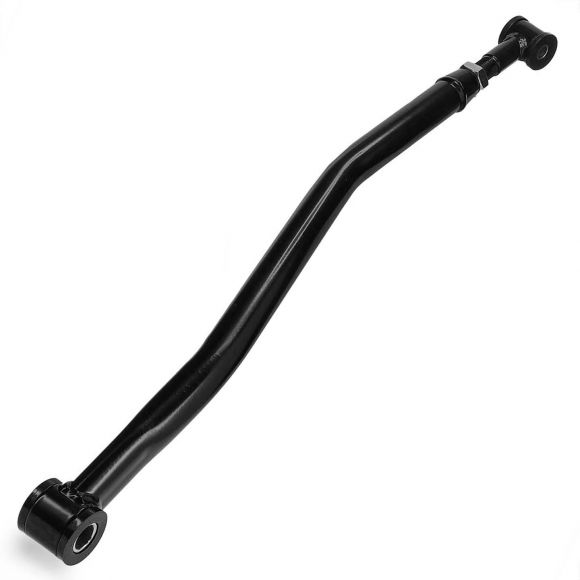

XD Adjustable Track Bar w/Bushings - 4140 Chromoly, 66-77 Ford Bronco
Product Overview:
Our early Bronco adjustable track bar will adjust from 27.5" to 29.5", allowing you to dial-in the perfect front end centering for your 66-77 Ford Bronco. Installing a suspension lift on an early Bronco pulls the front end off-center toward the driver side which can result in handling issues. An adjustable early Bronco track bar often in conjunction with a track bar drop bracket or riser bracket will allow you to re-center the Bronco's front end.

Full description
Early Bronco Adjustable Track Bar
Our early Bronco adjustable track bar will adjust from 27.5" to 29.5", allowing you to dial-in the perfect front end centering for your 66-77 Ford Bronco. When installing a suspension lift on an early Bronco, the track bar is lifted on the chassis side while the differential side stays put. This pulls the front end off-center toward the driver side which can result in handling issues. An adjustable early Bronco track bar often in conjunction with a track bar drop bracket or riser bracket will allow you to re-center the Bronco's front end.The track bar drop bracket or riser bracket will get you where you need to be most of the time but it does not allow fine tuning of the front end under the frame. Fine tuning can be necessary because of different front bumpers, winches and engine conversions that make for slightly varying lift heights from one Bronco to the next. With lifts over 3 1/2" we recommend installing it in conjunction with a track bar drop bracket or track bar riser. Our 4140 DOM chromoly adjustable track bar comes powder coated black and includes urethane bushings. Always repair egged out upper track bar bolt holes. The correct size bolt for 66-75 Bronco is 9/16" and for 76-77 Broncos use 5/8".
Fitment: 1966–77 Ford Bronco
Material: 4140 DOM Chromoly Steel – for unmatched strength and durability
Adjustment Range: 27.5" to 29.5" for perfect front-end centering after a lift
Lower Bushing: Includes durable urethane bushing and DOM sleeve
Upper End: Features full length XD Rod End with high misalingment spacers
Thread Size: 7/8" fine thread – stronger and more precise than standard bars
Design Features:
Tapered tube increases weld surface area
Built to outperform thinner mild steel alternatives
Allows fine adjustment for varying lift setups or drivetrain modifications
