4 inch Flex-Master Lift Kit w/Bilstein Shocks, 78-79 Bronco SKU: 790003NET

4 inch Flex-Master Lift Kit w/Bilstein Shocks, 78-79 Bronco

4 inch Flex-Master Lift Kit w/Bilstein Shocks, 78-79 Bronco

4 inch Flex-Master Lift Kit w/Bilstein Shocks 78-79 Bronco
Purchase 4 inch Flex-Master Lift Kit w/Bilstein Shocks, 78-79 Bronco
$1,347.38 SKU: 790003NET
1 Reviews
INFORMATION WE NEED:

Product Overview:

Our Flex-Master Suspension System with a 4" Lift was designed for strength and flexibility. This is achieved by the progressive design of the Flex-Master leaf springs and the Rock Crawler all terrain coil springs.

Full description

Our Flex-Master Suspension System with a 4" Lift was designed for strength and flexibility. This is achieved by the progressive design of the Flex-Master leaf springs and the Rock Crawler all terrain coil springs.

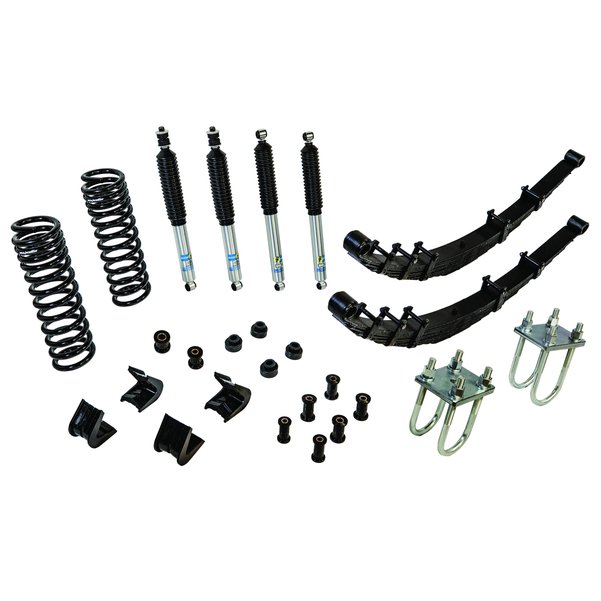

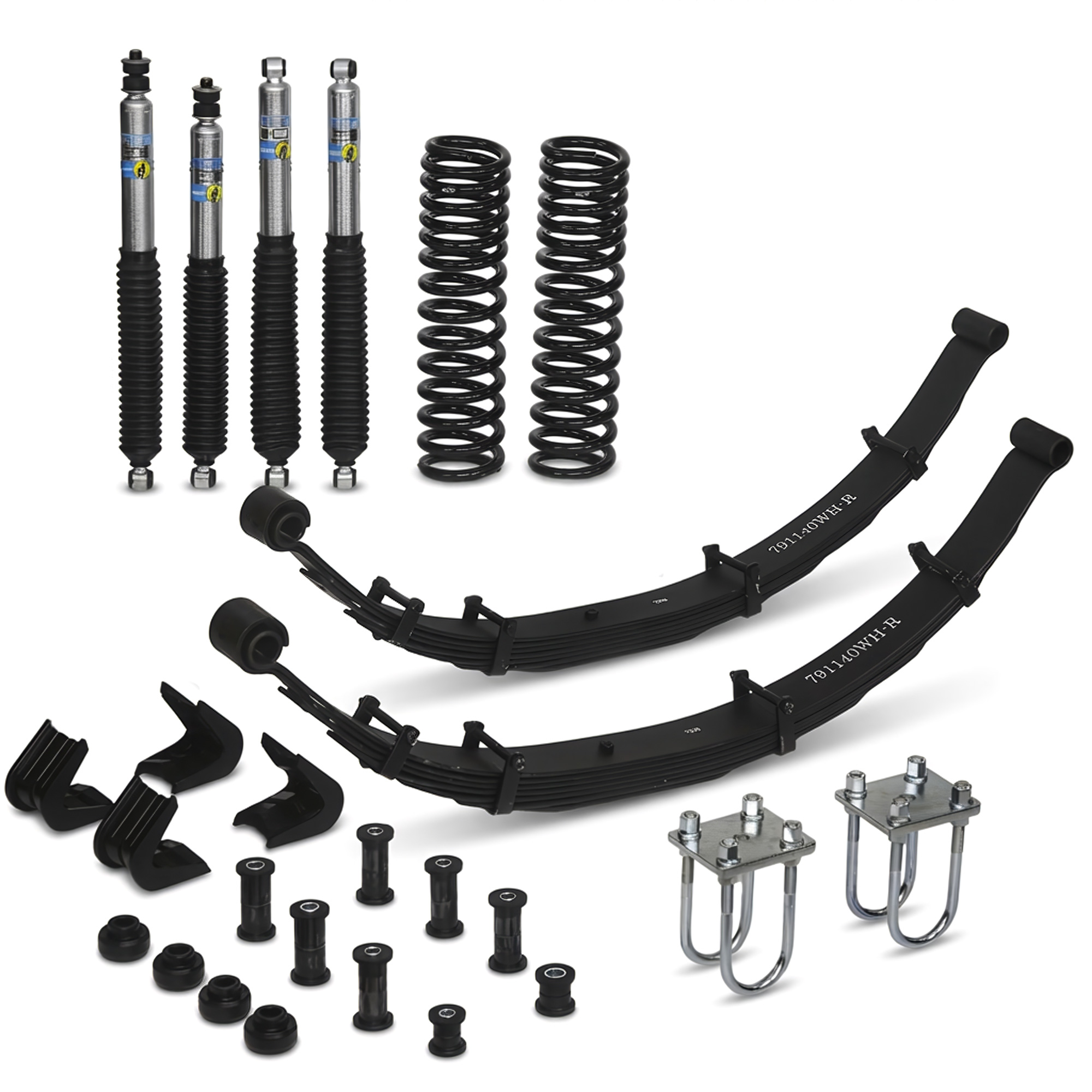

Flex-Master 4 inch Suspension System for 78-79 Full Size Ford Broncos. System includes our Flex-Master 4" Leaf Springs, Rock Crawler 4" Coil Springs, Urethane Spring & Shackle Bushings, Urethane Strut/Radius Arm Bushings, Trac Bar Bushing, C Bushings, Bilstein shocks, shock boots, and the Regular U-Bolt Kit. You can upgrade to the Extreme U-Bolt Kit (as shown in picture) for only $59.85 more!
Review 4 inch Flex-Master Lift Kit w/Bilstein Shocks, 78-79 Bronco

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


Asked by Anonymous, September 8, 2022

Q: What degree are the C Bushings?

1 Answer

Answered by sales - September 9, 2022

A: The kit comes standard with 7 degree C bushings.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Garrett Miller, April 7, 2022

Q: What are the part number for the rear and front shocks as I would like to buy them separate from the lift. Thanks!

1 Answer

Answered by sales - April 7, 2022

A: The rear shocks are #Bil88011. The front uses 2 different shocks, one mounted in front of the coil, #Bil88121, and one behind the coil, #Bil88120. If you have a 4 shock Bronco, you can double up the front shock #'s.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Shane, January 15, 2022

Q: Do you sell the rear shocks? I see the separate spring kit but no shocks with it. Thanks

1 Answer

Answered by sales - January 17, 2022

A: Sure, the rear shock we use with this kit is Bil88011.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Tom, March 12, 2021

Q: Do you sell just the leaf springs? I already have your front springs and the other items.

1 Answer

Answered by sales - March 15, 2021

A: Sure, #791140 springs only, and #791130 for the springs with bushings and u-bolt kit.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Jeff, May 13, 2020

Q: I see a lot of kits come with Urethan joints. Are there also rubber substitutes? I believe they take a good bit a vibration out. What is the benefit of the Urethan.

1 Answer

Answered by sales - May 14, 2020

A: We do not offer complete rubber kits. Some specialty bushings are not readily available, and Urethane tends to last longer.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Rob Tharp, March 24, 2020

Q: Is this Bilstein kit available in a quad shock arrangement? If so, what other part numbers would be needed? Thank you

1 Answer

Answered by sales - March 24, 2020

A: We do not currently offer a quad shock option. Either you, or we could add the additional 2 shocks at the time of order. 1 each, BIL88121, and 1 each BIL88120 additional to this kit.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Joshua Howe, February 4, 2020

Q: On the 4 inch leaf springs will they attach to the stock housing?

1 Answer

Answered by sales - February 4, 2020

A: Yes, the new leaf packs will sit on the stock housing perches. Slight clearancing on the stock spring wedge is necessary with the new larger center pins.

Know the answer? Add it here.

Know the answer? Add it here.

PRODUCT REVIEWS
Jeff Smith
Reviewed 04/07/2021
'78 with 460, E4OD, 203/205 Doubler. Spring rates are well matched to the Bilstein shocks. Ride comfort is exceptional...think modern truck. What I like most is how the system soaks up the small bumps...progressive rate is the way to go. Only downside is the urethane bushings...my shackles squeak really bad at the frame mount and I used lots of the supplied grease.
