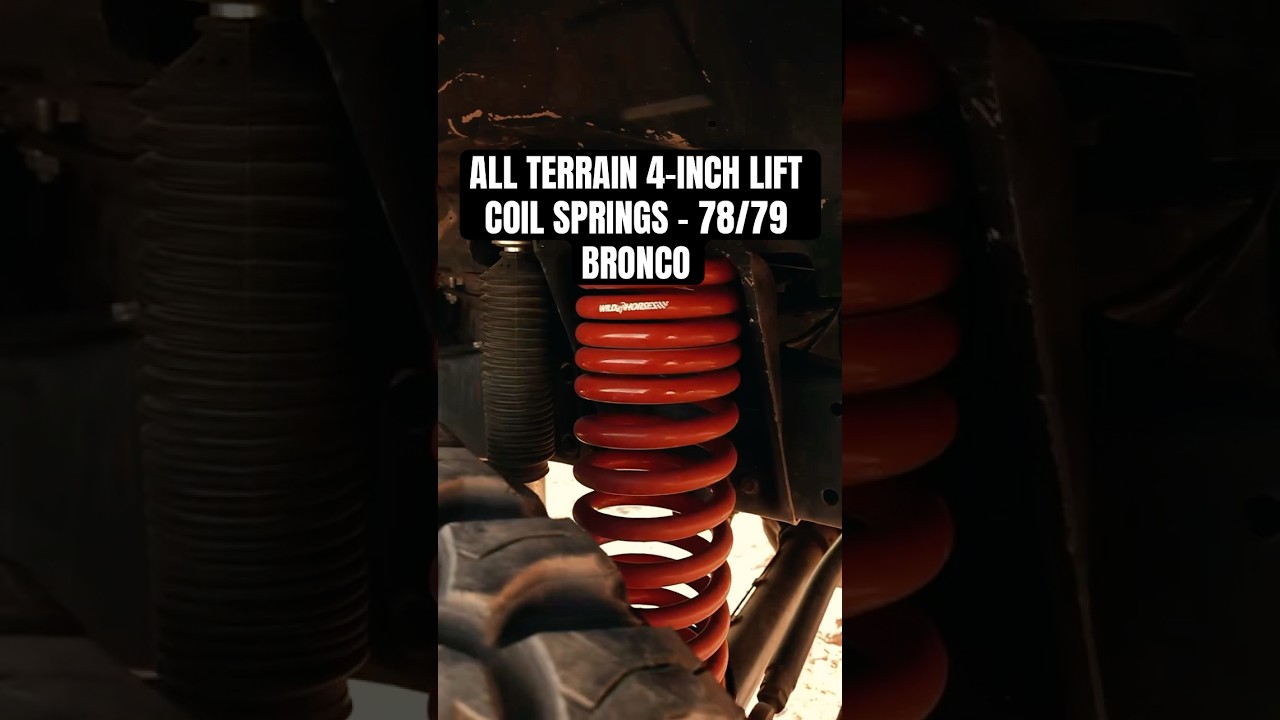

All Terrain 4-inch Lift Coil Springs, 78-79 Ford Bronco, 66-79 Ford F150 4x4 SKU: 791005
All Terrain 4-inch Lift Coil Springs, 78-79 Ford Bronco, 66-79 Ford F150 4x4
All Terrain 4-inch Lift Coil Springs 78-79 Bronco 66-79 F150 4x4
Product Overview:
The WH all terrain Rock Crawler coils tackle everything from the extreme conditions found in racing the Mexican 1000 to the boulder strewn trails from coast to coast and they are well suited to get you to the mall and back in your daily driver. The all terrain Rock Crawlers are built by design to be the perfect balance of comfort and durability. They have established a proven track record in both the on and off-road environments.
Full description
The WH all terrain Rock Crawler coils tackle everything from the extreme conditions found in racing the Mexican 1000 to the boulder strewn trails from coast to coast and they are well suited to get you to the mall and back in your daily driver. The all terrain Rock Crawlers are built by design to be the perfect balance of comfort and durability. They have established a proven track record in both the on and off-road environments.
WH All Terrain Coil Springs are designed to give your 78-79 full size Bronco 4 inches of lift. Will also fit 66-79 Ford F100 and F150 trucks.
When rock crawling was beginning to grow in popularity, most of the Bronco coil springs on the market where a linear rate design with very heavy spring rates. The bar size was so large that the springs barely fit the coil cups. What you had was a stiff, non-flexible coil with a ride that would jar the fillings out of your teeth. It became obvious to us that we needed something different, so we designed and developed the ground breaking Rock Crawler coil line. At that time, the Rock Crawlers were the softest coil you could buy for the EB. These days you can get coils so soft that you can't hardly go around a street corner without body roll that makes your Bronco resemble a boat in the water. In contrast, the Rock Crawler coils are completely compatible with daily driving and off-road terrain from coast to coast. Since their introduction, we have received overwhelming positive feedback from Rock Crawler users. The 4" Rock Crawler coils are available in Red, Blue, and Black.
When rock crawling was beginning to grow in popularity, most of the Bronco coil springs on the market where a linear rate design with very heavy spring rates. The bar size was so large that the springs barely fit the coil cups. What you had was a stiff, non-flexible coil with a ride that would jar the fillings out of your teeth. It became obvious to us that we needed something different, so we designed and developed the ground breaking Rock Crawler coil line. At that time, the Rock Crawlers were the softest coil you could buy for the EB. These days you can get coils so soft that you can't hardly go around a street corner without body roll that makes your Bronco resemble a boat in the water. In contrast, the Rock Crawler coils are completely compatible with daily driving and off-road terrain from coast to coast. Since their introduction, we have received overwhelming positive feedback from Rock Crawler users. The 4" Rock Crawler coils are available in Red, Blue, and Black.
Instruction 1
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Travis Stirek, January 31, 2024
Q: Is the price per pair or per spring?
⮞ 1 Answer
Answered by ☆ sales - February 5, 2024
A: Our coil springs are sold as a pair.
Asked by Sid, April 18, 2023
Q: Need 10+ inches of lift for my Bronco swamp buggy (1975). Can't afford the new coil over shocks, so want to use regular coils and then a 4-link. Do you sell them with that much lift?
⮞ 1 Answer
Answered by ☆ sales - April 20, 2023
A: We do not have anything taller than the 4 lift coil springs for the full size and 5 1/2 for the 66-77 Broncos.
Asked by Chris, February 6, 2022
Q: What's the O.D. On these springs.
⮞ 1 Answer
Answered by ☆ sales - February 7, 2022
A: The coil spring o.d. is approximately 5.436.
Asked by Anonymous, May 14, 2021
Q: Do you have front coil springs for a 1980 Bronco.
⮞ 1 Answer
Answered by ☆ sales - May 14, 2021
A: No, we currently do not offer any springs designed for 1980 or newer Broncos.
Asked by Tracen, July 13, 2020
Q: Working on swapping a 1978 f250 to coil springs. Currently has a 460 big block. Looking for great ride and flexy springs for my typical off-road truck and came across these. Just wondering if my vehicle weight would be an Issue.
⮞ 0 Answers
Asked by Anonymous, June 26, 2020
Q: Hello trying to find out the ID of your coils thanks
⮞ 1 Answer
Answered by ☆ sales - June 26, 2020
A: The i.d. is approximately 4, +/- 1/16.
Asked by Dorwin, September 20, 2016
Q: Do any early Bronco coil springs fit a 79 Bronco?
Thanks!!!
⮞ 1 Answer
Answered by ☆ sales - September 23, 2016
A: The early Bronco springs will fit. The 5 1/2 early springs give the 78-79 Bronco a 4 lift.
Asked by Lucas, August 23, 2016
Q: What is the difference between this spring and the early bronco 5.5 spring (p/n 1005)? Seems the length as well as the rate are the same. Trying to decide which to use in a small block buggy project. Thanks!
⮞ 1 Answer
Answered by ☆ sales - August 23, 2016
A: The 781005 and the 1005 are the same spring. The first rate is 236, 2nd rate is 375.
Asked by Anthony, September 21, 2015
Q: What is the spring rate of this coil? and if possible the overall free weight length and under weight lengths of a normal big block regular cab longbed half ton? no worries on the lengths but the spring rate would be great to know, thank you
⮞ 1 Answer
Answered by ☆ sales - September 21, 2015
A: 1st rate is 236, 2nd rate is 375+/- 10%. Free height is 21.5 and load height is 17.5 w/ 945 lb. load.
