Wiper Switch Kit | Switch, Bezel, Nut & Knob | 69-77 Ford Bronco SKU: 6320

Complete Early Bronco Wiper Switch Kit | 1969-77 Ford Bronco

A faulty or worn wiper switch can turn bad weather into a real problem in your 1969-77 Ford Bronco. This complete wiper switch kit is designed to make replacement simple, giving you everything needed to restore proper wiper control and dependable operation without tracking down individual parts.

Built with OEM-quality reproduction components, this kit fits and functions like the original factory setup. Whether you’re fixing an intermittent switch or refreshing an aging interior, this all-in-one kit ensures your wipers are ready when the weather turns.

• Complete Replacement Kit: Includes all components needed to replace the full wiper switch assembly

• OEM-Quality Switch: Reproduction switch designed for proper fit and reliable operation

• Chrome Bezel & Nut: Restores the factory-style look on the dash

• Correct Control Knob: Matches original Early Bronco wiper switch styling

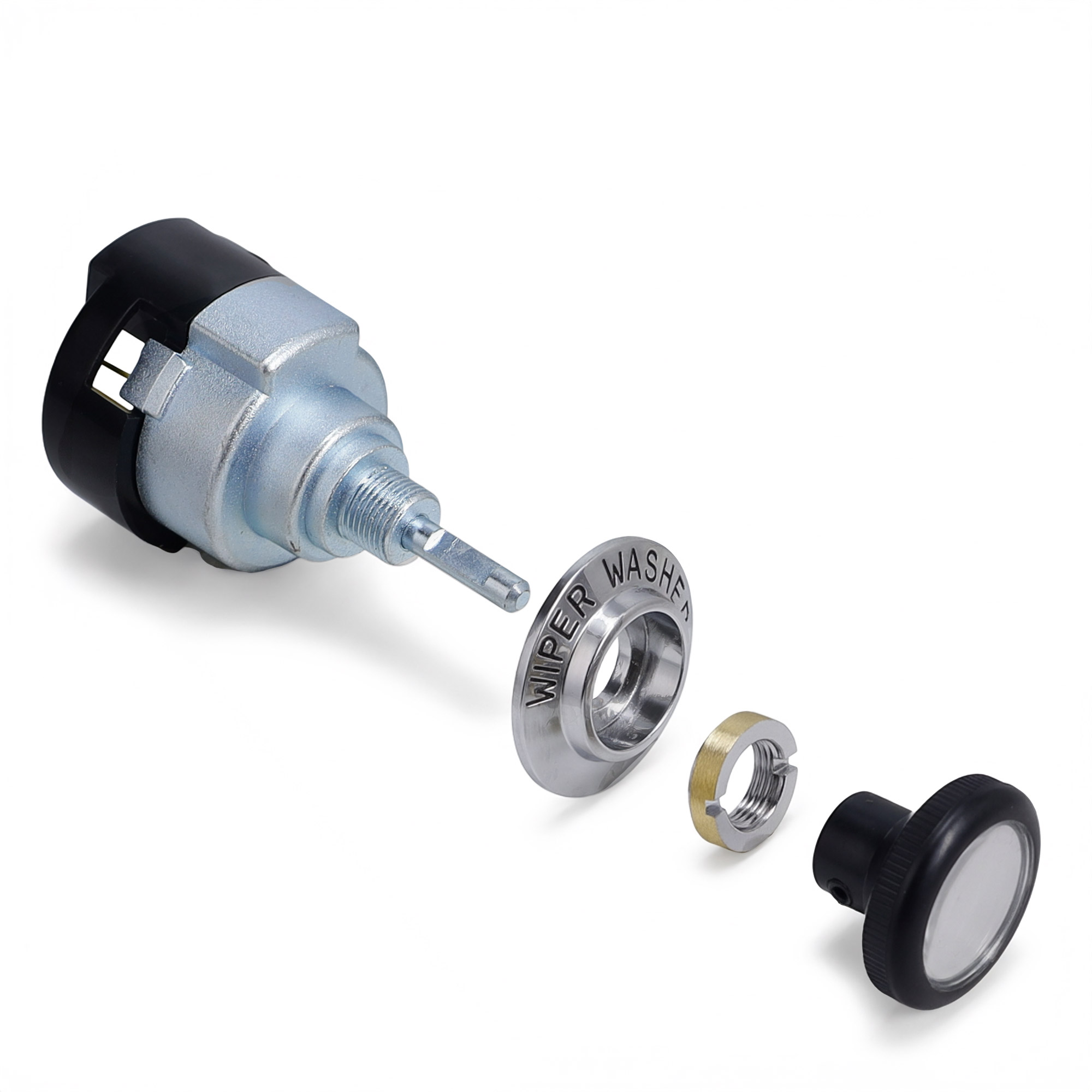

Kit Includes:

• Stock Early Bronco Wiper Switch - Two-speed (High/Low), Direct fit into factory wiper switch wiring plug

• Chrome Wiper Switch Bezel - Select 69-72 Bronco for WIPER WASHER imprint, 73-77 Bronco for No Imprint

• Chrome Wiper Switch Bezel Nut

• Wiper Switch Control Knob

Restore reliable wiper control and OE-style operation with a complete wiper switch kit for your 69-77 Ford Bronco, and be ready for whatever the weather brings.

Early Bronco & Classic Ford Truck Wiper Switch Wiring Schematic

Early Bronco & Classic Ford Truck Windshield Wiper Switch Wiring Schematic

Continuity test data for 1969-77 Ford Bronco & 1968-72 Ford F-Series Truck

Use this wiring schematic to verify continuity and troubleshoot your Classic Ford Truck or Early Bronco windshield wiper switch wiring. This chart is intended for testing the factory wiper switch with the connector unplugged and a multimeter set to continuity or ohms, allowing you to confirm proper switch function before chasing wiring issues or replacing parts. It’s especially useful on original or aged harnesses where wire colors may have faded or been repaired over the years, helping you determine whether the issue is in the switch itself or elsewhere in the wiper or washer circuit.

Switch Positions and Continuity Between Terminals

With the switch unplugged, use a multimeter in continuity mode and confirm terminal-to-terminal continuity matches the chart below. This is the quickest way to confirm switch function before you start replacing parts.

Switch Position	Continuity Between Terminals
Off (Park)	763 – 63; 58 - 615
Low	763 - 63 - 58
High	763 – 63 – 56
Washer On	941 – 950

Wiper Switch Wire Colors and Terminal IDs

Match each terminal ID to its wire color before testing. If your harness has been repaired over the years, confirm by function (power-in, park power, low/high outputs) instead of color alone.

Terminal ID	Wire Color	Circuit Function
763	Orange/White	Power In
63	Red	Park Power
58	White	Low Speed
56	Blue	High Speed
615	Black	Park Circuit Power
941	Black/Green	Washer Squirter
950	Black	Wiper Power In

Quick Notes for Clean Diagnostics

• Test at the switch first: If the switch continuity is correct, move downstream to the motor/washer circuits.
• Confirm grounds: Weak/dirty grounds can mimic bad switches in both Early Bronco and classic Ford Truck wiring.
• Park issues: If the wipers won’t park, focus on the Park Power (63) and Park Circuit Power (615) paths.

Early Bronco Wiper Motor Wiring Schematic

Early Bronco Wiper Motor Wiring Schematic

Below is a schematic showing the factory wiring continuity for the Early Bronco Wiper Motor assembly (1969-77) as indicated by Ford.
