Wilwood Dynapro 4R 12.19" Rear Disc Brakes, 66-75 Ford Bronco, Sm Bearing SKU: 140-13320N

Wilwood Dynapro 4R 12.19" Rear Disc Brakes, 66-75 Ford Bronco, Sm Bearing

Wilwood Dynapro 4R 12.19" Rear Disc Brakes, 66-75 Ford Bronco, Sm Bearing

Wilwood Dynapro 4R 12.19" Rear Disc Brakes 66-75 Bronco Sm Bearing
Free Shipping!
Purchase Wilwood Dynapro 4R 12.19" Rear Disc Brakes, 66-75 Ford Bronco, Sm Bearing
$1,140.93 SKU: 140-13320N
Fits 66-75 Ford Bronco
0 Reviews
Caliper Color:
Rotor Type:

Product Overview:

The Wilwood DynaPro Lug Pro-Series rear disc kits provide a complete solution for Bronco 65-75 rear axles with Small Ford flange and bearing.

Requires minimum 15 inch wheel diameter. Not all 15" wheels will fit. Consult the Wheel Clearance Diagram in additional images to confirm fitment before purchasing.

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

The Wilwood DynaPro Lug Pro-Series rear disc kits provide a complete solution for Bronco 65-75 rear axles with Small Ford flange and bearing.

Requires minimum 15 inch wheel diameter. Not all 15" wheels will fit. Consult the Wheel Clearance Diagram in additional images to confirm fitment before purchasing.

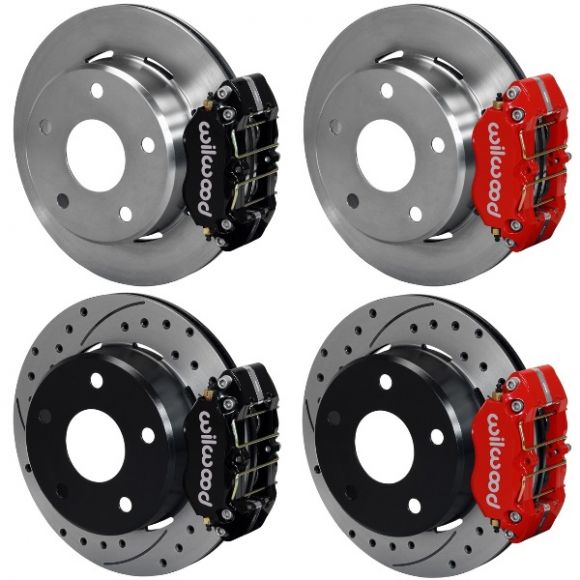

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-75 rear axles with Small Ford flange and bearing. (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW.) Forged Billet Dynapro four piston calipers, 12.19" one-piece lug mount drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for the Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking brake. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. Wilwood Dynapro Lug Mount Rear Parking Brake Kit.

    Specifications
  • Fits Ford Bronco 1966-1973 2700 Lbs Axle, 10" inch Drum Brakes
  • Fits Ford Bronco 1974-1975 2900 Lbs Axle, 10" inch Drum Brakes
  • Pistons: 4
  • Rotor Diameter: 12.19
  • Caliper Mount: Lug
  • Wheel Diameter: 15
  • Flange: Small Ford
  • Axle Offset: 2.36
Note: These kits fit SMALL BEARING ONLY. The easiest way to confirm what you have is to measure the OD of the bearing. 2 7/8" is small bearing.

Note: Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately.

Note: Kit may not fit all 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



pdf-file

Instruction 1
